Description

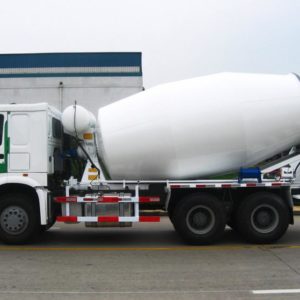

High performance high power ZZ1257N3841W concrete mixer truck factory
Now we have 10 units 6×4 tractor truck and dump truck ready for shipment, which were produced in 2015, price is very good.
High performance high power ZZ1257N3841W concrete mixer truck factory
Product specification:
| Model | Driving type | Engine output | Drum volume M3 | ||
| ZZ1257N3841W | 6X4 | 336hp | 10 | ||
| MAIN SPECIFICATIONS | |||||
| Model | ZZ1257N3841W | Steering | ZF8098 | ||
| Engine | chinese Brand | Gross Vehicle Weight | 25000kg | ||
| WD615.69 | Kerb Weight | 10580kg | |||
| Maximum Output | 336HP | Tyres | 12.00R20(Radial) | ||
| Rated engine power (KW/r/min) |
247/2200 | Reducer | TOPUNION P68 | ||
| Pump | Italy ARK PV089 | ||||
| Transmission | HW15710(10forward,2reverse) | Motor | Italy ARK MF090 | ||
| Front Axle | HF9 | Geometric volume M3 | 16.85 | ||
| Max.loading:9000kg | Agitating capacity | 10 | |||
| Rear Axle | HC16 Ratio:5.73 | Discharging remain ration |
<0.2 | ||
| Max.loading:16000kg | |||||
| Cab | singer bed | Maximum Speed | 75 km/h | ||
| Air-condition | Drum Slope(°) | 11 | |||
| Overall Dimension(mm) | 8560*2496*3048 | ||||
Main parameters:
| Product model | Drive mode | Total weight(kg) | Wheelbase(mm) | Mixing volume(m3)
|
| ZZ531* | 8*4 | 31000 | 3200~3600 | 8~22 |
| ZZ525* | 6*4 | 25000 | 3200~4300 | 6~14 |
| ZZ525* | 6*2 | 25000 | 3200~4300 | 6~14 |
| 5160
5110 5090 |
4*2 | 9290~16000 | 3400~3800 | 3~6 |
| Vehicle series: T7H,T5G,C7H,HOWO7,J7B,J5G,D7B,M5G,Light truck | ||||
Package : In nude
Shipping:within 45 days after receiving the T/T,allowing partial shipments and transshipment.
we are doing all series of truck , including Dump truck, Tractor truck, Cargo truck, Concrete mixer and pump truck, Van truck, Semi-trailer truck, Tank truck, Dangerous goods transfer truck, Environment sanitation truck, Road maintenance truck, Fire-extinguishing truck, Aerial platform truck, Wrecker truck, Oil field truck, Vehicles for animal husbandry, Truck crane, New energy series, HIAB crane and etc.
Our company was mainly doing all construction machine spare parts, through all staff ‘effort and government`s support, We has quickly developed and expansion into overseas market.Now as a special spare parts and whole machine supplier, we have a complete set of service from before-sales to after-sales. Now our product have been sold all of the world,like Russia,India,Brazil,Southeast Asia,Africa and other countries.Warmly welcome all regular and new customers to visit our company.
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
We transport the vehicle in nude or Polish with wax before shipping.
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
