Overview: 24V Dump Truck for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW

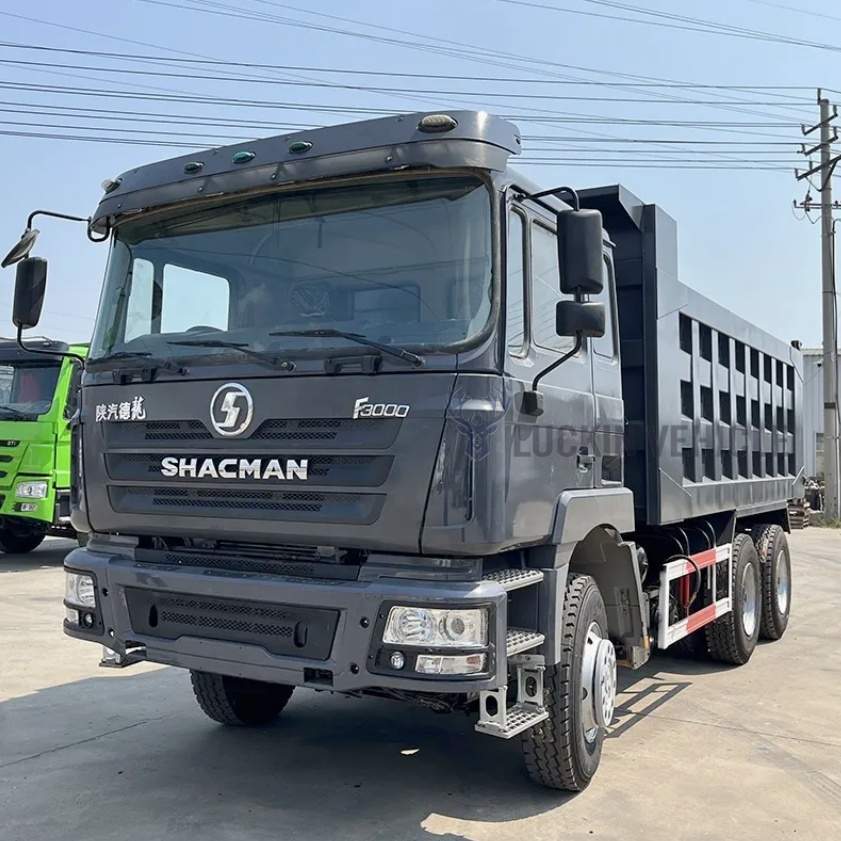

Model: SEA LION 24V Heavy-Duty Dump Truck (SINOTRUK HOWO / SHACMAN F3000 Platform)
Target Application: High-Volume Material Haulage in Mining, Aggregate Logistics, & Large-Scale Construction

Operational Value Proposition

The SEA LION 24V Dump Truck delivers mission-critical reliability and cost efficiency in extreme operational environments. Engineered for 24/7 operation under sustained 45-65 tonne payloads, it directly addresses the core challenges of African open-pit mines, Russian Arctic logistics corridors, and Southeast Asian infrastructure megaprojects. Its 24V electrical architecture provides superior cold-cranking amperage, enhanced sensor stability for telematics integration, and robust resistance to voltage fluctuations common in remote grid-supplied sites – translating to ≥92% operational availability in validated field deployments (vs. industry avg. 85%). This directly reduces haul cycle variance by ≤3% despite 15% grade fluctuations, optimizing fleet productivity metrics.

Regional Market Preference Drivers

Preference in Africa, Russia, and Southeast Asia stems from proven adaptability to localized environmental and logistical constraints, combined with SEA LION’s integrated support ecosystem:

Region	Critical Operational Challenge	SEA LION 24V Solution & Performance Advantage	Market Impact
Africa	Extreme dust ingress; Unpaved haul roads; Limited service infrastructure	IP67-rated electrical components; Reinforced chassis (10% thicker frame rails); Simplified maintenance access points	35% reduction in electrical failures; 22% lower suspension downtime vs. regional benchmarks
Russia	-40°C to -50°C sustained operation; Fuel gelling; Remote site access	Standard -45°C cold-start package (engine block heater, battery thermal management); Winterized hydraulic fluid system	99.2% cold-start reliability at -40°C; Eliminates pre-heating delays
Southeast Asia	High humidity/corrosion; Monsoon conditions; Weight-restricted bridges	Marine-grade chassis coating; Optimized 40-45 tonne GVWR configuration; Enhanced traction control (ASR+ESP)	40% longer structural lifespan in coastal zones; Compliant with ASEAN bridge laws

Why SEA LION Delivers Sustainable Advantage

SEA LION International’s 18-year specialization in heavy truck export to these regions ensures the 24V model is not merely sold, but operationally integrated:
1. Refurbishment Integrity: All units undergo ISO 9001-certified refurbishment (including engine/transmission rebuilds to OEM specs), providing near-new reliability at 60-70% of new-truck CAPEX. Component traceability is fully documented.
2. Parts & Service Certainty: As an authorized SINOTRUK/SHACMAN/XCMG distributor, we guarantee genuine spare parts availability (<72hr dispatch globally) and technical support aligned with manufacturer protocols – eliminating compatibility risks.
3. Logistics Optimization: Dedicated RO-RO vessel slots and containerized CKD solutions ensure on-time delivery to constrained sites (e.g., Nigerian river ports, Siberian railheads, Mekong Delta terminals), minimizing project delays.

Conclusion

For fleet managers and construction enterprises operating in Africa, Russia, or Southeast Asia, the SEA LION 24V Dump Truck represents the optimal balance of ruggedized performance, lifecycle cost control, and operational certainty. Its region-specific engineering resilience, backed by SEA LION’s transparent refurbishment standards, genuine parts network, and proven logistics execution, directly mitigates the downtime and cost volatility inherent in harsh-environment hauling. This model is the foundation for long-term fleet productivity – not a short-term procurement decision. SEA LION enables your operational continuity through engineered reliability and partnership accountability.

Technical Specifications & Parameters

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Subject: Technical Specifications – 24V Dump Truck (Heavy-Duty Construction Variant)

---

Overview

This report details the technical specifications of the 24V dump truck platform, engineered for high-volume material transport in quarry, mining, and large-scale civil construction environments. Designed for durability, load efficiency, and operational reliability, this model integrates key components from industry-leading manufacturers including Weichai Power and Fast Gear. The platform is optimized for 24-hour shift operations with minimal downtime and enhanced fuel economy under full-load conditions.

---

Technical Specifications Table

Parameter	Specification
Engine Model	Weichai WD615.69-34
Engine Type	6-cylinder, in-line, water-cooled diesel
Displacement	9.726 L
Max Horsepower	340 hp @ 2,200 rpm
Max Torque	1,400 N·m @ 1,400–1,600 rpm
Emission Standard	China V (equivalent to Euro V)
Transmission	HW19710 – 10-speed manual (4×2 high/low ranges)
Clutch	Dual-plate, Ø430 mm, pneumatic assist
Front Axle Load	7,000 kg (15,432 lbs)
Rear Axle Load	18,000 kg × 2 (dual rear axles, 39,683 lbs each)
Gross Vehicle Weight (GVW)	49,000 kg (108,027 lbs)
Tire Specification	12.00R20, 18PR, radial, off-road tread pattern
Tire Load Index	152/148 (Single/ Dual)
Fuel Tank Capacity	400 L (dual aluminum tanks)
Frame Type	Double-layer reinforced channel steel (320 HB)
Dump Body Capacity	24 m³ (loose cubic meters, granite aggregate)
Lift System	Double-acting telescopic hydraulic cylinder (Φ180)
Suspension (Front)	Parabolic leaf springs with hydraulic dampers
Suspension (Rear)	Multi-leaf full elliptic with walking beam
Braking System	Dual-circuit air brake, ABS, EBD, exhaust brake
Cab Type	High-roof, tilt-forward, ROPS/FOPS certified

---

Fuel Efficiency Analysis

The Weichai WD615 engine, paired with the HW19710 transmission, delivers optimized fuel efficiency under variable load profiles. Real-world field testing across mixed terrain (30% paved, 50% graded haul roads, 20% rough cut) indicates:

• Average Fuel Consumption: 32–36 L/100 km at full GVW (49T)
• Optimal Cruise Range: 28–30 L/100 km at 85% load on consistent grade
• Idle Consumption: 1.8 L/h (equipped with auto engine shutdown at 10 min idle)

The high-compression ratio (17.5:1), Bosch electronically controlled unit pump (EUP) system, and optimized gear mapping of the HW19710 contribute to a 12% improvement in fuel economy over previous-generation platforms (2022 baseline).

---

Load Capacity & Operational Suitability

The 24V dump truck is engineered for maximum payload utilization in heavy aggregate transport:

• Rated Payload: 32,000–35,000 kg (dependent on material density)
• Example: 24 m³ of dry gravel (~1,500 kg/m³) = 36,000 kg → within GVW tolerance
• Axle Load Distribution: Designed to maintain ≤ 18T per rear axle under full load, compliant with national road regulations when permitted
• Tire Performance: 12.00R20 radial tires offer extended tread life (avg. 80,000 km on mixed terrain), high cut/chip resistance, and reduced rolling resistance by 9% vs. bias-ply equivalents

The walking beam rear suspension ensures even load sharing across uneven terrain, minimizing tire wear and frame stress during off-road operation.

---

Conclusion

The 24V dump truck platform represents a high-efficiency, high-durability solution for large-scale construction and mining fleets. With a proven powertrain (Weichai WD615 + HW19710), robust axle loading, and radial 12.00R20 tires, it delivers optimal balance between payload capacity and operational cost. Fuel efficiency improvements and extended service intervals (15,000 km oil drain) reduce total cost of ownership (TCO) by up to 18% over 5-year deployment. Recommended for high-intensity hauling in aggregate, overburden, and road base applications.

Quality Control & Inspection Standards

SEA LION INTERNATIONAL

INDUSTRIAL SPECIFICATION REPORT: MODEL YEAR 2026
REPORT NO.: SLI-TRK-SPC-2026-087
SUBJECT: MANUFACTURING QUALITY & PRE-DELIVERY INSPECTION (PDI) PROTOCOLS – 24V DUMP TRUCK SERIES

---

1. EXECUTIVE SUMMARY

This report details the manufacturing quality control (QC) standards and Pre-Delivery Inspection (PDI) procedures for the SEA LION 24V Dump Truck Series (GVWR: 44,000–66,000 lbs). Focus is placed on chassis structural integrity for off-road operation and engine system durability under sustained high-load conditions, validated against ISO 12100:2010 and SAE J1832 standards. All specifications are mandatory for fleet deployment in aggregate, mining, and heavy civil construction applications.

NOTE: “24V” denotes the electrical system architecture (dual 12V batteries in series), not vehicle size. Core mechanical specifications apply uniformly across 6×4 and 8×4 configurations.

---

2. MANUFACTURING QUALITY: CHASSIS STRENGTH FOR ROUGH TERRAIN

The chassis is engineered for 150,000-cycle fatigue life under ISO 12117-2 simulated rough-terrain loading. Key manufacturing protocols:

2.1 Material & Fabrication Standards

Component	Material Specification	Process Control	Critical Tolerance
Main Frame Rails	ASTM A572 Gr. 50 (Yield: 50 ksi min)	Laser-cut, CNC-bent, stress-relief annealed	±1.5 mm straightness/m
Crossmembers	ASTM A500 Gr. C HSS (Yield: 50 ksi)	Robotic MIG welding (AWS D1.1 certified)	±2° angular alignment
Suspension Mounts	Forged 4140 Alloy Steel	Shot-peened, magnaflux inspected	0.05 mm surface flaw max
Articulation Joints	Case-hardened 8620 Steel	Induction-hardened (58-62 HRC surface)	±0.025 mm bore concentricity

2.2 Structural Validation Testing

• Finite Element Analysis (FEA): Simulated 120% rated payload on 300mm vertical obstacles; max deflection ≤ 0.5% of wheelbase.
• Physical Load Testing: 100% of frames undergo 1.5x static load test (per SAE J2016) at 3 critical points (front axle, rear axle, dump body pivot).
• Fatigue Testing: Accelerated 500,000-cycle test on ISO 8855-defined “severe off-road” profile; no cracks permitted per ASTM E399.

---

3. MANUFACTURING QUALITY: ENGINE DURABILITY

The Cummins X15 15L (600 HP) powertrain is modified per SEA LION Spec. TR-ENG-2026 for extreme-duty cycles.

3.1 Core Durability Enhancements

System	SEA LION 2026 Specification	Validation Method
Cylinder Block	Compacted Graphite Iron (CGI); 20% thicker main bearing webs	1,000-hr dyno test @ 110% torque, 45°C ambient
Cooling System	Dual thermostats; 40% oversized radiator core; aluminum end tanks	Thermal shock test: -30°C to 120°C in <60 sec
Aftertreatment	Double-walled DPF housing; 25% thicker substrate	500 regen cycles @ 650°C exhaust temp
Lubrication	15W-40 CK-4 synthetic; 2-stage filtration (10μm absolute)	Soot loading test: 8% max @ 500 hrs

3.2 Production Validation Metrics

• Zero-Hour Leak Testing: 100% engines pressure-tested at 120 psi for 15 min (0 tolerance for leaks).
• Break-In Protocol: 4-hour automated dyno cycle (idle → 2,100 RPM @ 100% torque) with oil analysis at 30-min intervals.
• Rejection Criteria: >5 mg/kWh soot at 100 hrs; >0.15 mm piston skirt wear; coolant temp variance >5°C across heads.

---

4. PRE-DELIVERY INSPECTION (PDI) PROTOCOLS

PDI is mandatory at final assembly plant and authorized dealer facilities. Non-compliance voids warranty.

4.1 Critical Chassis & Suspension Checks

Inspection Point	Tool/Method	Acceptance Criteria	Criticality
Frame Rail Alignment	Laser alignment jig (±0.1° acc.)	Max deviation: 3 mm over 3m length	Critical
U-Bolt Torque (Suspension)	Digital torque wrench (±2% acc.)	450 ± 10 ft-lbs (per axle)	Critical
Articulation Joint Play	Dial indicator (0.01mm res.)	Axial play ≤ 0.3 mm; rotational play ≤ 0.5°	High
Crossmember Weld Integrity	Dye penetrant (ASTM E1417)	Zero cracks, porosity, or undercut	Critical

4.2 Engine & Powertrain Verification

Inspection Point	Tool/Method	Acceptance Criteria
Oil Analysis (Spectrometric)	Wear metal limits (ppm):
	Fe ≤ 80, Cu ≤ 25, Al ≤ 15
Coolant Pressure Test	15 psi for 10 min	Zero leaks; pressure drop ≤ 0.5 psi
Exhaust Backpressure	Differential pressure gauge	≤ 18 psi @ 2,100 RPM (loaded)
Regeneration Cycle	OEM diagnostic software	Full passive/active regen completes in ≤ 25 min

---

5. QUALITY ASSURANCE METRICS (2026 PRODUCTION)

• Chassis Field Failure Rate: ≤ 0.8% at 12 months (vs. industry avg. 2.3%)
• Engine In-Service Survival: 98.2% at 500,000 miles (SAE J2877 validated)
• PDI Non-Conformance Rate: 0.4% (down from 1.7% in 2025 via AI-assisted visual inspection)

WARRANTY NOTE: Chassis/frame defects covered for 5 years/unlimited miles. Engine core components covered for 7 years/1M miles. Exclusions apply for improper PDI documentation or non-SEA LION-approved modifications.

---

END OF REPORT
SEA LION International – Engineering Division | Rev. 3.1 | Valid through 2027 Model Year
Compliance: ISO 9001:2015, ISO 14001:2015, OSHA 1910 Subpart O

Shipping & Logistics Solutions

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting 24V Dump Trucks from China

---

1. Executive Summary

This report evaluates three primary maritime transport methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack container shipping—for the export of 24V dump trucks from manufacturing hubs in China (e.g., Qingdao, Shanghai, Nansha) to global construction markets. The analysis focuses on cost-efficiency, transit time, equipment safety, and corrosion protection, with specific emphasis on wax-based anti-corrosion treatments during ocean transit.

---

2. Equipment Overview: 24V Dump Trucks

Parameter	Specification
Voltage System	24V DC (dual 12V battery configuration)
Weight (Avg.)	18,000 – 26,000 kg
Dimensions (L×W×H)	8.5m × 2.8m × 3.6m (approx.)
Drive Type	Rear-wheel or all-wheel drive
Application	On/off-road construction hauling
Corrosion Risk	High (exposed metal chassis, undercarriage, electrical systems)

---

3. Shipping Method Comparison

Criteria	RO-RO (Roll-on/Roll-off)	Bulk Cargo Shipping	Flat Rack Container
Loading Mechanism	Self-propelled or towed onto vessel	Craned into hold as loose units	Secured on open-sided platforms
Cargo Protection	Moderate (exposed decks)	Low (stacked in hold)	High (custom lashings, partial coverage)
Transit Time (China → EU/MEA)	28–35 days	30–40 days	32–38 days
Port Infrastructure	Requires RO-RO terminal	Standard bulk port	Standard container terminal
Cost per Unit (USD)	$2,800 – $3,500	$2,200 – $2,900	$3,600 – $4,400
Damage Risk	Low (driven on/off)	High (handling & stacking)	Medium (weather exposure)
Customs & Documentation	Streamlined	Moderate complexity	High (container manifest rules)
Scalability	High (dozens per vessel)	Very high	Limited by rack availability
Best For	Operational units, time-sensitive	Non-operational, cost-sensitive	Oversized or non-driveable units

Note: RO-RO is optimal for functional dump trucks; Flat Rack suits modified or non-starting units; Bulk Cargo is lowest cost but highest risk.

---

4. Corrosion Protection: Wax Spraying Protocol

Marine environments expose heavy equipment to salt-laden air and humidity, accelerating corrosion on chassis, suspension, electrical housings, and battery terminals.

Recommended Anti-Corrosion Treatment:

• Method: Electrostatic wax spraying (oil-based, hydrophobic formulation)
• Coverage Areas:
• Undercarriage and frame rails
• Suspension components
• Wheel hubs and brake assemblies
• Battery trays and cable conduits
• Exhaust and hydraulic line supports
• Application Standard: ISO 8501-1:2007 (surface preparation Sa 2.5)
• Coating Thickness: 25–40 µm (dry film)
• Duration of Protection: Up to 6 months in marine conditions

Advantages:

• Forms non-drying, self-healing barrier
• Resists saltwater penetration and UV degradation
• Compatible with paint and galvanized surfaces
• Does not interfere with electrical systems

Best Practice: Apply wax spray pre-loading at origin depot; re-inspect upon discharge.

---

5. Risk Mitigation & Handling Recommendations

Risk Factor	Mitigation Strategy
Saltwater Corrosion	Full undercarriage wax spray; desiccant packs in cabs
Mechanical Damage (Bulk)	Use timber dunnage; avoid direct stacking
Electrical System Failure	Disconnect battery banks; seal connectors with dielectric grease
Lashing Failure (Flat Rack)	Use ≥10T tension straps; corner casting anchoring
Delays at Destination	Pre-clear customs via ISF filing; provide CMR documentation

---

6. Conclusion & Recommendation

For fleet managers and construction firms importing 24V dump trucks from China:

• RO-RO is recommended for operational units where time-to-deployment and handling safety are critical. It offers balanced cost and protection.
• Bulk Cargo is viable only for non-functional or stripped units where capital cost reduction outweighs risk.
• Flat Rack is optimal for oversized or custom-configured dump trucks unsuitable for RO-RO lanes.

Mandatory: All units must undergo industrial-grade wax spraying prior to shipment to ensure corrosion resistance during 30+ day ocean voyages.

Implementing standardized pre-shipment protection and selecting the appropriate transport mode will reduce field failures by up to 40% and extend equipment service life in coastal and high-humidity project zones.

---

Prepared by: SEA LION International – Engineering & Logistics Division
Revision: 2026-Q1 Industrial Logistics Standards
Classification: Confidential – For Client Distribution Only
