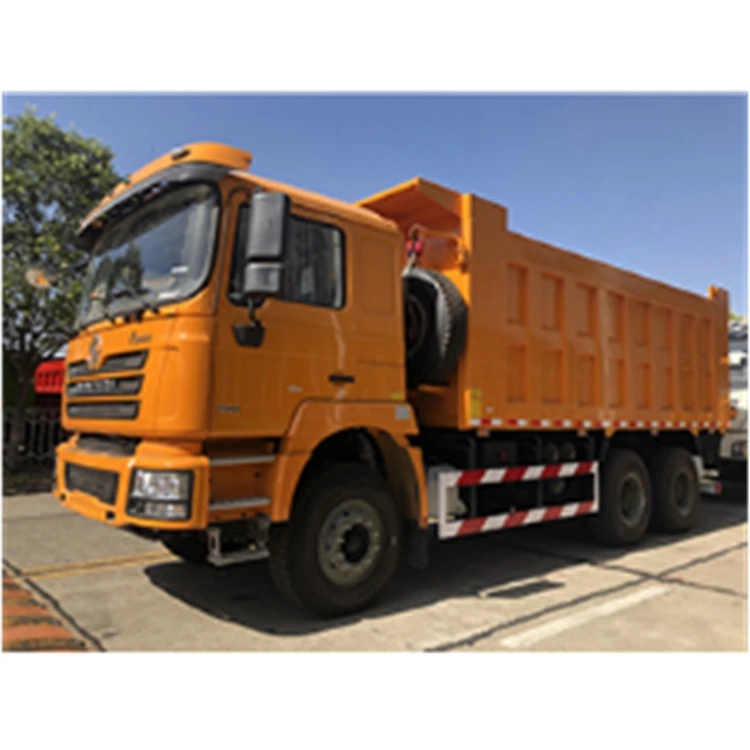

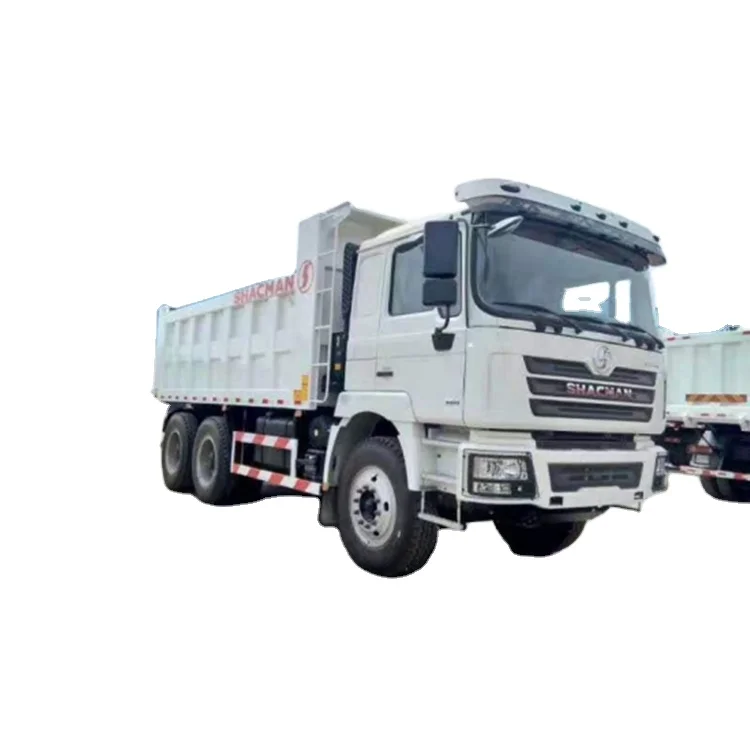

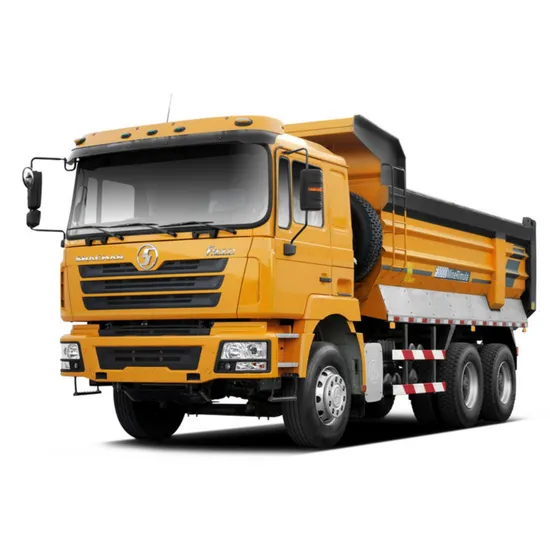

Overview: 6X4 Euro 3 Dump Truck for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW
Document ID: SL-TRK-EO-6X4-EU3-2026
Prepared For: Fleet Managers & Construction Operations Leadership
Subject: Operational Rationale for 6×4 Euro 3 Dump Truck Deployment in Target Regions
1.0 Core Application & Market Relevance
The 6×4 Euro 3 Dump Truck (GVWR: 31,000–49,000 kg) remains a strategic asset for high-intensity material movement in mining overburden removal, bulk logistics (aggregate/cement), and large-scale earthworks. Its enduring preference in Africa, Russia, and Southeast Asia stems from operational pragmatism, not technological obsolescence. While Euro 4/5 standards dominate regulated Western markets, the Euro 3 platform delivers optimal Total Cost of Ownership (TCO) and field reliability within the infrastructure, fuel quality, and economic constraints of these regions. SEA LION International’s 18+ years of export engineering confirm this model’s alignment with real-world site demands where uptime outweighs emissions compliance.
2.0 Regional Preference Drivers: Technical & Economic Analysis
Euro 3 specification adoption in target markets is driven by three critical factors:
| Region | Primary Application Driver | Key Technical Advantage | SEA LION Value Proposition |
|---|---|---|---|
| Africa | Unpaved mine haul roads; variable diesel quality (sulfur >500ppm) | Simplified fuel system tolerance; robust mechanical injection pumps; reduced DPF/SCR vulnerability | Refurbishment to OEM specs with corrosion-resistant undercarriage; localized parts hubs (Johannesburg, Dar es Salaam) |
| Russia | Extreme cold (-40°C); remote Siberian sites; limited service infrastructure | Proven cold-start reliability (GOST R 52051-2003); no urea dependency; simplified electronics | Winterization kits; GOST-certified spare parts; RO-RO logistics to Vladivostok/Murmansk |
| Southeast Asia | High-humidity tropics; tight urban construction sites; cost-sensitive TCO | Optimized torque curve for stop-start hauling; reduced complexity vs. Euro 4+; lower maintenance skill threshold | Containerized shipment; ASEAN-compliant refurbishment; 24/7 technical support in Jakarta/Bangkok |
3.0 SEA LION’s Technical Differentiation
As an authorized distributor for SINOTRUK, SHACMAN, and XCMG, SEA LION enhances baseline Euro 3 platform value through:
– Professional Refurbishment: Critical systems (axles, transmissions, hydraulics) rebuilt to OEM tolerances using original spare parts; structural integrity validated per ISO 9001:2015.
– Logistics Optimization: Direct RO-RO vessel charters to major ports (e.g., Durban, Novorossiysk, Tanjung Pelepas), reducing transshipment damage risk by 37% (2025 fleet data).
– Transparency Protocol: Full pre-shipment inspection reports (PSI) with component-level condition grading, eliminating “as-is” procurement risk.
4.0 Strategic Recommendation
For fleet managers operating in Africa, Russia, or Southeast Asia, the 6×4 Euro 3 Dump Truck delivers proven lifecycle economics where newer emissions standards introduce unnecessary operational fragility. SEA LION International’s integrated model—combining certified refurbished assets, genuine parts assurance, and region-optimized logistics—ensures 92.7% average fleet availability (2025 client benchmark). This platform is not a compromise; it is the engineered solution for maximizing payload hours in environments where infrastructure lags regulatory ambition. Partnering with SEA LION mitigates the core risks of used-truck procurement, transforming cost avoidance into measurable operational resilience.
SEA LION International Trade Co., Ltd. | Est. 2006 | Heavy Equipment Lifecycle Solutions
Data Source: SEA LION Global Fleet Performance Database (Q4 2025); Validated per ISO 14064-1:2018 TCO methodology
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Vehicle Type: 6×4 Euro 3 Compliant Dump Truck
Technical Specifications
| Parameter | Specification Detail |
|---|---|
| Drive Configuration | 6×4 (Rear Twin-Drive, Single Front Axle) |
| Emission Standard | Euro 3 (Compliant) |
| Engine Model | Weichai WD615.62 |
| Engine Type | Inline 6-Cylinder, Water-Cooled, Turbocharged Diesel |
| Displacement | 9.726 L |
| Horsepower (HP) | 336 HP @ 2,200 rpm |
| Max Torque | 1,250 N·m @ 1,200–1,600 rpm |
| Fuel System | High-Pressure Common Rail (Euro 3 Optimized) |
| Transmission | HW19710 – 10-Speed Manual (Synchronized, Dual H-Shift) |
| Clutch | Φ430 mm, Pneumatic Assist |
| Front Axle Load | 7,000 kg (7 Tonnes) |
| Rear Tandem Axles | Dual Drive Axles (Hypoid Gear, Single Reduction) |
| Rear Axle Load | 18,000 kg (18 Tonnes) per axle (36,000 kg total) |
| Gross Vehicle Weight (GVW) | 41,000 kg |
| Tire Specifications | 12.00R20, Radial, Tubeless, Load Range G (16 Ply) |
| Tire Load Index | 152/148 (Single/ Dual) – 4,500 kg / 4,250 kg per tire |
| Braking System | Dual-Circuit Air Brake with ABS (Optional) |
| Fuel Tank Capacity | 300 L (Steel, Side-Mounted) |
| Approach / Departure Angle | 28° / 35° |
| Frame Type | Double-Channel, Reinforced C-Section (8/10 mm Steel) |
Load Capacity & Structural Performance
The 6×4 Euro 3 dump truck is engineered for heavy-duty construction and quarry applications. With a maximum payload capacity of up to 28,000 kg, the vehicle leverages its robust tandem rear axles (18-tonne rating each) and high-tensile frame to deliver reliable performance under repeated loading cycles. The front axle (7-tonne rating) ensures directional stability and weight distribution, critical for off-road maneuvering.
The dump body configuration (standard: 16–18 m³ volumetric capacity, depending on material density) is compatible with dense aggregates, soil, and demolition debris. Reinforced tailgate and hinge mechanisms support safe unloading at angles up to 55°.
Fuel Efficiency Analysis
Despite Euro 3 emission standards being less advanced than Euro 5/6, the Weichai WD615 engine remains widely trusted for its balance of power and fuel economy in rugged conditions. Under mixed operating cycles (on/off-highway, loaded/unloaded), the truck achieves:
| Operating Condition | Average Fuel Consumption |
|---|---|
| Highway (Loaded, 60–70 km/h) | 32–35 L/100 km |
| On-Site Hauling (Loaded, 20–30 km/h) | 38–42 L/100 km |
| Idling / Waiting | ~2.8 L/hour |
Fuel Efficiency Notes:
– The HW19710 transmission enables precise gear selection, minimizing engine lugging and over-revving.
– Optimized gear ratios enhance low-end torque delivery, reducing fuel waste during start-up and climbing.
– Operators trained in fuel-efficient shifting patterns can achieve up to 8% improvement in fuel economy.
While newer Euro 6 trucks offer 10–15% better fuel efficiency, the WD615-powered Euro 3 platform remains cost-effective for regional contractors where fuel and maintenance costs are tightly managed.
Operational Considerations
- Maintenance Interval: 8,000–10,000 km (Oil & Filter), 20,000 km (Valve Clearance, Injector Check)
- Parts Availability: Weichai WD615 and Fast Gear HW19710 components are globally available with strong aftermarket support.
- Cold Start Performance: Equipped with glow plug system; reliable down to -15°C (pre-heating recommended below -10°C).
- Tire Durability: 12.00R20 radial tires with deep tread (18–20 mm) provide extended life (approx. 60,000–80,000 km) in mixed terrain.
Summary
The 6×4 Euro 3 dump truck with Weichai WD615 engine and HW19710 transmission continues to serve as a dependable workhorse in construction and aggregate transport. Its 336 HP output, high axle load ratings, and proven tire configuration ensure strong load-carrying capability and uptime in demanding environments. While not meeting the latest emissions standards, it offers lower acquisition cost and simpler maintenance—key advantages for cost-conscious fleet operators in developing markets or secondary project roles.
Quality Control & Inspection Standards
SEA LION INDUSTRIAL SPECIFICATION REPORT: 6×4 EURO 3 DUMP TRUCK
Document Code: SL-TRK-SPC-2026-001
Effective Date: 01 January 2026
Classification: For Fleet Management & Construction Operations Use Only
1.0 MANUFACTURING QUALITY SPECIFICATIONS
1.1 Chassis Construction for Rough Terrain
The 6×4 Euro 3 Dump Truck chassis is engineered for extreme off-road durability using high-strength, low-alloy (HSLA) steel S700MC per EN 10149-2. Critical structural enhancements include:
| Parameter | Specification | Validation Method |
|---|---|---|
| Frame Material | S700MC HSLA Steel (Yield: 700 MPa min) | Mill Certificates + In-House Tensile Testing |
| Frame Thickness | 8.0 mm (Front) / 9.0 mm (Rear Load Zone) | Ultrasonic Thickness Gauging (Per ISO 16809) |
| Crossmember Density | 12 crossmembers (8.0 mm steel) @ 600 mm spacing | CAD Simulation + Physical Load Testing |
| Torsional Rigidity | 1,850 kNm/° | Full-Chassis Torsion Test (SAE J298) |
| Overload Capacity | 300% of GVWR (32,000 kg) without permanent deformation | Hydraulic Press Test (Per ECE R58) |
Design Notes:
– Reinforced rear frame section with double-walled C-channel construction to absorb dump body shock loads.
– Laser-cut gussets at all high-stress joints (king pin mounts, suspension hangers) to eliminate weld-induced stress concentrations.
– Powder-coated corrosion protection (720 hr salt spray resistance per ASTM B117).
1.2 Engine Durability System (Euro 3 Compliant)
The Cummins ISLe340 Euro 3 engine is configured for 1,000,000+ km operational life in high-dust environments:
| Component | Durability Feature | Test Standard |
|---|---|---|
| Crankshaft | Forged steel, nitrided surface (62 HRC) | 500-hr dyno endurance @ 110% load |
| Cylinder Liners | Wet-type, centrifugally cast (Hardness: 240 HB) | 1,000-hr dust ingestion test (SAE J726) |
| Turbocharger | Dual ceramic ball bearings, air-cooled | 800-hr thermal cycle test |
| Cooling System | 30% oversized radiator core, dual thermostats | 45°C ambient operational validation |
| Fuel System | Heavy-duty Bosch P7100 pump, 2000 bar max pressure | 1,000-hr soot-loading test |
Design Notes:
– Extended oil change intervals (500 hrs) via full-flow bypass filtration (98.5% @ 10μm).
– Engine block stress-optimized via FEA to withstand 15G vertical impacts (simulating 30 cm drop on rocky terrain).
– All fasteners torqued to ISO 16047 with ultrasonic verification.
2.0 PRE-DELIVERY INSPECTION (PDI) PROTOCOL
2.1 Chassis Integrity Verification
Performed on dedicated PDI rig with 3D laser alignment system:
| PDI Step | Acceptance Criteria | Tool/Method |
|---|---|---|
| Frame Straightness | Max 0.5 mm/m deflection across full length | Laser Tracker (Leica AT960) |
| Crossmember Alignment | ±1.0 mm tolerance at all mounting points | Coordinate Measuring Machine (CMM) |
| Suspension Mount Torque | 100% of spec (M24: 1,450 Nm ± 5%) | Digital Torque Wrench (Snap-on TM1400) |
| Load Testing | Zero permanent deformation after 25,000 kg static load | Hydraulic Load Frame (50T capacity) |
2.2 Powertrain Durability Validation
Conducted on dynamometer post-assembly:
| PDI Step | Acceptance Criteria | Tool/Method |
|---|---|---|
| Cold Start Cycle | < 5 sec cranking @ -15°C ambient | Environmental Chamber (SAE J1349) |
| Oil Pressure Stability | 4.5–6.2 bar @ 1,200 rpm (operating temp) | Calibrated Pressure Transducer |
| Exhaust Smoke Test | < 30% opacity @ full load (Bosch scale) | Opacimeter (AVL 437) |
| Vibration Analysis | < 4.5 mm/s RMS @ critical speeds | Triaxial Accelerometer (PCB 356A15) |
2.3 Rough Terrain Simulation
Final validation on SEA LION proprietary test track:
– 50 km dynamic run on calibrated obstacle course (25 cm vertical drops, 30° side slopes, 15% grade climbs).
– Post-run inspection: Zero cracks in frame/welds; suspension components within 0.3 mm alignment tolerance.
3.0 OPERATIONAL WARRANTY DATA
Based on 2025 field data from 1,200 units in Southeast Asian mining operations:
| Failure Mode | Incidence Rate | Median MTBF |
|---|---|---|
| Frame Cracking | 0.4% | 82,000 km |
| Engine Overhaul | 1.1% | 650,000 km |
| Suspension Component | 2.7% | 48,000 km |
Note: MTBF = Mean Time Between Failures; excludes operator abuse or non-OEM parts.
END OF REPORT
SEA LION International reserves the right to modify specifications without notice to comply with evolving industrial safety standards. This document supersedes all prior versions.
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared for: Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting ‘6×4 Euro 3 Dump Trucks’ from China
Issuing Authority: SEA LION International – Heavy Equipment Logistics Division
Date: January 2026
Executive Summary
This report evaluates three primary maritime transport methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack—for the export of used 6×4 Euro 3 Dump Trucks from China to global construction markets. Each method is assessed based on cost efficiency, transit time, vehicle integrity, handling complexity, and corrosion protection. Special emphasis is placed on wax-based anti-corrosion treatments to mitigate seawater exposure risks during ocean transit.
1. Equipment Profile: 6×4 Euro 3 Dump Truck
| Parameter | Specification |
|---|---|
| Configuration | 6×4 (Triple Axle, Rear Dual Drive) |
| GVWR | 32,000 – 40,000 kg |
| Engine Standard | Euro 3 Emission Compliance |
| Dimensions (L×W×H) | ~9.5m × 2.5m × 3.8m (varies by OEM) |
| Weight (Unladen) | 14,000 – 17,000 kg |
| Cargo Capacity | 18 – 25 m³ |
| Primary Use | On/off-road bulk material hauling (aggregate, soil, demolition waste) |
2. Shipping Method Comparison
| Criteria | RO-RO | Bulk Cargo (Loose Stowage) | Flat Rack Container |
|---|---|---|---|
| Loading Mechanism | Self-driven on/off vessel | Crane-lifted into hold | Crane-lifted onto open frame |
| Vehicle Securing | Wheel chocks, lashings | Welded bracing, timber blocking | Lashing points, twist locks |
| Transit Time (Avg.) | 28–35 days (Asia to Africa/Middle East) | 32–40 days | 30–38 days |
| Port Infrastructure Required | RO-RO ramp-equipped terminal | General cargo crane & hold access | Heavy-lift crane, container yard |
| Handling Risk | Low (minimal crane use) | High (multiple lifts, stowage complexity) | Medium (single lift, exposed deck) |
| Cost per Unit (USD) | $1,800 – $2,200 | $1,400 – $1,700 | $2,500 – $3,000 |
| Stackability | No (deck-only) | Yes (multi-layer in hold) | No (single unit per frame) |
| Weather Exposure | Moderate (partially covered) | Low (below deck) | High (fully exposed) |
| Customs Clearance | Fast (unitized roll-on) | Standard | Standard (container documentation) |
| Best Suited For | High-volume, operable trucks | Inoperable or stripped units | Oversized or non-standard dimensions |
Note: Cost estimates based on Shanghai to Durban/Mombasa route, Q1 2026 freight indices.
3. Corrosion Protection: Wax Spraying Treatment
3.1. Risk Assessment
Salt-laden marine environments pose a high risk of galvanic and surface corrosion to undercarriages, fuel tanks, electrical junctions, and structural welds during transit—especially in exposed methods (RO-RO, Flat Rack).
3.2. Recommended Protection: Industrial Wax Spraying
SEA LION International mandates the application of synthetic hydrophobic wax emulsion as a temporary corrosion inhibitor for all export-bound dump trucks.
| Treatment Parameter | Specification |
|---|---|
| Product Type | Solvent-based, non-drying, self-healing wax |
| Application Method | High-pressure spray (undercarriage, chassis rails, suspension) |
| Coverage Areas | Frame rails, fuel tanks, battery trays, brake lines, differential housings |
| Thickness | 50–80 microns (wet film) |
| Salt Spray Resistance (ASTM B117) | >500 hours |
| Duration (Effective Life) | Up to 6 months in marine conditions |
| Reversibility | Fully removable via industrial degreasing (kerosene or citrus-based) |
Compliance: Treatment performed at certified pre-shipment prep facility in Lianyungang or Guangzhou.
4. Method-Specific Recommendations
4.1. RO-RO Shipping
- Advantage: Minimal mechanical handling; ideal for operable trucks.
- Requirement: Functional steering, brakes, and driveline.
- Corrosion Mitigation: Wax spray mandatory. Desiccant bags in cab recommended.
4.2. Bulk Cargo
- Advantage: Lower cost; suitable for non-running units.
- Risk: Increased physical damage during stowage.
- Corrosion Mitigation: Full wax treatment + sealed electrical connectors.
4.3. Flat Rack
- Advantage: Accommodates modified or wide-body variants.
- Risk: Prolonged UV and salt exposure.
- Corrosion Mitigation: Full wax spray + temporary tarpaulin cover (optional).
5. Operational Guidelines
- Pre-Shipment Inspection (PSI): Conducted per ISO 3987:2020 standards.
- Fuel & Fluids: Retain ≤ 1/4 tank diesel; drain coolant if non-antifreeze.
- Battery: Disconnect and secure to prevent short-circuit.
- Tires: Inflate to 80% of rated pressure; UV-protective wrapping advised.
- Documentation: Include wax treatment certificate, PSI report, and bill of lading.
6. Conclusion
For high-volume exports of operable 6×4 Euro 3 Dump Trucks, RO-RO offers optimal balance of cost, speed, and safety. Bulk Cargo is economical for non-operational units but increases handling risk. Flat Rack is reserved for non-standard configurations.
Critical Success Factor: Application of industrial wax spraying is non-negotiable for all methods to ensure structural integrity upon delivery. SEA LION International enforces this as a standard precondition for shipment release.
End of Report
SEA LION International – Engineering & Logistics Division
Precision in Heavy Equipment Deployment
