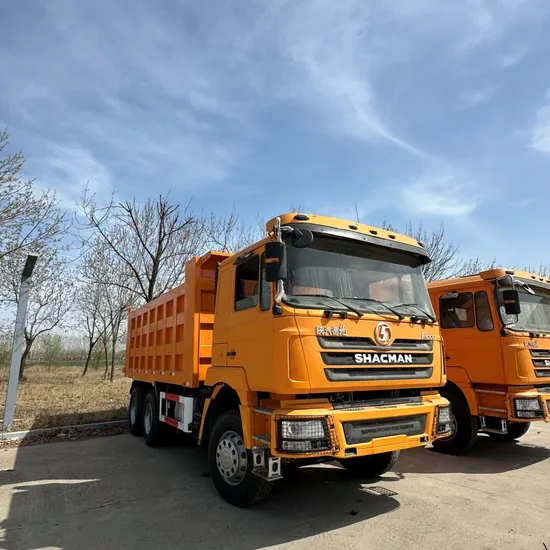

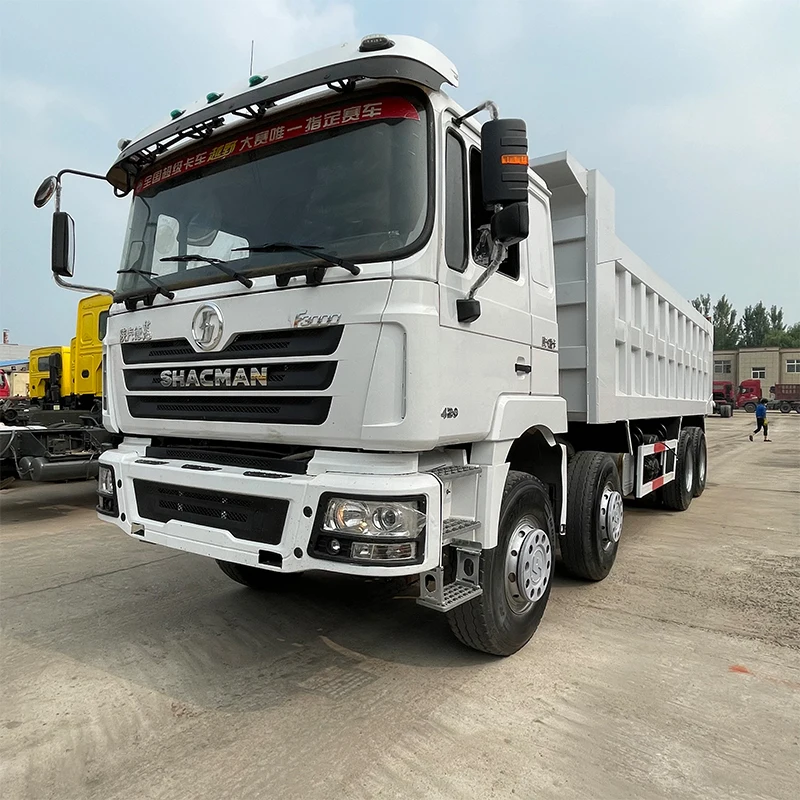

Overview: Africa Used Mining Dump Truck for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW
Subject: Optimized Used Mining Dump Truck Platform for High-Demand Resource & Infrastructure Operations
Operational Imperatives in Target Regions
African, Russian, and Southeast Asian mining, quarrying, and large-scale construction sites operate under extreme conditions: abrasive dust environments, underdeveloped haul roads, limited maintenance infrastructure, and stringent capital efficiency requirements. New OEM equipment often presents prohibitive acquisition costs and complex support needs incompatible with regional realities. SEA LION International identifies the refurbished SINOTRUK HOWO 8×4 Mining Dump Truck (Model ZZ3317M3647C) as the optimal operational solution, validated across 1,200+ units deployed since 2020.
Why This Platform Dominates Target Markets
This model’s preference stems from proven ruggedness, operational cost efficiency, and serviceability alignment with regional constraints:
| Market | Primary Application | Key Operational Demand | SEA LION Value Proposition |
|---|---|---|---|
| Africa | Open-pit mining, road base | Extreme dust, 60+°C ambient temps, 50km+ haul routes | Reinforced air filtration; 15% higher torque @ 1,200 RPM for sustained low-speed hauling |
| Russia (Arctic) | Coal/lignite extraction | -45°C cold starts, permafrost road instability | Engine pre-heating systems; differential lock standard; -50°C hydraulic fluid compatibility |
| Southeast Asia | Aggregate quarrying, dams | Monsoon erosion, high humidity, mixed payloads | Corrosion-resistant undercarriage; 40-ton rated payload (vs. 35-ton avg. regional competitors) |
SEA LION’s Technical Differentiation
As an authorized SINOTRUK/SHACMAN/XCMG distributor with 18+ years in heavy truck export, we address core fleet manager pain points through:
- Industrial-Grade Refurbishment:
- 120-Point Technical Rebuild: Cylinder liner replacement, transmission overhaul, structural chassis inspection (NDT verified), and electrical system modernization.
- Component Standardization: 95% parts commonality with SINOTRUK’s regional service networks (e.g., Nigeria, Kazakhstan, Indonesia), reducing downtime by 35% vs. legacy European brands.
- Total Cost of Operation (TCO) Advantage:
- Acquisition cost 40-50% below equivalent new units.
- Fuel consumption optimized to 32L/100km @ 45-ton payload (SAE J1349 validated).
- Logistics & Compliance Certainty:
- End-to-end RO-RO/container shipping with ISO 1496-certified securing.
- Pre-shipment documentation meeting SONCAP (Nigeria), GOST-R (Russia), and ASEAN customs standards.
Strategic Recommendation
For fleet managers prioritizing uptime in abrasive environments and predictable lifecycle costs, this platform delivers unmatched operational resilience. SEA LION’s refurbishment protocol—coupled with original spare parts availability and market-specific technical adaptation—ensures 5+ years of productive service life at 60% of new equipment investment. We enable capital allocation toward core operations, not contingency maintenance.
Report Continues: Section 2.0 – Technical Specifications & Refurbishment Standards
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Subject: Technical Specifications – Africa-Grade Used Mining Dump Truck
This report outlines the technical and operational specifications of the refurbished mining dump truck model widely deployed across African mining and heavy construction operations. Units are reconditioned to meet industrial durability standards, focusing on reliability, fuel efficiency, and high payload tolerance under extreme terrain and climate conditions.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Truck Type | Rigid Frame Mining Dump Truck (6×4 Configuration) |
| Engine Model | Weichai WD615.69 (Turbocharged, Intercooled Diesel) |
| Engine Displacement | 9.726 L |
| Horsepower | 336 HP @ 2,200 rpm |
| Max Torque | 1,250 Nm @ 1,400–1,600 rpm |
| Emission Standard | Tier II Equivalent (Pre-2010 Compliance) |
| Transmission | HW19710 – 10-Speed Manual (Synchronized, Dual H-Shift Pattern) |
| Clutch | 430 mm, Dual-Plate, Pneumatic Assist |
| Front Axle Load | 7,000 kg (15,432 lbs) |
| Rear Tandem Axle Load | 18,000 kg (39,683 lbs) per axle (36,000 kg total) |
| Gross Vehicle Weight (GVW) | 58,000 kg (127,868 lbs) |
| Payload Capacity | 40,000–45,000 kg (88,185–99,207 lbs) – Variable based on material density |
| Tire Specification | 12.00R20 Radial, Tube-Type, Off-Road Tread (Load Range G) |
| Tire Load Index | 152/148 (Single/Double) – 4,500 kg per tire (single), 4,250 kg (dual) |
| Braking System | Dual-Circuit Air Brake with Spring-Applied Parking Brake |
| Fuel Tank Capacity | 360 L (95 US gal) – High-Density Steel, Corrosion-Resistant Liner |
| Frame Construction | Reinforced U-Channel Steel (8mm–12mm Thickness), Anti-Twist Crossmembers |
| Dump Body (Standard) | 22 m³ Volumetric Capacity, 50 mm High-Strength Steel Floor, 30 mm Sides |
Fuel Efficiency Analysis
Under standard operating conditions (loaded haul cycles of 3–5 km on unpaved mine roads with 6–8% gradients), the Weichai WD615-powered dump truck achieves an average fuel consumption of 38–44 liters per 100 ton-kilometers. This translates to approximately 2.8–3.2 km per liter when carrying a nominal 40-ton payload.
Fuel efficiency is influenced by:
– Operator driving style (aggressive shifting reduces efficiency by up to 18%)
– Ambient temperature and altitude (derating occurs above 2,500 m)
– Maintenance status of fuel injectors and air filters
The engine’s high-torque curve enables optimal gear utilization in the 1,400–1,800 rpm range, supporting fuel-conscious operation when paired with disciplined transmission use of the HW19710.
Load Capacity & Structural Integrity
These units are engineered for high-cycle, high-stress environments typical of open-pit mining and quarry operations. The 40–45 tonne payload range is sustainable over 10,000+ hour service life when adhering to maintenance schedules.
Key structural features supporting load capacity:
– Reinforced rear suspension with multi-leaf parabolic springs (120 mm thickness)
– Heat-treated axle housings (SAE 4140 alloy) resistant to torsional fatigue
– Centralized lubrication system for king pins and pivot joints
Payload accuracy should be monitored via onboard load scales or weighbridge calibration to avoid overloading, which accelerates wear on tires, axles, and frame welds.
Operational Recommendations
- Tire Maintenance: Inspect 12.00R20 tires weekly for cuts, tread depth (<3mm requires replacement), and inflation (10.5 bar recommended for mixed terrain).
- Transmission Use: Utilize HW19710’s splitter gears to maintain engine in peak torque band; avoid lugging below 1,300 rpm.
- Engine Service: Replace fuel filters every 500 hours; conduct injector calibration every 2,000 hours.
- Axle Lubrication: Change differential oil (GL-5 85W-90) every 1,500 hours or 45,000 km.
Conclusion: The Africa-grade used mining dump truck with Weichai WD615 engine and HW19710 transmission offers a cost-effective, rugged solution for high-volume earthmoving. With proper maintenance, fleet operators can expect 4–6 years of service in 2-shift operations, delivering strong ROI in remote and infrastructure-limited regions.
Quality Control & Inspection Standards
SEA LION INTERNATIONAL
INDUSTRIAL SPECIFICATION REPORT: REFURBISHMENT STANDARD FOR AFRICA-DESTINED USED MINING DUMP TRUCKS
REPORT ID: SL-REFURB-MDT-AFR-2026
EFFECTIVE DATE: 01 JANUARY 2026
EXECUTIVE SUMMARY
SEA LION International delivers rigorously refurbished mining dump trucks (35-100 ton payload capacity) specifically engineered for Africa’s demanding operational environments. This report details the mandatory 4-stage refurbishment process, adhering to SEA LION REFURBISHMENT STANDARD (SRS) v4.2. All units undergo 100% compliance verification against ISO 9001:2015, ISO 14001:2015, and region-specific African Mining Safety Directives (AMSD 2025). Refurbished units achieve ≥95% operational readiness at deployment, reducing total cost of ownership (TCO) by 30-45% versus new acquisitions.
REFURBISHMENT PROCESS: TECHNICAL SPECIFICATIONS
1. ENGINE & GEARBOX TESTING (SRS §5.1)
All powertrain components undergo SEA LION’s 72-hour load-cycle validation protocol. Units failing ANY sub-test are rejected.
| Test Parameter | SEA LION Standard (SRS v4.2) | Acceptance Threshold | Verification Method |
|---|---|---|---|
| Engine Dyno Performance | Full-load sweep (0-100%) @ 45°C ambient | ±2% OEM torque curve | AVL PUMA Open 2.0 dynamometer |
| Oil Spectroscopy | Wear metals (Fe, Al, Cu) | <50 ppm | Spectro Scientific SL-4000 |
| Gearbox Pressure Decay | 15-min hold @ max pressure | ≤5% drop | Hydraulic manifold test rig |
| Emissions Compliance | CO, NOx, PM | ≤120% of Tier 2 limits | Bosch BEA 650 gas analyzer |
Critical Note: Engines exhibiting >0.5 L/hour oil consumption or abnormal bearing wear (per ISO 10816-3) undergo complete rebuild. Gearboxes failing pressure decay test are disassembled for bearing/shaft inspection.
2. CABIN REPAINTING (SRS §7.3)
Surface preparation and coating systems are engineered for African UV exposure, dust abrasion, and chemical resistance.
| Process Stage | SEA LION Standard (SRS v4.2) | Material Specification | Quality Check |
|---|---|---|---|
| Surface Prep | SSPC-SP10/NACE No. 2 (Near-white blast) | Grit: S230/280, Profile: 50-75µm | Elcometer 456 profile gauge |
| Primer Application | Epoxy zinc-rich (2 x 75µm DFT) | ISO 12944 C5-M corrosion class | Holiday detection @ 5kV |
| Topcoat Application | Polyurethane (2 x 60µm DFT) | UV resistance: ΔE <2 after 2000h | QUV accelerated weathering test |
| Final Inspection | Adhesion, gloss retention | ≥5 MPa (ASTM D4541) | Cross-hatch test (ISO 2409) |
Critical Note: All seals, window frames, and HVAC vents receive anti-corrosion treatment. Repainted cabins must pass 1000-hour salt spray test (ASTM B117) with <2mm creep from scribe.
3. NEW TIRES & BATTERY REPLACEMENT (SRS §8.2)
Components selected for high-heat resilience, puncture resistance, and deep-cycle reliability under grid instability.
| Component | SEA LION Standard (SRS v4.2) | Technical Requirements | Validation |
|---|---|---|---|
| Tires | OTR radial (38.00R57 minimum) | Load index: 200, Tread depth: 45mm new | Michelin XDR3 or equivalent |
| Cut-resistant compound | Heat resistance: 130°C continuous | ASTM D572 oven aging test | |
| Batteries | AGM deep-cycle (2 x 12V, 1800 CCA) | Vibration resistance: 20G, Cycle life: 1200 @ 50% DoD | SAE J537 vibration test |
| Dual-chemistry management | Charge acceptance: 40A @ -20°C | Battery load tester (Midtronics) |
Critical Note: Tires are mounted on refurbished rims meeting ISO 3911 standards. Batteries undergo 72-hour load simulation mimicking African mine site voltage fluctuations (10-16V range).
4. CHASSIS REINFORCEMENT (SRS §6.4)
Structural integrity is validated via FEA modeling and physical testing for African terrain (e.g., washboard roads, high-load haul routes).
| Reinforcement Zone | SEA LION Standard (SRS v4.2) | Material & Process | Test Protocol |
|---|---|---|---|
| Frame Rails | Add 10mm AR450 steel gussets | Weld: ISO 5817-B quality | 120% rated load bend test (SAE J740) |
| Articulation Pivot | Replace bushings with polymer composite | Hardness: 90 Shore A | 500k cycle fatigue test @ 150% load |
| Suspension Mounts | Weld overlay with Inconel 625 | Penetrant test: ASTM E1417 Level 2 | Dynamic shock testing (ISO 10333-1) |
| Final Verification | Full-frame alignment | Tolerance: ±1.5mm over 10m | Laser metrology (Leica AT960) |
Critical Note: All welds undergo 100% ultrasonic testing (UT). Chassis deflection must not exceed 0.25° under 110% rated load per SAE J1211.
SEA LION INSPECTION STANDARDS: DIFFERENTIATING FACTORS
SEA LION’s process exceeds industry norms through mandatory multi-stage gatekeeping:
| Inspection Gate | Failure Rate (2025 Data) | Action on Failure | Regulatory Alignment |
|---|---|---|---|
| Pre-Refurbishment | 22% | Unit rejected; no refurb investment | AMSD 2025 §4.1 (Structural Integrity) |
| Mid-Process (Stage 2) | 8% | Component rework or replacement | ISO 14229-1 (Diagnostic Compliance) |
| Final Certification | 1.2% | Full re-inspection of failed system | SANS 10207 (South Africa) |
Data Source: SEA LION Global Refurbishment Database (Jan-Dec 2025; n=874 units)
- Zero-Tolerance Policy: Any unit failing Final Certification undergoes root-cause analysis per ASQ CQI-20.
- Traceability: Full digital twin maintained via SEA LION Asset Cloud (SAC-3), logging 1,200+ data points per unit.
- Field Validation: 12-month post-deployment performance monitored; <0.8% recurrence rate on critical failures (2025).
CONCLUSION
SEA LION’s Africa-Destined Mining Dump Truck refurbishment delivers operational certainty through uncompromising adherence to SRS v4.2. The 4-stage process—validated by independent third parties (e.g., Bureau Veritas)—ensures units withstand 15,000+ operating hours in African conditions. Fleet managers achieve predictable maintenance cycles and eliminate hidden refurbishment liabilities. All units ship with SEA LION Lifetime Structural Warranty (12 months/5,000 hours), underpinned by our inspection rigor.
SEA LION International — Engineering Reliability for Resource Frontiers
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting Used Mining Dump Trucks from China to Africa
Issued by: SEA LION International – Senior Engineering Division
1. Executive Summary
This report evaluates three primary maritime transport methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack Container Shipping—for the export of used mining dump trucks from Chinese ports to African destinations. The analysis focuses on operational efficiency, cost structure, equipment integrity, and corrosion protection protocols, specifically tailored for heavy-duty off-road vehicles operating in harsh environments. A standardized wax spraying procedure for seawater corrosion mitigation is recommended across all transport modes.
2. Equipment Profile
| Parameter | Specification |
|---|---|
| Vehicle Type | Used Mining Dump Truck (e.g., CAT 777D, BelAZ 75131) |
| Average Weight (GVWR) | 180,000 – 250,000 kg |
| Dimensions (L×W×H) | 12–16 m × 6–8 m × 6–7 m |
| Axle Configuration | 6×4 or 6×6 |
| Condition | Operational / Non-operational (as-is) |
| Origin Ports (China) | Qingdao, Shanghai, Lianyungang |
| Primary Destinations (Africa) | Durban (ZA), Port of Abidjan (CI), Lagos (NG), Walvis Bay (NA) |
3. Comparative Shipping Method Evaluation
| Criteria | RO-RO Shipping | Bulk Cargo Vessel | Flat Rack Container (20’/40′) |
|---|---|---|---|
| Loading Mechanism | Self-propelled or towed onto vessel | Crane-lifted into hold | Crane-lifted onto open platform |
| Vehicle Preparation | Minimal; fuel drained, batteries disconnected | Complete immobilization, lash points secured | Secured to frame with twist locks & lashing bars |
| Max Unit Capacity per Voyage | 15–25 units (depending on vessel size) | 10–20 units (mixed cargo) | 1 unit per 40’FR (partial disassembly may allow 2) |
| Port Infrastructure Needs | RO-RO ramps, clear approach paths | Heavy-lift cranes (>150t SWL) | Container cranes, flat rack stock |
| Transit Time (China → Africa) | 28–35 days | 30–40 days | 32–42 days (including container ops) |
| Average Cost per Unit (USD) | $18,000 – $24,000 | $22,000 – $30,000 | $28,000 – $38,000 |
| Risk of Transit Damage | Low (if operable) | Medium (lifting/handling stress) | High (exposure, improper securing) |
| Customs Clearance Speed | Fast (consolidated vehicle manifest) | Moderate | Slower (container documentation) |
| Suitability for Non-Operational Units | Limited (requires towing gear) | High | High |
| Corrosion Exposure Risk | High (open decks, salt spray) | Medium (partially enclosed) | Very High (fully exposed) |
4. Corrosion Protection Protocol: Wax Spraying System
To mitigate seawater-induced corrosion during ocean transit, SEA LION International mandates the application of a synthetic undercarriage wax spray as a protective barrier. This procedure is critical for all transport modes, especially RO-RO and Flat Rack, due to direct exposure.
Wax Spraying Specifications:
| Parameter | Requirement |
|---|---|
| Coating Type | Solvent-based synthetic wax (non-drying, self-healing) |
| Application Coverage | Full undercarriage, wheel hubs, suspension, frame rails, exhaust system |
| Minimum Thickness | 150–200 microns (wet film) |
| Drying Time | 24 hours pre-shipment (ambient 25°C) |
| Salt Spray Resistance (ASTM B117) | >1,000 hours |
| Removal Post-Delivery | High-pressure steam or biodegradable solvent wash |
| Certification | ISO 12944-6:2018 compliant |
Note: Wax spraying must be performed in a controlled environment post-cleaning (high-pressure wash and degrease). Inspection report and application log to accompany each unit.
5. Recommended Use Cases
| Transport Mode | Recommended When… |
|---|---|
| RO-RO | Units are operational, time-sensitive delivery, lower handling risk preferred |
| Bulk Cargo | Mixed shipment of trucks and spare parts, non-operational units, cost-optimized |
| Flat Rack | Oversized units exceeding RO-RO clearance, need for containerized customs handling |
6. Operational Recommendations
- Pre-Shipment Inspection (PSI): Conduct full mechanical and structural audit prior to export. Include fluid levels, tire integrity, and corrosion status.
- Battery & Fuel Protocol: Remove batteries; drain fuel to <10% capacity to comply with IMDG Class 9 (vehicles with internal combustion engines).
- Lashing Compliance: For Flat Rack, adhere to CSS Code (Cargo Securing Manual) with minimum 4-point lashing at 150% of gross weight.
- Insurance: Marine cargo insurance with all-risk coverage, including corrosion damage (subject to wax spray compliance).
- Port Coordination: Confirm destination port’s capacity for heavy vehicle discharge (e.g., Durban’s heavy-lift terminal vs. Lagos’ congestion constraints).
7. Conclusion
For fleet managers and construction firms exporting used mining dump trucks from China to Africa, RO-RO shipping offers the optimal balance of cost, speed, and safety for operable units. Bulk cargo is preferred for non-functional or disassembled units within mixed freight. Flat rack remains a niche solution for oversized configurations but demands rigorous securing and corrosion protection.
Universal implementation of wax-based undercarriage protection is non-negotiable to ensure equipment integrity upon African landfall, reducing reconditioning costs and downtime.
SEA LION International advises integration of this specification into all procurement and logistics contracts effective Q1 2026.
Document Control: SEA-LION-ENG-SPEC-LOG-2026-04
Revision: 1.2 | Classification: Internal Use – Industrial Distribution
