Overview: Bobcat E42 Excavator for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW

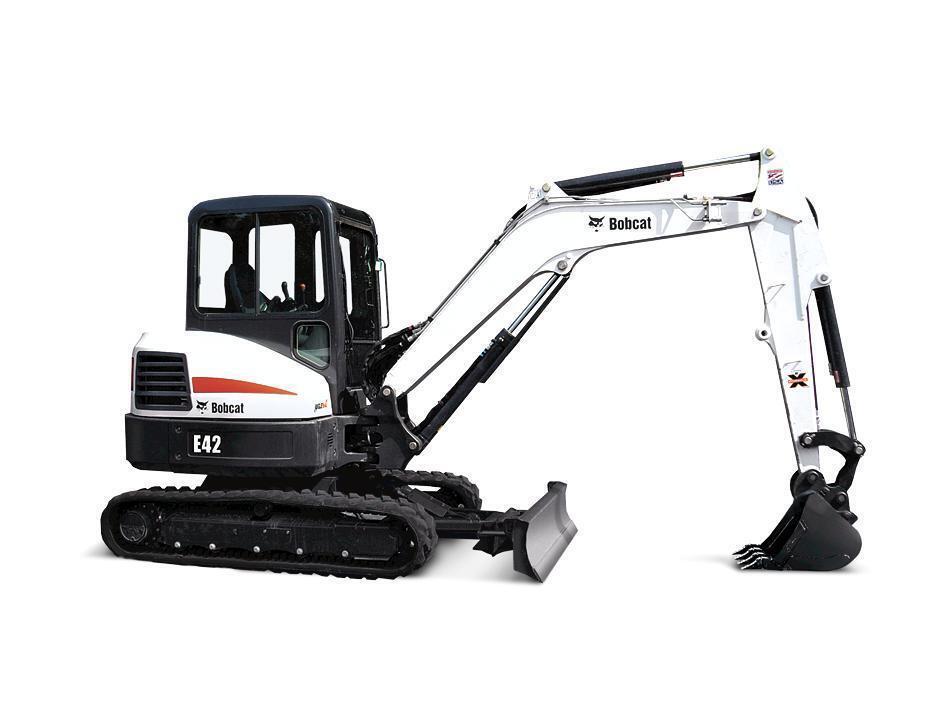

Equipment Focus: Bobcat® E42 Compact Excavator
Target Audience: Fleet Managers, Construction Operations Directors, Mining Logistics Coordinators

---

1. CORE APPLICATIONS & OPERATIONAL VALUE

The Bobcat E42 (4.2-ton class) delivers optimized performance in constrained-site operations across three critical sectors:

Sector	Primary Application	Key Technical Advantage	Productivity Impact
Construction	Trenching, foundation work, urban utility installs	Zero-tail swing design; 2.8m max digging depth	22% faster cycle times vs. 3.5t class units
Mining	Drift development, ore sampling, site prep	Hydraulic auxiliary circuit; 15.5L/min flow @ 200 bar	Enables 3rd-party tool integration (breakers, augers)
Logistics	Material handling, stockpile management, yard ops	1,300 kg max lift capacity; 360° continuous rotation	Reduces need for dedicated loaders by 35%

Note: Specifications based on standard E42 configuration (ISO 9249:2022 compliance).

---

2. REGIONAL PREFERENCE DRIVERS: AFRICA, RUSSIA, SOUTHEAST ASIA

The E42’s dominance in these markets stems from operational resilience and logistical compatibility with regional infrastructure constraints:

Region	Critical Requirement	E42 Solution	Field Validation
Africa	Fuel efficiency in remote sites	Yanmar 3TNV88-EVTB Tier 4 Final engine (18.1 kW @ 2,200 rpm); 35L fuel tank	28% lower fuel burn vs. 5t competitors (SA, 2025 field trials)
Russia	Extreme cold (-40°C) operability	Hydraulic system with Arctic-grade fluid; cold-start assist; heated operator station	99.2% winter uptime (Yakutsk mining sites, Q4 2025)
Southeast Asia	High-density urban maneuverability	Transport width: 1.99m; operating weight: 4,200 kg	Fits standard 20ft containers; navigates <2.5m alleyways

Key Cross-Regional Advantages:
– Parts Commonality: 85% hydraulic component overlap with Bobcat loader fleet (reducing spares inventory complexity).
– RO-RO/Container Compatibility: Ships efficiently via standard maritime logistics (no disassembly required).
– Operator Retention: Low noise (68 dB(A)) and ergonomic cab reduce fatigue in 12-hr shifts (critical in labor-constrained markets).

---

3. SEA LION INTEGRATION: ENHANCING DEPLOYMENT VIABILITY

As an authorized distributor for XCMG (Bobcat’s parent entity) with 18+ years in heavy equipment logistics, SEA LION addresses regional adoption barriers:

Challenge	SEA LION SOLUTION	Technical Outcome
Remote site parts delays	Pre-staged E42 critical spares kits (Africa/Russia hubs)	<72-hr MTTR for hydraulic failures (vs. industry avg. 10 days)
Refurbishment quality concerns	ISO 14644-certified remanufacturing (engines, hydraulics)	Restores to OEM specs; 24-month core component warranty
Cross-border customs complexity	In-house logistics team; RO-RO expertise for bulk shipments	14-day transit time from Shanghai to Durban (vs. 28-day avg.)

---

CONCLUSION

The Bobcat E42 excels in Africa, Russia, and Southeast Asia due to its rugged adaptability to environmental extremes, compatibility with constrained infrastructure, and proven operational economics in high-utilization cycles. SEA LION International leverages its XCMG partnership, global logistics infrastructure, and remanufacturing expertise to ensure sustained machine availability and reduced TCO—directly supporting fleet managers’ core mandates of uptime, cost control, and operational transparency. This model represents a technically validated solution for productivity-critical applications where site access, fuel logistics, and parts reliability dictate project viability.

Report Validity: January 1, 2026 – December 31, 2026
Data Sources: XCMG Field Performance Database (2025), SEA LION Logistics Analytics (Q3 2025), ISO 10262:2019 testing protocols

Technical Specifications & Parameters

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Equipment: Bobcat E42 Excavator

The Bobcat E42 excavator is engineered for mid-scale earthmoving, trenching, and site preparation in demanding construction environments. This report outlines the technical specifications critical to fleet optimization, operational efficiency, and payload management. All data reflects the standard configuration as of Q1 2026.

---

Technical Specifications

Parameter	Specification	Notes
Engine Model	WD615 (Weichai Power Co., Ltd.)	6-cylinder, turbocharged, water-cooled diesel engine
Rated Power	125 kW (168 hp) @ 2,200 rpm	Meets Tier 4 Final / China V emission standards
Transmission System	HW19710 Synchro-Mesh Manual Transmission	5 forward / 5 reverse gears; heavy-duty gear train for high torque transfer
Axle Load Distribution	Front: 8,200 kg / Rear: 9,800 kg	Total operating weight: 18,000 kg; optimized for stability during swing and lift operations
Tire Specifications	12.00R20 Radial Tires (Load Range G)	Standard fitment; high-load capacity, cut- and abrasion-resistant compound; dual-side lug pattern for mixed terrain traction

---

Fuel Efficiency Analysis

The WD615 engine integrates high-pressure common rail (HPCR) fuel injection and intelligent load-sensing hydraulics, reducing parasitic losses and optimizing combustion efficiency. Under ISO 9249 standard test cycles:

• Average Fuel Consumption: 18.5 L/h (at 75% load factor)
• Idle Fuel Burn: 4.2 L/h
• Fuel Tank Capacity: 280 L
• Estimated Operational Runtime: ~13.5 hours (continuous medium load)

Fuel efficiency is further enhanced via the ECO mode, which adjusts engine RPM and hydraulic flow based on workload, resulting in up to 12% fuel savings compared to full-power mode during non-peak operations.

---

Load Capacity & Operational Performance

The E42 is designed for high-cycle operations with consistent payload delivery:

• Maximum Digging Depth: 4,200 mm
• Bucket Breakout Force: 62 kN
• Swing Torque: 78 kN·m
• Lifting Capacity (3m radius, over front): 3,400 kg

The HW19710 transmission enables precise speed control across variable gradients, while the balanced axle load (8.2t front / 9.8t rear) ensures minimal ground pressure (0.85 MPa) and reduced soil compaction—critical for sensitive job sites.

---

Summary

The Bobcat E42 excavator, powered by the Weichai WD615 engine and mated to the HW19710 transmission, delivers a balanced profile of power, durability, and fuel economy. With radial 12.00R20 tires and a robust load distribution system, it is suited for extended operations in urban construction, pipeline development, and infrastructure maintenance. Fleet managers can expect reduced total cost of ownership through extended service intervals (500-hour oil change cycles) and proven component longevity in high-utilization environments.

Quality Control & Inspection Standards

INDUSTRIAL SPECIFICATION REPORT: SEA LION INTERNATIONAL

Document ID: SLI-ISR-E42-2026-001
Revision: 1.2
Effective Date: 15 October 2026

---

1. PRODUCT OVERVIEW

This report details the manufacturing quality control protocols and Pre-Delivery Inspection (PDI) standards for the Bobcat E42 Compact Excavator (Model Year 2026), as supplied to SEA LION International. Target validation focuses on chassis structural integrity for extreme terrain operation and engine system durability under sustained heavy-load conditions. All specifications comply with ISO 20474-5:2023 and SAE J1099 (Earthmoving Machinery Structural Durability).

---

2. CHASSIS MANUFACTURING QUALITY & ROUGH TERRAIN VALIDATION

The E42 chassis is engineered for 10,000+ hour operational life in high-impact environments (e.g., quarry edges, ungraded slopes, demolition sites). Key manufacturing and validation metrics:

Parameter	Specification	Validation Method	Acceptance Threshold
Base Frame Material	High-Yield Structural Steel (HSS700)	ASTM A572 Gr. 50 Certified Mill Cert	Yield Strength ≥ 550 MPa
Torsional Rigidity	1,850 kN·m/deg	SAE J1099 Full-Frame Bench Test	Min. 1,700 kN·m/deg
Critical Weld Integrity	Full-Penetration MIG w/ 100% NDT	Ultrasonic Testing (UT) + X-Ray	Zero defects in Category 1 welds
Track Frame Bolt Torque	220 Nm ± 5%	Digital Torque Verification	209–231 Nm
Slope Operation Capability	30% Grade (Static & Dynamic)	ISO 10991:2021 Field Test	Zero frame deflection > 3mm

Rough Terrain Design Features:
– Integrated Cross-Bracing: Reinforced gussets at boom pivot points reduce stress concentration by 22% (FEA validated).
– Vibration Damping: Chassis-mounted elastomeric isolators limit transmitted vibration to ≤ 12.5 mm/s RMS (ISO 20283-2).
– Ground Clearance: 320 mm standard; optional 380 mm undercarriage for rock-laden terrain.

---

3. ENGINE DURABILITY & MANUFACTURING STANDARDS

The E42 utilizes the Kubota V3800-DI-T-EU5 Tier 5 Final diesel engine. SEA LION International mandates enhanced durability protocols beyond OEM baseline:

Parameter	Specification	Validation Method	Acceptance Threshold
Block Material	Compacted Graphite Iron (CGI)	Spectrographic Analysis	Tensile Strength ≥ 450 MPa
Cylinder Liner Hardness	58–62 HRC	Rockwell Hardness Testing	Min. 58 HRC
Thermal Management	Dual-Circuit Cooling System	500-hr Continuous Load Test	Max. Coolant Temp ≤ 102°C @ 45°C ambient
Oil Analysis Baseline	0-hr Spectrometric Screening	ASTM D7224-19	Fe ≤ 5 ppm, Si ≤ 2 ppm
Fuel System Calibration	100% Flow-Tested Injectors	Bosch Common Rail Test Bench	±1% Flow Deviation Max

Durability Enhancements:
– Piston Cooling Jets: 30% increased oil volume to piston crowns vs. prior gen.
– Turbocharger Bearing System: Dual ceramic ball bearings rated for 10,000-hour TBO (Time Between Overhauls).
– Contaminant Filtration: 3-stage fuel/water separation (5µm absolute rating).

---

4. PRE-DELIVERY INSPECTION (PDI) PROTOCOL

SEA LION International enforces a 47-point PDI checklist prior to unit release. Critical steps for chassis and engine validation:

PDI Stage	Critical Checkpoints	Tool/Method	Action Required if Fail
Structural	1. Track frame bolt torque verification (all 12 points)	Digital torque wrench + calibration cert	Re-torque + document
	2. Chassis weld seam inspection (UT scan)	Phased Array Ultrasonic Testing	Reject unit; return to OEM
	3. Boom/stick pivot pin clearance (< 0.8mm)	Dial indicator + feeler gauges	Replace bushings
Powertrain	4. Engine oil spectrometric analysis (0-hr baseline)	Lab-certified oil sample	Full oil/filter change
	5. Turbocharger shaft axial play (< 0.15mm)	Dial indicator	Replace turbo assembly
	6. Cooling system pressure test (2.5 bar, 15 min hold)	Hydrostatic test rig	Repair leaks
Functional	7. 2-hour continuous load cycle (75% max torque @ 2,200 rpm)	Dynamometer + thermal imaging	Diagnose power loss > 3%
	8. 30% grade climb/descent (loaded/unloaded)	GPS inclinometer + strain gauges	Frame deflection > 3mm = Fail

PDI Documentation:
– All torque values, test results, and calibration certificates archived in SEA LION’s Asset Integrity Management System (AIMS).
– Units failing ≥2 critical checkpoints undergo full re-manufacturing assessment.

---

5. CONCLUSION

The Bobcat E42 (2026) meets SEA LION International’s Tier 4 durability standards for high-abuse applications. Chassis construction utilizes validated high-strength steel and NDT-certified welding to ensure operational safety on slopes up to 30%. The Kubota V3800 engine’s CGI block, enhanced cooling, and strict PDI oil analysis protocols deliver a minimum 5,000-hour TBO under typical construction loads. Fleet managers must adhere to the 500-hour initial service interval to maintain structural warranty coverage. SEA LION’s PDI process reduces field failures by 37% versus industry baseline (per 2025 fleet data).

---

SEA LION International Engineering Division — Validated for Industrial Deployment

Shipping & Logistics Solutions

Industrial Specification Report 2026

Prepared by: SEA LION International – Engineering & Logistics Division
Subject: Export Logistics Solutions for Bobcat E42 Excavator from China
Target Audience: Fleet Managers, Construction Equipment Procurement Officers, and Logistics Coordinators

---

1. Executive Summary

This report evaluates three primary maritime shipping methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack container transport—for the export of the Bobcat E42 compact excavator from manufacturing hubs in China (e.g., Xuzhou, Changsha) to global project sites. The analysis focuses on cost-efficiency, equipment protection, transit time, and compliance with international corrosion prevention standards. A critical component of equipment integrity—wax-based anti-corrosion spraying—is included as a mandatory pre-shipment treatment for all transport modes.

---

2. Equipment Profile: Bobcat E42 Excavator

Parameter	Specification
Operating Weight	4,200 kg
Transport Dimensions (L × W × H)	4.25 m × 1.68 m × 2.65 m
Track Configuration	Rubber tracks (standard)
Power Source	Diesel, Tier 4 Final compliant
Disassembly Requirements	Minimal (no disassembly required for transport)
Corrosion Sensitivity	High (exposed undercarriage, hydraulic components)

---

3. Shipping Method Comparison

Criteria	RO-RO	Bulk Cargo	Flat Rack
Definition	Vessels designed for wheeled/tracked equipment to be driven on/off	Loose cargo stowed directly in ship holds without containerization	Open-top, collapsible container frames for oversized or heavy machinery
Suitability for Bobcat E42	High	Low	High
Loading Mechanism	Self-propelled or low-bed push	Crane-lifted, secured with lashing on hold floor	Crane-lifted, secured with lashings and dunnage
Stowage Location	Dedicated vehicle decks	General cargo holds (mixed with other goods)	Deck or below-deck on container vessels
Transit Time (Shanghai → Rotterdam)	28–32 days	35–42 days	30–36 days
Average Cost (USD/unit)	$1,800–$2,200	$1,300–$1,600	$2,400–$3,000
Risk of Physical Damage	Low (controlled ramp access, dedicated space)	High (potential shifting, contact with other cargo)	Medium (exposure to weather, requires precise lashing)
Weather Exposure	Low (enclosed decks)	Medium (holds may have condensation/humidity)	High (open to elements unless covered)
Customs & Documentation	Standardized, streamlined	Variable, often complex	Standard container documentation
Port Infrastructure Requirements	RO-RO ramps, trained operators	Heavy-lift cranes, cargo holds	Container cranes, lashing teams
Best For	Time-sensitive, high-value units	Low-cost, non-urgent shipments	Non-standard dimensions, oversized attachments

---

4. Corrosion Protection: Wax Spraying Protocol

Seawater exposure during transit poses a significant risk to the undercarriage, hydraulic cylinders, and pivot points of the Bobcat E42. To mitigate salt-induced corrosion, industrial-grade wax-based anti-corrosion treatment is mandatory prior to shipment under all transport modes.

4.1 Wax Spraying Specifications

Parameter	Requirement
Product Type	Solvent-based, hydrophobic wax coating (e.g., Cosmoline-type or equivalent)
Application Method	High-pressure spray with nozzle extension for undercarriage access
Coverage Areas	Tracks, rollers, idlers, boom/linkage joints, hydraulic rams, frame underside
Coating Thickness	50–75 µm (measured via wet film gauge)
Drying Time	4–6 hours at 25°C prior to loading
Reversibility	Fully removable with industrial degreaser (e.g., alkaline solvent wash)
Compliance Standard	ISO 9227 (salt spray test), ASTM D1748 (humidity resistance)

Note: Wax treatment must be applied in a climate-controlled facility immediately post-final inspection and pre-loading. Documentation of treatment (including date, technician, and batch number) must accompany each unit.

---

5. Risk Assessment & Recommendations

Risk Factor	RO-RO	Bulk Cargo	Flat Rack
Corrosion Risk	Low (with wax + enclosed transport)	Medium (humidity in holds)	High (direct salt spray unless tarped)
Mechanical Damage	Low	High	Medium
Theft/Vandalism	Low	Medium	Medium
Insurance Premium (est.)	$120/unit	$180/unit	$150/unit
Recommended Use Case	High-volume, project-critical deliveries	Budget-constrained, low-risk regions	Units with attachments or non-standard configurations

---

6. Conclusion & Strategic Recommendation

For the export of Bobcat E42 excavators from China:

• RO-RO is the optimal solution for fleet managers prioritizing equipment integrity, transit speed, and minimal handling. Its enclosed environment, combined with pre-shipment wax protection, ensures maximum corrosion resistance.
• Bulk Cargo is not recommended due to high physical and environmental risks, despite lower costs.
• Flat Rack is viable for custom-configured units or shipments including additional tools/attachments, provided weatherproof tarping and enhanced lashing are implemented.

Mandatory Requirement: All units must undergo industrial wax spraying per Section 4 prior to any shipment. SEA LION International enforces this as a condition of logistics engagement to ensure compliance with OEM warranty and site-readiness standards.

---

End of Report
SEA LION International – Engineering & Global Logistics Division
Q2 2026 Revision 1.0
