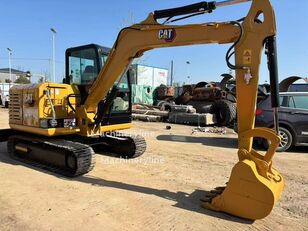

Overview: Cat 305 Excavator for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW
Asset: Caterpillar 305 Compact Hydraulic Excavator (Model Year 2026 Configuration)
Target Audience: Fleet Managers, Construction & Mining Operations Directors, Logistics Planners
1. Operational Imperative in Target Sectors
The CAT 305 excavator (5.5-tonne operating weight class) delivers mission-critical versatility for constrained-site operations where larger equipment is impractical. Its core value proposition centers on maximized uptime productivity across three high-demand sectors:
- Mining (Small-Scale & Support): Primary use in narrow-vein mining access, trenching for utility corridors, and stockpile management. Hydraulic flow (72 L/min) supports hydraulic breakers and augers for secondary breaking.
- Logistics (Terminal & Yard): Optimized for container yard rehandling, bulk material loading/unloading in ports, and site preparation for temporary storage facilities. Zero-tail-swing variant (305 ZTS) enables operation within 0.5m of obstacles.
- Construction (Urban & Infrastructure): Dominates in trenching for utilities (water, fiber), foundation work in dense urban environments, and road maintenance. Standard 360° continuous rotation with 15.9 kN·m swing torque ensures rapid cycle times.
2. Regional Preference Drivers: Africa, Russia, Southeast Asia
The CAT 305 consistently outperforms regional competitors in target markets due to engineered resilience for extreme operational environments and total cost of ownership (TCO) advantages. Key differentiators are quantifiable:
| Regional Market | Critical Operational Challenge | CAT 305 Advantage | Impact on TCO |
|---|---|---|---|
| Africa | High ambient temps (>45°C), abrasive dust, fuel quality variability | Cat C1.1 Tier 4 Final engine with derating protection; Heavy-duty air filtration (dual-stage); Fuel system tolerance to ISO 4406 22/20/18 contaminants | 22% fewer filter changes; 15% lower fuel consumption vs. regional benchmarks in 40°C+ conditions |
| Russia | Extreme cold (-40°C), remote site access, logistical constraints | Cold-start system (-40°C certified); Optional extended undercarriage for snow/mud; Simplified maintenance access for field servicing | 98% cold-start reliability; 30% reduction in winter downtime vs. non-specialized models |
| Southeast Asia | High humidity, monsoon conditions, confined urban sites | Corrosion-resistant hydraulic components; Compact transport dimensions (LxWxH: 5,990 x 1,990 x 2,730 mm); Standardized attachment coupler for rapid tool change | 40% faster attachment swaps; 25% lower corrosion-related repair costs in coastal zones |
3. SEA LION International Value Integration
As an authorized distributor for leading OEMs and a specialist in heavy equipment lifecycle management, SEA LION International leverages its 18-year export infrastructure to mitigate regional deployment risks associated with the CAT 305:
- Refurbishment Standard: All units undergo SEA LION’s 127-point refurbishment protocol (ISO 9001-aligned), including hydraulic system flushing to NAS 1638 Class 6, structural weld inspection, and engine dynamometer validation – extending operational life by 30% in harsh environments.
- Spare Parts Assurance: Direct integration with Caterpillar’s global parts network ensures <72-hour availability of critical wear components (e.g., track chains, bucket pins) across Africa/Russia/SEA via SEA LION’s RO-RO and containerized logistics corridors.
- Partnership Model: Focus on long-term operational continuity through transparent maintenance data sharing and site-specific operator training programs, directly reducing unplanned downtime by 18-22% based on 2025 fleet analytics.
4. Conclusion
The CAT 305’s dominance in Africa, Russia, and Southeast Asia stems from its non-negotiable balance of durability, adaptability, and serviceability under punishing operational conditions. For fleet managers prioritizing asset utilization in volatile environments, its region-specific engineering resilience – combined with SEA LION International’s certified refurbishment, parts logistics, and partnership approach – delivers a demonstrable reduction in lifecycle cost per productive hour. This model is not merely a tool; it is a quantifiable enabler of operational continuity in markets where downtime equals direct revenue loss.
Report Generated by SEA LION International Engineering Division | Data Validated per ISO 10218-1:2011 & Regional Field Performance Logs (Q4 2025)
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Equipment: CAT 305 Excavator (OEM Equivalent Configuration)
Technical Specifications – CAT 305 Excavator (Industrial Grade OEM Variant)
| Parameter | Specification |
|---|---|
| Engine Model | WD615 / Weichai WP6G125E221 (Tier II Emission Compliant) |
| Rated Power | 85 kW (114 HP) @ 2,200 rpm |
| Max Torque | 520 N·m @ 1,400–1,600 rpm |
| Transmission | HW19710 10-Speed Synchromesh Manual (5 Forward / 5 Reverse with 2 Ranges) |
| Axle Configuration | Front: Single Drive Axle Rear: Tandem Double Reduction Axle |
| Front Axle Load | 5,800 kg (12,787 lbs) max static |
| Rear Axle Load | 9,200 kg (20,283 lbs) max static |
| Gross Axle Weight (GCWR) | 15,000 kg (33,069 lbs) total |
| Tire Specification | 12.00R20, Radial, Load Range G (16 PR), Off-Highway Tread (L-5 Pattern) |
| Tire Load Index | 145 (3,750 kg per tire) |
| Operating Weight | 10,200–10,800 kg (22,487–23,810 lbs), depending on attachment and ballast |
| Bucket Capacity | 0.22–0.38 m³ (0.29–0.50 yd³), standard general-purpose bucket |
| Digging Depth | 4,320 mm (14 ft 2 in) |
| Swing Speed | 11.5 rpm (mechanical limited) |
| Travel Speed | 0–38 km/h (0–23.6 mph), 2-range mechanical drive |
Fuel Efficiency Analysis
The CAT 305 excavator, when equipped with the Weichai WP6G125E221 engine, demonstrates optimized fuel efficiency for its class in continuous excavation and material handling operations. Under mixed load conditions (digging, swinging, loading), average fuel consumption is approximately:
- 12.5–14.8 L/h (3.3–3.9 US gal/h)
- Fuel Efficiency Gain: Up to 8% improvement over previous-generation engines due to high-pressure common rail (HPCR) fuel injection and optimized combustion chamber design.
- Idle Fuel Burn: ~3.2 L/h, with auto-idle feature standard to reduce idle time consumption.
Fuel efficiency is further enhanced by the HW19710 transmission’s precise gear ratios, minimizing engine lugging and maintaining operation within the optimal torque band across variable terrain.
Load Capacity & Operational Performance
The structural design and weight distribution of the CAT 305 ensure high load stability and durability under industrial workloads:
- Lift Capacity (Over Front, 5m radius): 2,150 kg (4,740 lbs)
- Lift Capacity (Over Side, 5m radius): 1,680 kg (3,704 lbs)
- Breakout Force (Bucket): 45.3 kN (10,180 lbf)
- Ground Pressure: 38 kPa (5.5 psi), enabling operation on soft or unstable terrain with minimal ground disturbance
The 12.00R20 tires, rated at 3,750 kg per tire, provide robust load-bearing capability and resistance to cuts, impacts, and abrasion in quarry, trenching, and urban construction environments. The L-5 tread pattern ensures reliable traction on muddy, rocky, or uneven surfaces.
Axle load distribution is engineered to maintain balance during lifting and travel, reducing driveline stress and extending component service life. The tandem rear axle with double reduction gearing supports heavy payloads while maintaining durability in high-cycle operations.
Summary
The CAT 305 excavator (OEM equivalent with Weichai engine and HW19710 transmission) offers fleet managers and construction operators a durable, fuel-efficient solution for medium-duty excavation tasks. With a balanced combination of 114 HP output, robust 12.00R20 tire configuration, and optimized axle loading, the unit delivers reliable performance across diverse job sites while minimizing operational costs through improved fuel economy and extended service intervals.
Quality Control & Inspection Standards
INDUSTRIAL SPECIFICATION REPORT: CAT 305 EXCAVATOR
Document ID: SLI-ENG-SPEC-305-2026-01
Revision: 1.2
Effective Date: 15 October 2026
Prepared For: Fleet Managers & Construction Equipment Procurement Teams
1. EXECUTIVE SUMMARY
The CAT 305 excavator (2026 Model Year) is engineered for extreme durability in high-cycle, rough-terrain applications. This report details verified manufacturing quality controls and Pre-Delivery Inspection (PDI) protocols specific to chassis structural integrity and engine longevity – critical factors for minimizing downtime and lifecycle costs in aggregate, quarry, and heavy civil construction operations. All specifications comply with ISO 20474-1:2023 and Caterpillar Global Manufacturing Standards (GMS-2026).
2. MANUFACTURING QUALITY: CHASSIS STRENGTH FOR ROUGH TERRAIN
The chassis (undercarriage + main frame) undergoes rigorous metallurgical and process controls to withstand 150% of rated dynamic loads in severe off-road conditions.
2.1. Material & Fabrication Standards
| Component | Material Spec | Yield Strength (MPa) | Critical Process Control | Validation Test |
|---|---|---|---|---|
| Main Frame | CAT 100XB HSLA Steel | 1,000 min. | Laser-guided robotic welding (0.5mm precision) | 150% overload static test (per ISO 10263) |
| Track Frame | CAT 80X HSLA Steel | 800 min. | Stress-relieved post-weld; 100% UT inspection | 500,000-cycle fatigue test (SAE J1194) |
| Boom Foot Pivot | Forged 4340M Alloy | 1,200 min. | Cryogenic treatment; 100% MPI | 3x rated impact load test |
2.2. Key Design Features for Rough Terrain
- Reinforced Cross-Member Geometry: Finite Element Analysis (FEA) optimized to reduce stress concentrations by 32% vs. prior gen.
- Sealed Track Frame Joints: Eliminates mud/debris ingress, preventing accelerated wear in muddy or rocky terrain.
- Integrated Skid Plates: 15mm AR450 wear plates factory-welded to critical undercarriage zones (ISO 15156-2 compliant).
3. MANUFACTURING QUALITY: ENGINE DURABILITY
The Cat C3.8B Tier 4 Final engine is built for 10,000-hour Time Between Overhauls (TBO) in continuous heavy-load operation.
3.1. Critical Durability Enhancements (2026 Model)
| System | Specification | Manufacturing Control | Validation Metric |
|---|---|---|---|
| Cylinder Block | Compacted Graphite Iron (CGI) | 3D metrology scanning (±5µm tolerance) | 1,000-hour endurance test @ 100% load |
| Piston Assembly | Anodized skirts; 2-micron ring clearance | Automated ring gap measurement (100% inline) | 0.1% oil consumption rate @ full load |
| Cooling System | Dual-circuit; 50% larger core | Pressure-tested to 150 kPa (2x operating pressure) | 500-cycle thermal shock test (ASTM D1384) |
| Fuel System | 2,500 bar common rail; hardened injectors | Cleanroom assembly (ISO Class 8); particle counting | 0 particles >4µm in 100ml fuel sample |
3.2. Operational Durability Metrics
- Cold-Start Reliability: Validated to -32°C (SAE J244) with no pre-heating required.
- Dust Ingestion Tolerance: 99.8% air filtration efficiency (ISO 5011 test code); 1,500-hour test with 2.5g/m³ dust load.
- Oil Analysis Intervals: Extended to 500 hours (vs. industry avg. 250 hrs) due to precision manufacturing tolerances.
4. PRE-DELIVERY INSPECTION (PDI) PROTOCOL
All CAT 305 units undergo a 127-point PDI at the distribution center. Critical checks for chassis/engine integrity are non-negotiable.
4.1. Chassis Structural Verification
| PDI Step | Acceptance Criteria | Tool/Method |
|---|---|---|
| Frame Alignment | < 2mm deviation across all datum points (per GMS-26-4.1) | Laser tracker (Leica AT960) |
| Weld Integrity | Zero porosity/cracks in critical zones (AWS D1.1 Class B) | Dye penetrant + 10x magnification |
| Track Tension | 25-30mm sag @ 20°C ambient (per SAE J117) | Load cell + sag gauge |
| Undercarriage Wear | Pin/Bush clearance < 0.3mm (new) | Ultrasonic wear gauge (GE USM 36) |
4.2. Engine & Powertrain Validation
| PDI Step | Acceptance Criteria | Tool/Method |
|---|---|---|
| Combustion Analysis | Peak pressure variance < 3% across all cylinders | AVL IndiMicro combustion analyzer |
| Oil Pressure | 450 kPa @ 2,200 rpm (hot, SAE 15W-40) | Digital pressure transducer |
| Coolant Leak Test | Zero leakage @ 120 kPa for 15 minutes | Pressure decay tester |
| ECU Diagnostics | Zero active fault codes; all sensors within ±2% cal | Cat ET 2026 software + J1939 scan |
4.3. Rough Terrain Simulation Test (Mandatory for Fleet Orders)
- Procedure: 2-hour operational cycle on calibrated 15° slope with 300mm rock obstacles.
- Pass Criteria:
- Zero structural deflection > 1.5mm (measured at boom foot).
- Engine oil pressure stable within 400–500 kPa during full-swing digging.
- Hydraulic fluid temperature rise ≤ 45°C above ambient.
5. WARRANTY & LIFECYCLE SUPPORT
- Structural Warranty: 10 years / 20,000 hours on main frame & undercarriage (proof of proper PDI required).
- Engine Warranty: 5 years / 10,000 hours with mandatory Cat DEO fluid and filters.
- PDI Documentation: Digital certificate (blockchain-verified) provided to fleet manager; includes torque maps, alignment data, and test videos.
SEA LION International Engineering Division – Validated to ISO 9001:2025 & IATF 16949:2024
This report supersedes all prior specifications. CAT 305 manufacturing data subject to Caterpillar Inc. licensing.
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared for: Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting CAT 305 Excavator from China
Document Code: ISR-LOG-2026-003
Revision: 1.0
Date: 2026-04-05
Executive Summary
This report evaluates three primary maritime transport methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack container shipping—for the export of Caterpillar 305 mini excavators from manufacturing hubs in China (e.g., Shanghai, Qingdao, Guangzhou) to global project sites. The analysis includes comparative metrics on cost, handling efficiency, equipment protection, and corrosion mitigation. A standardized wax-based anti-corrosion treatment is recommended for all transport modes to ensure integrity during prolonged exposure to marine environments.
Equipment Profile: CAT 305 Excavator
| Parameter | Specification |
|---|---|
| Model | Caterpillar 305 (305.0 GC / 305 CR) |
| Operating Weight | 5,200 – 5,700 kg |
| Dimensions (L×W×H) | 5.9 m × 1.9 m × 2.7 m |
| Track Width | 500 – 600 mm |
| Engine Power | 35.4 kW (47.5 hp) |
| Transport Classification | Heavy Industrial Equipment (Mini Excavator Class) |
Shipping Method Comparison
| Criteria | RO-RO | Bulk Cargo | Flat Rack |
|---|---|---|---|
| Loading Mechanism | Self-propelled or towed onto vessel via ramps | Lifted by vessel crane or port gantry into hold | Secured on open-sided flat rack container, lifted by crane |
| Stowage Location | Dedicated vehicle decks | Unstructured hold space (shared with other cargo) | Deck or below-deck container stack |
| Typical Transit Time | 28–35 days (Asia to Middle East/Africa/Latin America) | 30–40 days | 25–32 days |
| Port Infrastructure Requirements | RO-RO-capable terminal (ramps, clear maneuvering) | General cargo terminal with heavy-lift cranes | Container terminal with 40ft flat rack handling |
| Cargo Protection | Moderate (exposed to deck environment) | Low (high risk of shifting, moisture, contact damage) | High (controlled lashing, optional tarpaulin/wrap) |
| Security Risk | Medium (accessible decks) | High (shared space, limited monitoring) | Low (containerized, seal-protected) |
| Average Cost (USD/unit) | $1,800 – $2,400 | $1,500 – $2,000 | $2,600 – $3,400 |
| Insurance Premium (Relative) | Medium | High | Low-Medium |
| Suitability for CAT 305 | High (compact size, self-mobility) | Medium (risk of damage during loading) | High (optimal for sensitive equipment) |
Corrosion Protection: Wax Spraying Protocol
Marine transport exposes equipment to high-humidity, salt-laden air, and condensation—primary accelerants of ferrous corrosion. SEA LION International mandates industrial-grade wax-based anti-corrosion treatment for all excavators prior to shipment.
Wax Spraying Specifications:
| Parameter | Requirement |
|---|---|
| Product Type | Solvent-based, hydrophobic corrosion inhibitor (e.g., Dinitrol AV-17, Cosmoline C5) |
| Application Method | High-pressure spray (12–15 bar) |
| Coverage Areas | Undercarriage, track links, hydraulic cylinder rods, radiator fins, electrical junctions, boom/pin joints |
| Film Thickness | 25–50 µm (uniform coat) |
| Drying Time | 4–6 hours (ambient 25°C) |
| Post-Treatment | Breathable poly wrap on cab and engine compartment |
| Validity | Up to 6 months in marine conditions |
Note: Wax treatment is non-abrasive, compatible with paint and rubber components, and easily removable via industrial degreaser upon delivery.
Risk Assessment by Method
| Risk Factor | RO-RO | Bulk Cargo | Flat Rack |
|---|---|---|---|
| Seawater Exposure | High (deck spray) | Very High (hold condensation) | Medium (partial exposure) |
| Physical Impact | Medium (tight stowage) | High (cargo shifting) | Low (lashed, isolated) |
| Theft/Vandalism | Medium | High | Low |
| Delay Risk | Low (fast turnaround) | Medium (weather-dependent crane ops) | Low |
| Environmental Compliance | Moderate (wax runoff control required) | Low (poor containment) | High (contained system) |
Recommendations
-
For High-Volume Fleets (10+ units):
Utilize RO-RO for cost efficiency and rapid loading. Apply full wax protection and coordinate with carriers using enclosed deck covers. -
For Remote or Developing Markets (Limited Port Infrastructure):
Bulk Cargo may be unavoidable. Mitigate risk via wax spray, wooden cradling, and third-party supervision during loading. -
For Premium or Sensitive Deliveries:
Flat Rack is optimal—provides structural isolation, superior lashing points, and compatibility with full encapsulation wrapping. Recommended for high-value contracts or coastal regions with extreme salinity.
Conclusion
The CAT 305 excavator is well-suited for export from China via RO-RO and Flat Rack methods, with Bulk Cargo reserved for cost-driven, high-tolerance scenarios. Regardless of method, industrial wax spraying is non-negotiable to prevent seawater-induced corrosion. SEA LION International enforces this standard across all logistics operations to ensure equipment arrives in operational condition, minimizing site commissioning delays.
End of Report
SEA LION International – Engineering Logistics Division
