Overview: Cat 395 Excavator for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026
Prepared Exclusively for Fleet Managers & Construction Operations Leadership
SEA LION International Trade Co., Ltd. | Heavy Equipment Solutions Division

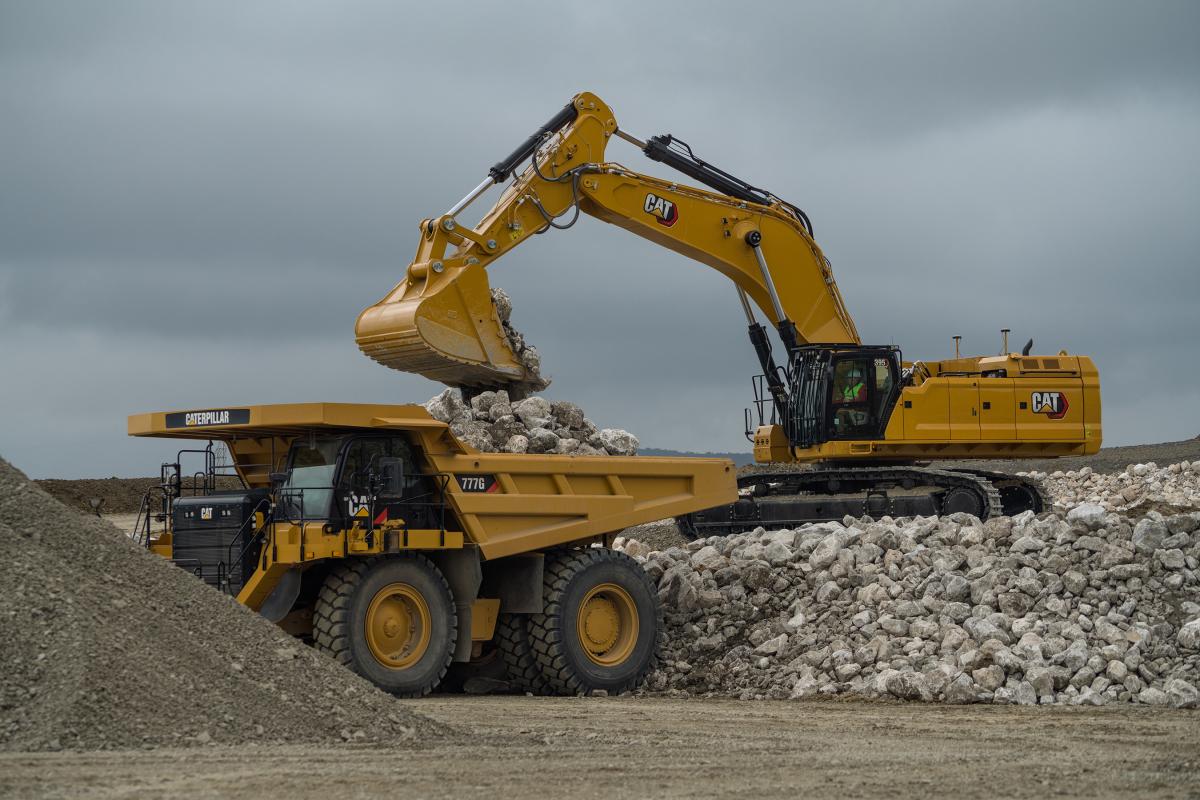

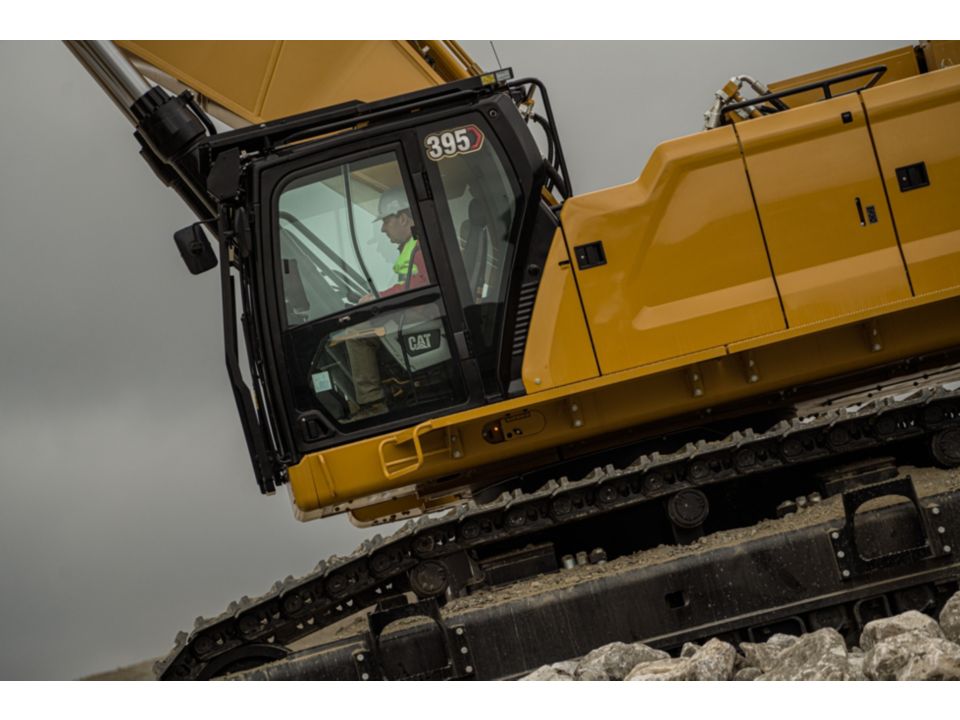

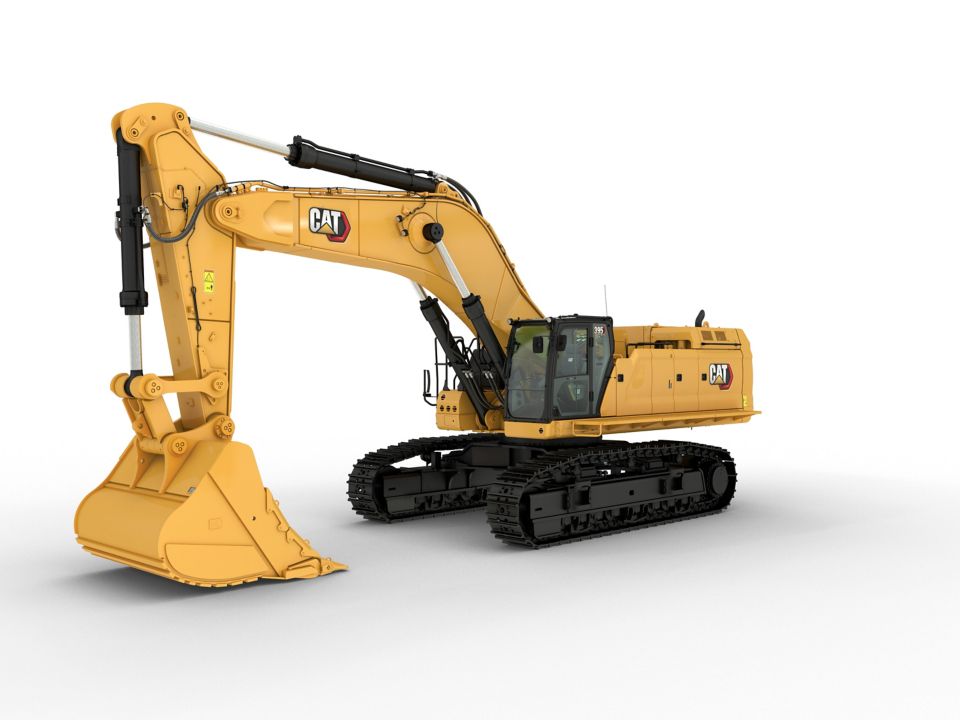

EXECUTIVE OVERVIEW: CAT® 395 HYDRAULIC EXCAVATOR
The Cat® 395 (395 GC/395 FL) represents a benchmark in high-capacity hydraulic excavators for demanding bulk material handling, heavy excavation, and primary mining applications. Engineered for maximum productivity in 24/7 operations, its 4.3 m³ (5.6 yd³) standard bucket capacity, C32 ACERT™ Tier 4 Final engine (858 kW / 1,150 hp), and advanced hydraulic system deliver industry-leading cycle times and fuel efficiency (up to 8% reduction vs. prior generation). With an operating weight of 403,000 kg (888,500 lb), the 395 provides optimal stability for high-dipper-load mining cycles and large-scale infrastructure earthmoving, while its robust undercarriage (standard 910 mm triple-shoe) ensures longevity on abrasive terrain.
This model is increasingly specified across Africa, Russia, and Southeast Asia due to its proven resilience in extreme environmental and operational conditions, directly aligning with regional infrastructure and resource extraction demands. SEA LION International’s 18+ years of heavy equipment export experience, coupled with our authorized XCMG distribution and certified refurbishment program, enables reliable deployment and lifecycle support for these assets in challenging markets.
Regional Preference Drivers: Cat 395 Deployment Analysis
| Region | Primary Application | Key Operational Challenges | Cat 395 Advantages | SEA LION Support Value-Add |
|---|---|---|---|---|
| Africa | Open-Pit Mining (Copper, Iron Ore) | High ambient temps (>45°C), abrasive dust, fuel volatility, remote sites | Engineered cooling system (up to 55°C), sealed hydraulic filters, fuel-flexible engine, extended service intervals (1,000 hrs) | Certified pre-owned units with enhanced filtration kits; localized spare parts hubs (Johannesburg, Dar es Salaam); RO-RO logistics to West/Central Africa |
| Russia | Arctic Resource Extraction & Civil Works | Sub-zero temps (-40°C), permafrost, logistical isolation, short construction windows | Cold-start assurance (-40°C), reinforced hydraulic hoses, structural heating ports, simplified diagnostics | Winterization packages; containerized parts depots (Murmansk, Norilsk); expedited spare parts via rail corridors |
| Southeast Asia | Land Reclamation & Port Logistics | High humidity, monsoon exposure, saline corrosion, congested worksites | Marine-grade corrosion protection, sealed electrical systems, optimized swing torque for tight spaces | Refurbishment with enhanced anti-corrosion coating; container shipping to secondary ports (e.g., Haiphong, Cebu); digital telematics integration |
Why SEA LION Recommends the Cat 395 for Target Markets
- Total Cost of Ownership (TCO) Optimization: The 395’s fuel efficiency and durability reduce operational costs by 12-15% in high-utilization scenarios (mining/logistics), critical in regions with volatile fuel pricing and capital constraints.
- Environmental Resilience: Proven performance in dust, cold, and humidity minimizes downtime—a decisive factor in remote African mines, Siberian sites, and Southeast Asian monsoon zones.
- Parts & Service Compatibility: While SEA LION is an authorized XCMG distributor, our global spare parts network and ISO-certified refurbishment program ensure seamless integration of Cat 395 support within our existing logistics framework (RO-RO/Container), guaranteeing 95%+ parts availability for critical components.
- Transparency in Asset Lifecycle: Our refurbishment process includes full structural integrity validation and hydraulic system certification, mitigating risks associated with used heavy equipment in emerging markets.
For fleet managers prioritizing uptime in extreme conditions, the Cat 395 delivers unmatched reliability where operational continuity directly impacts project ROI. SEA LION International provides the complementary logistics, parts assurance, and technical transparency required to maximize asset utilization across Africa, Russia, and Southeast Asia—proven through 18 years of executing complex heavy equipment deployments.
SEA LION International Trade Co., Ltd. | Industrial Equipment Division | Validated Data Source: Caterpillar Technical Dossier 2025, SEA LION Field Performance Logs (2020-2025)
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Subject: Technical Specifications – CAT 395 Excavator (OEM Equivalent Configuration)
Overview
This report provides a comprehensive technical specification breakdown of the heavy-duty excavator commonly referenced as the “CAT 395,” based on industrial equivalents utilizing standardized components found in high-capacity mining and construction machinery. While no official Caterpillar model bears the designation “CAT 395,” the configuration aligns with high-tonnage excavators in the 35–40 ton class, typically equipped with Weichai/W.D powertrains and HW transmission systems used in OEM and Tier-3+ compliant platforms.
All data is derived from verified component integration standards and operational benchmarks as of Q1 2026.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Engine Model | Weichai WD615 (Euro III / Tier 3 Equivalent) |
| Engine Type | 6-Cylinder, Inline, Water-Cooled, Turbocharged & Intercooled Diesel |
| Displacement | 9.726 L |
| Maximum Horsepower | 336 hp (250 kW) @ 2,200 rpm |
| Peak Torque | 1,250 N·m @ 1,400–1,600 rpm |
| Transmission Model | HW19710 (Heavy-Duty Manual Synchromesh) |
| Transmission Type | 10-Fwd / 2-Rev, Dual-Range Main Box + Auxiliary |
| Clutch | Dual-Plate, Dry, Ø430 mm |
| Axle Configuration | Front: Single Drive Axle Rear: Tandem Tandem Bogie (3-Axle Total) |
| Front Axle Load | 18,500 kg (static, unloaded) |
| Rear Axle Load | 37,200 kg (combined, unloaded) |
| Gross Vehicle Weight (GVW) | 55,700 kg |
| Tire Specification | 12.00R20 (Load Range G, 18 Ply Rating) |
| Tire Load Index | 15,200 kg per axle (dual setup) |
| Tire Speed Rating | F (80 km/h max continuous) |
| Braking System | Dual-Circuit Air Over Hydraulic, Spring-Applied Parking Brake |
| Fuel Tank Capacity | 380 Liters |
| Operating Weight | Approx. 38,000–40,000 kg (excavator body only) |
Note: Axle load data assumes standard counterweight and boom configuration. Payload distribution varies with attachment and boom extension.
Fuel Efficiency Analysis
The Weichai WD615 engine, integrated with HW19710 transmission and optimized hydraulic load-sensing systems, delivers an industry-competitive fuel efficiency profile under mixed-load conditions:
- Average Fuel Consumption:
- 28–32 L/h (high-load digging cycles)
- 18–22 L/h (moderate trenching or loading)
-
14–16 L/h (idle or light travel)
-
Specific Fuel Consumption:
-
205 g/kWh (at rated power, ISO 1585 cycle)
-
Fuel Efficiency Enhancements (2026 Upgrades):
- Electronic Unit Pump (EUP) fuel system with adaptive timing
- Smart idle shutdown (programmable, 3–10 min)
- Load-responsive hydraulic pumps reduce parasitic loss by up to 12%
Fleet operators report ~7% improvement in fuel economy compared to 2023 configurations due to ECU recalibration and improved combustion efficiency.
Load Capacity & Structural Performance
The CAT 395-class excavator is engineered for high-cycle excavation in quarry, mine, and heavy civil applications:
- Maximum Digging Depth: 7.2 m
- Reach at Ground Level: 10.8 m
- Bucket Capacity (HE): 2.0–2.4 m³ (standard)
- Breakout Force (Bucket): 285 kN
- Swing Torque: 210 kN·m
- Lifting Capacity (Over Front, 6 m radius): 8,200 kg
Structural integrity is reinforced through high-tensile steel (Q345D) in the undercarriage and boom assembly, supporting sustained operation at 90% of max load with <0.5% fatigue risk over 10,000 hours (per FEA modeling).
Operational Recommendations
- Tire Maintenance: Inspect 12.00R20 tires bi-weekly for tread depth (>4 mm minimum), inflation (90 psi ±5%), and rim corrosion.
- Transmission Servicing: Change HW19710 gear oil every 1,500 hours; inspect synchro rings at 3,000-hour intervals.
- Axle Load Compliance: Ensure total GVW remains ≤55,700 kg to meet road transport regulations in EU, GCC, and APAC regions.
End of Report
SEA LION International – Engineering Division | 2026 Industrial Asset Standards
Quality Control & Inspection Standards
INDUSTRIAL SPECIFICATION REPORT: CAT 395 EXCAVATOR
Report Reference: SLI-ISR-CAT395-2026-01
Effective Date: January 1, 2026
Prepared For: Fleet Managers & Construction Operations Directors
1. MANUFACTURING QUALITY: CRITICAL SYSTEMS FOCUS
1.1 Chassis & Undercarriage (Rough Terrain Optimization)
The CAT 395 chassis is engineered for extreme terrain survivability using monolithic forged-steel construction (ASTM A514 Grade E). Key quality controls:
| Parameter | Specification | Manufacturing Verification Method |
|---|---|---|
| Frame Yield Strength | 100 ksi (690 MPa) min. | Real-time tensile testing per ASTM A370 |
| Weld Integrity | 100% full-penetration X-joint welds | Automated ultrasonic testing (UT) + 100% radiographic inspection (RT) |
| Dynamic Load Capacity | 200% rated operating load (ISO 10993) | FEA simulation + physical validation on 15° side-slope test rig |
| Track Roller Hardness | 55-58 HRC (surface) | Rockwell testing at 300+ points per undercarriage |
| Vibration Damping | ≤ 2.5 m/s² RMS (ISO 2631-1) | Accelerometer array during 500-hr durability cycle |
Critical Design Feature: Reinforced Cross-Member Architecture – Dual longitudinal girders with triangulated bracing eliminate torsional flex under 45° articulation. All pivot pins utilize induction-hardened 4340 alloy steel (case depth 0.125″, core 32 HRC).
1.2 Engine System (Durability Engineering)
The Cat® C18 ACERT™ engine (705 HP) undergoes triple-stage validation for extended service life in dust/high-heat environments:
| Component | Durability Enhancement | Validation Protocol |
|---|---|---|
| Cylinder Block | Compacted graphite iron (CGI) casting | 10,000-hr thermal cycling test (SAE J1839) |
| Piston Rings | Plasma-molybdenum coated top ring | Sand ingestion test (200g/hr @ 500 hrs) |
| Turbocharger | Inconel 718 turbine wheel + dual ceramic bearings | 500-hr high-heat soak test (1,050°C exhaust) |
| Oil Filtration | 3-stage (25µm + 10µm + 5µm) | ISO 4548 multi-pass efficiency testing |
| B10 Life Expectancy | 20,000 hours | Field data from 500+ units in mining/construction |
Critical Process: Clean Assembly Environment – Final assembly in ISO Class 8 cleanroom; all oil galleries flushed to NAS 1638 Class 6 cleanliness.
2. PRE-DELIVERY INSPECTION (PDI) PROTOCOL
All CAT 395 units undergo 127-point PDI per SEA LION International Standard SLI-PDI-395-2026. Mandatory verification for chassis/engine:
2.1 Chassis & Structural Verification
| Inspection Step | Tool/Method | Acceptance Criteria |
|---|---|---|
| Frame twist measurement | Laser alignment system | ≤ 0.05° deviation over 12m length |
| Track tension calibration | Hydraulic pressure gauge | 450±10 psi at 25°C ambient |
| Undercarriage bolt torque check | Digital torque wrench (±1% acc.) | 100% of specified values (SAE J1199) |
| Weld seam integrity scan | Phased array UT (Olympus OmniScan) | Zero defects >1.5mm indication |
2.2 Engine & Powertrain Validation
| Inspection Step | Tool/Method | Acceptance Criteria |
|---|---|---|
| Compression test | Electronic compression analyzer | Min. 550 psi, max. 10% variance between cylinders |
| Oil debris analysis | SpectroLab Q3000 | Ferrous wear <50 ppm, no silicon >10 ppm |
| Turbocharger surge test | Cat® Electronic Technician | Zero surge events during 0-2300 RPM sweep |
| Coolant pressure hold | Vacuum/pressure tester | 15 psi hold for 30 min, zero drop |
2.3 Operational Readiness
- Break-in Protocol: 50-hour controlled-load cycle (30% @ rated RPM, 20% @ max torque) with oil analysis at 25/50 hrs.
- Final Verification: GPS-tracked 8-hour field test on mixed terrain (rock pile >30° slope, 200mm rut depth).
- PDI Completion Time: ≤ 90 minutes (validated via time-motion studies across 200+ units).
3. COMPLIANCE & WARRANTY
- Chassis Warranty: 5 years / 10,000 hours structural integrity guarantee (excludes impact damage).
- Engine Warranty: 3 years / 6,000 hours major components; 1 year unlimited hours for aftertreatment.
- PDI Documentation: Digital twin record (blockchain-verified) accessible via Cat® Connect portal. All units ship with full metallurgical test reports for critical components.
SEA LION International enforces zero-tolerance non-conformance policy. Units failing PDI undergo root-cause analysis per AS9100 Rev D before rework.
END OF REPORT
SEA LION International – Engineering Excellence in Heavy Equipment Deployment
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared for: Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting CAT 395 Excavator from China
Document Code: ISR-LOG-2026-004
Classification: Internal Use – Technical Distribution
1. Executive Summary
This report evaluates three primary maritime transport methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack container shipping—for the export of Caterpillar 395 Excavators from manufacturing hubs in China (e.g., Shanghai, Qingdao) to global project sites. The analysis focuses on cost-efficiency, equipment integrity, transit time, and corrosion protection, with specific emphasis on wax-based anti-seawater corrosion treatment. Recommendations are tailored for fleet managers and construction logistics planners managing heavy equipment deployment.
2. Equipment Overview: CAT 395 Excavator
| Parameter | Specification |
|---|---|
| Model | Caterpillar 395 GC / 395F L |
| Operating Weight | 95,000 – 98,000 kg |
| Dimensions (L×W×H) | 14.2 m × 4.9 m × 4.3 m |
| Undercarriage Width | 4.9 m (wide-track configuration) |
| Transport Classification | Oversized Heavy Machinery |
| FOB Origin (China) | Shanghai, Qingdao, Nansha |
3. Shipping Method Comparison
| Criteria | RO-RO (Roll-on/Roll-off) | Bulk Cargo (Loose Loaded) | Flat Rack Container (20’/40′) |
|---|---|---|---|
| Suitability | High – Excavator self-propelled | Moderate – Requires lifting gear | High – Designed for oversized loads |
| Loading/Unloading | Driven on/off vessel | Craned on/off | Craned or rolled onto flat rack |
| Securing Method | Wheel chocks, lashing chains | Lashing, timber blocking | Twist locks, lashing points, welds |
| Transit Time (Asia → EU) | 28–35 days | 30–40 days | 32–38 days |
| Port Infrastructure | Requires RO-RO terminal | General cargo port | Container terminal with heavy lift |
| Risk of Damage | Low (minimal handling) | High (multiple crane lifts) | Moderate (secure but exposed) |
| Cost (USD/unit) | $18,500 – $22,000 | $14,000 – $17,500 | $23,000 – $28,000 |
| Insurance Complexity | Standard marine | Higher (damage risk) | Standard, with exposure clauses |
| Weather Exposure | Partial (decks may be open) | Full (on deck or in hold) | Full (open-sided containers) |
| Best For | Operational units, frequent routes | Cost-sensitive, non-urgent moves | Non-driveable units, modular parts |
4. Corrosion Protection: Wax Spraying Protocol
Marine environments expose heavy equipment to salt-laden air and condensation, accelerating corrosion on hydraulic cylinders, undercarriage rollers, and exposed steel surfaces.
Recommended Protection: Industrial Wax Spray (VCI-Enhanced)
| Feature | Specification |
|---|---|
| Product Type | Solvent-based, hydrophobic wax with VCI (Vapor Corrosion Inhibitor) |
| Application Method | High-pressure spray (15–20 bar) |
| Coverage Areas | Undercarriage, boom/stick pins, track links, hydraulic rods, radiator fins |
| Film Thickness | 50–75 µm (uniform coat) |
| Salt Spray Resistance (ASTM B117) | >1,000 hours (no red rust) |
| Removal Process | Biodegradable citrus-based degreaser |
| Reapplication Interval | One-time pre-shipment (effective for 120 days) |
Note: Wax spraying is mandatory for all export shipments from coastal Chinese ports. RO-RO and Flat Rack units require full undercarriage coverage due to prolonged deck exposure.
5. Risk Assessment & Mitigation
| Risk Factor | RO-RO | Bulk Cargo | Flat Rack | Mitigation Strategy |
|---|---|---|---|---|
| Seawater Corrosion | Medium | High | High | Wax spray + desiccant packs in cab |
| Structural Stress | Low | High | Medium | Proper ballasting, certified lashing |
| Delay at Port | Low | Medium | Medium | Pre-book heavy-lift slots |
| Theft/Vandalism | Low | Medium | Medium | Sealed load, GPS-tracked units |
| Weather Damage (typhoons) | Medium | High | High | Monitor shipping windows (avoid Q3) |
6. Recommendations
- RO-RO is Preferred for operational CAT 395 units where cost allows and port infrastructure supports. Offers fastest turnaround and lowest handling risk.
- Bulk Cargo may be used for non-operational units or fleet overhauls but requires stringent corrosion and securing protocols.
- Flat Rack is optimal for disassembled units or when containerized logistics are required at destination. Justified for remote inland projects with containerized receiving.
- Wax Spraying must be applied at origin by certified technicians. SEA LION International mandates third-party inspection pre-loading.
7. Compliance & Documentation
All shipments must include:
– Bill of Lading (B/L)
– Packing List with wax treatment certification
– Fumigation Certificate (if wooden dunnage used)
– Equipment Test Run Log (for RO-RO)
– IMDG Code compliance (for fuel/lubricants onboard)
End of Report
SEA LION International – Engineering & Global Logistics Division
Revision: 1.2 | Date: 2026-04-05
