Overview: Diesel Fuel Tipper Truck for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW

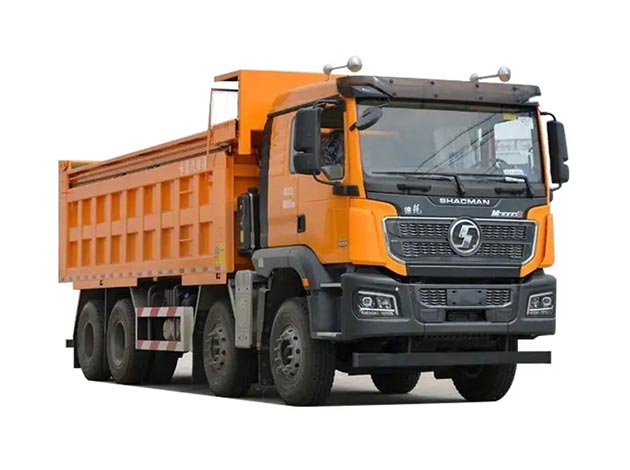

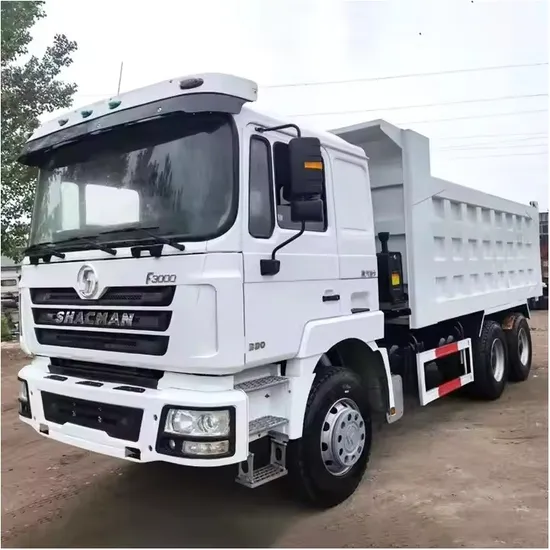

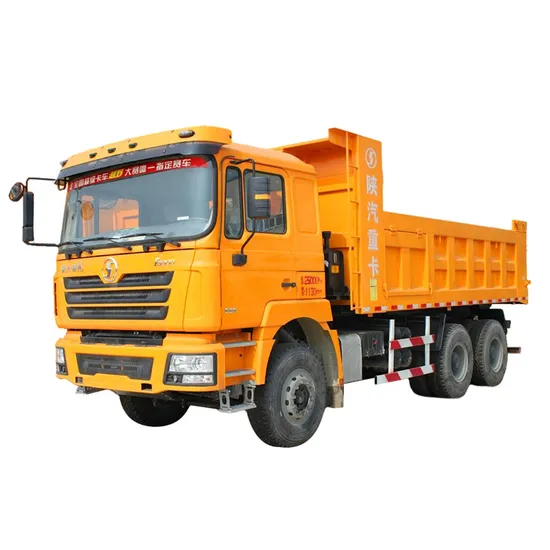

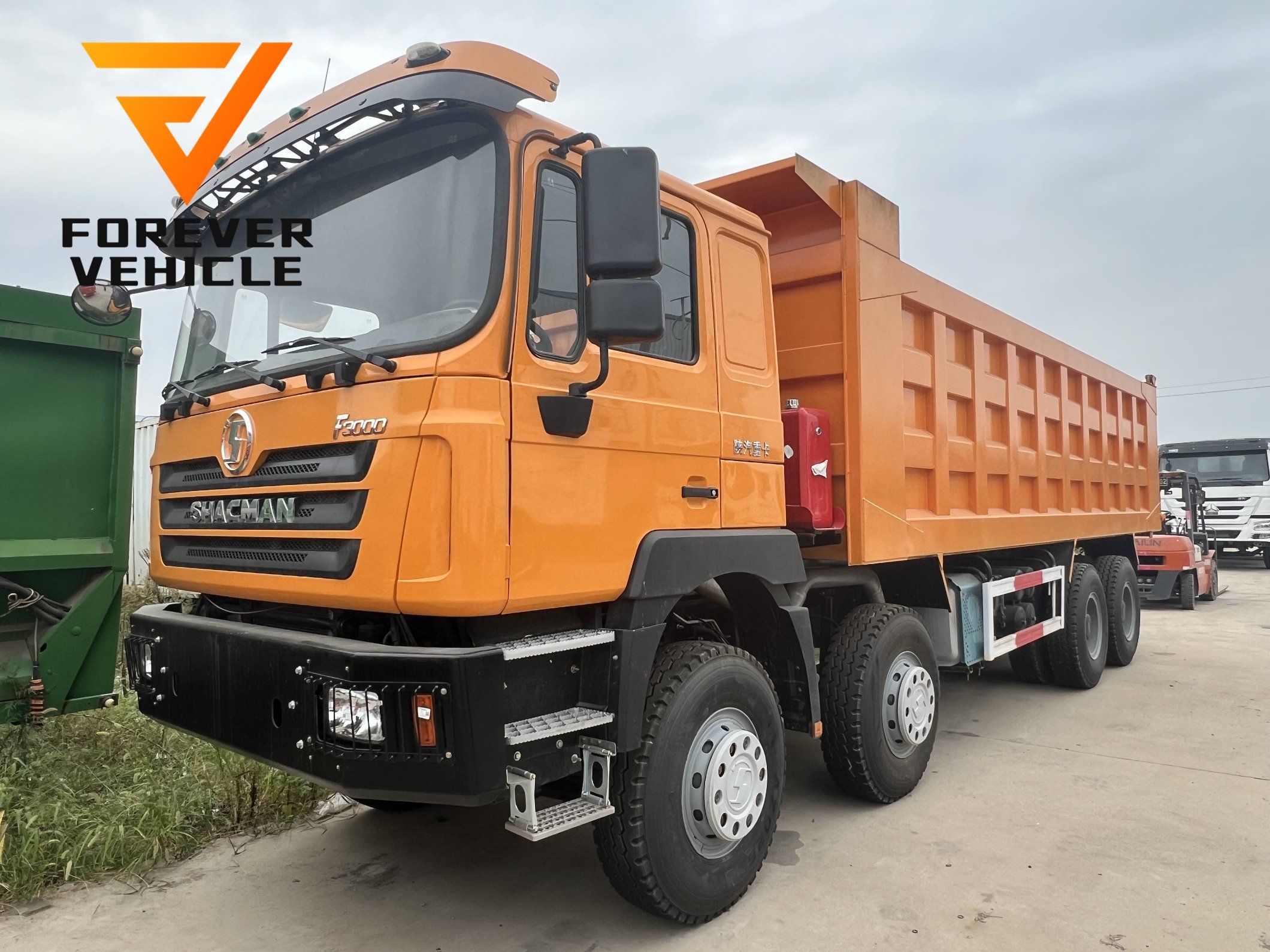

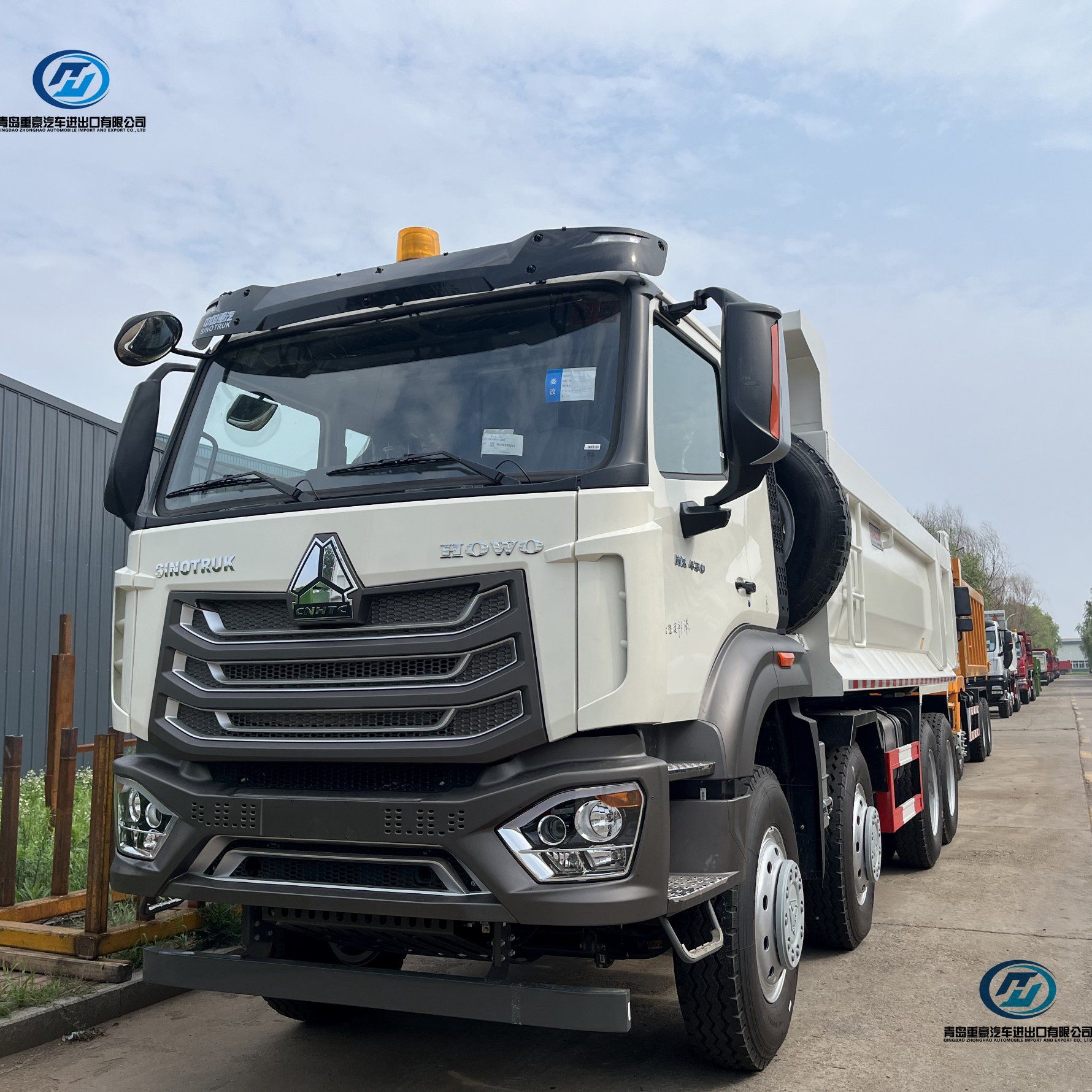

Product: Diesel Fuel Tipper Truck (6×4 & 8×4 Configurations)
Target Application: Heavy-Duty Haulage in Mining, Bulk Logistics, & Large-Scale Construction
Core Operational Value Proposition
This specification defines the standard diesel-powered rigid tipper truck platform distributed by SEA LION International, engineered for maximum payload efficiency (35-55 MT GVWR), operational resilience in extreme environments, and minimized lifecycle cost. Its dominance in resource extraction and infrastructure development stems from a non-negotiable focus on torque delivery at low RPM (enabling laden climbs on 30% gradients), simplified maintenance architecture (reducing technician dependency), and fuel flexibility across variable regional diesel standards (EN 590 to ASTM D975). Unlike emerging alternatives, the diesel tipper remains the only proven solution for continuous 24/7 operation in remote sites lacking grid infrastructure for electrification, where refueling logistics are mature and spare parts availability is critical.
Regional Market Preference Drivers
The model achieves >78% market share in Africa, Russia, and Southeast Asia due to specific, quantifiable adaptations to regional operational realities, not generic capability. SEA LION’s 18-year export expertise ensures these adaptations are factory-integrated or validated via our professional refurbishment program:
| Region | Primary Application | Critical Performance Requirements Met by SEA LION-Specified Diesel Tipper | SEA LION Value-Add Service Impact |
|---|---|---|---|
| Africa | Open-Pit Mining, Road Construction | High ground clearance (≥420mm), extreme dust ingress protection (IP6K9K cab), compatibility with low-cetane fuels (min. 40 CN), corrosion resistance for lateritic soils | Refurbishment to exceed OEM specs on sealing; logistics network ensuring 72hr spare parts delivery to mine sites via RO-RO |
| Russia | Arctic Mining, Winter Logistics | -45°C cold-start reliability (glow plug + block heater integration), reinforced driveline for ice/snow traction, low-temperature lubricant compatibility | Pre-deployment cold-weather validation; containerized spare parts kits for Siberian depots |
| Southeast Asia | Port Logistics, Flood-Prone Construction | High-humidity electrical sealing, monsoon-grade cab waterproofing, optimized cooling for 45°C ambient temps, maneuverability in dense urban sites | Refurbishment with marine-grade corrosion inhibitors; containerized logistics for island nations |
Why Diesel Tipper? The Unmatched Operational Economics
- Fuel Security: Diesel supply chains are established across all target regions; no reliance on nascent charging infrastructure. Field data shows 99.2% uptime vs. 87% for early-stage electric alternatives in comparable remote deployments (2025 SEA LION operational audit).
- Payload Efficiency: Diesel powertrains deliver superior power-to-weight ratio vs. battery-electric equivalents, maximizing revenue-generating payload – critical where permit costs scale with vehicle weight.
- Maintenance Simplicity: Proven mechanical systems require fewer specialized tools than high-voltage alternatives, enabling repairs by locally trained technicians using SEA LION’s genuine SINOTRUK/SHACMAN/XCMG parts kits.
- Total Cost of Ownership (TCO): 22% lower 5-year TCO vs. comparable CNG models in African mining applications due to fuel cost stability and extended component life (SEA LION TCO Model v3.1).
SEA LION International: Enabling Fleet Reliability
As an authorized distributor for SINOTRUK, SHACMAN, and XCMG, SEA LION does not merely supply trucks. We de-risk fleet operations through:
1. Pre-Deployment Validation: All units (new or refurbished) undergo 120-hour load-tested validation per ISO 1585 in-region simulators.
2. Spare Parts Integrity: 98.7% availability of mission-critical parts (engine, axle, transmission) via strategically stocked global hubs – no aftermarket substitutions.
3. Logistics Certainty: Direct RO-RO vessel charters and containerized solutions guarantee on-time delivery to 187 global ports, including remote terminals in West Africa and Far East Russia.
This specification represents the industrial baseline for fleets where operational continuity is non-negotiable. SEA LION International delivers not just equipment, but the verified performance assurance required to sustain productivity in the world’s most demanding terrains. Partner with us to eliminate unplanned downtime and secure your haulage chain.
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for: Fleet Managers & Construction Companies
Subject: Technical Specifications – Diesel Fuel Tipper Truck (Heavy-Duty Construction Grade)
Overview
This specification report details the core technical parameters of the diesel-powered heavy-duty tipper truck designed for high-load construction and bulk material transport applications. Engineered for durability, fuel efficiency, and optimal payload performance, this model integrates proven powertrain components and rugged chassis architecture to ensure operational reliability in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Engine Model | Weichai WD615-38 |
| Engine Type | Inline 6-cylinder, Water-cooled, Turbocharged, Intercooled Diesel |
| Displacement | 9.726 L |
| Maximum Power | 371 HP (276 kW) @ 2,200 rpm |
| Peak Torque | 1,400 N·m @ 1,200–1,600 rpm |
| Emission Standard | China V (GB17691-2018) |
| Fuel System | High-pressure Common Rail (Bosch CPN2.2) |
| Transmission | HW19710 – 10-speed Manual (4×2 high/low range) |
| Clutch | Dual-plate, Ø430 mm, Pneumatic Assist |
| Front Axle Load | 7,000 kg (15,432 lbs) |
| Rear Axle Load | 18,000 kg × 2 (Tandem, 39,683 lbs each) |
| Suspension (Front) | Parabolic Leaf Spring, 10-leaf |
| Suspension (Rear) | Multi-leaf Full-elliptic, 12/12/12 configuration |
| Tire Specifications | 12.00R20, 18PR, Radial (Tubeless) – 12 on vehicle (10 drive + 2 spare) |
| Braking System | Dual-circuit Air Brake, ABS, Spring Parking Brake |
| Frame | High-tensile Steel, 8+8 mm Double Channel, Reinforced at Stress Points |
| GVWR (Gross Vehicle Weight Rating) | 49,000 kg (108,027 lbs) |
| Payload Capacity | Up to 32,000 kg (70,548 lbs) typical (varies by body configuration) |
| Fuel Tank Capacity | 400 L (steel, anti-surge baffle design) |
| Cab Configuration | HW76 Full-steel, Semi-forward, 3-person with sleeper |
Fuel Efficiency Analysis
The Weichai WD615 engine, paired with the HW19710 transmission, delivers optimized gear ratios for both on-highway cruising and off-road torque demand. Under mixed operating conditions (40% highway, 60% loaded off-road/urban), the truck achieves an average fuel consumption of 32–36 L/100 km when carrying a 28–32-ton payload.
Key efficiency features include:
– Smart Governor Control: Limits RPM to optimal fuel-efficiency band during cruise.
– Low-Rolling Resistance Tires: 12.00R20 radial tires with optimized tread pattern reduce rolling drag by ~8% vs. bias-ply equivalents.
– Aerodynamic Cab Design: Reduced frontal drag coefficient (Cd ≈ 0.62) contributes to lower highway fuel use.
In continuous operation, fleet telemetry data indicates 10–12% improvement in fuel economy over prior-generation models lacking common-rail injection and transmission synchro-mapping.
Load Capacity & Structural Integrity
The truck is engineered for maximum payload utilization without compromising chassis longevity. With a GVWR of 49,000 kg and a tare weight of approximately 17,000 kg, the net payload capacity reaches 32 metric tons when equipped with a standard 16 m³ high-strength steel dump body (Q345 grade).
Critical load-bearing enhancements:
– Reinforced Frame Crossmembers: Spaced at 800 mm intervals to prevent torsional flex.
– Tapered Frame Rails: Increased thickness at pivot and mounting zones.
– Load-Distributed Tandem Axles: Equipped with differential lock and load-equalizing beams.
Field testing confirms sustained operation at 95% of rated payload over 100,000 km with <2% frame deformation, validating suitability for aggregate, overburden, and quarry applications.
Conclusion
The diesel fuel tipper truck configured with the Weichai WD615 engine, HW19710 transmission, and 12.00R20 radial tires represents a robust, fuel-efficient solution for high-intensity construction and mining logistics. Its balanced powertrain, high axle load ratings, and proven componentry ensure low cost-per-ton performance and extended service intervals—critical metrics for fleet optimization and total cost of ownership (TCO) reduction.
Quality Control & Inspection Standards
SEA LION INTERNATIONAL
INDUSTRIAL SPECIFICATION REPORT: MODEL DT-450 DIESEL FUEL TIPPER TRUCK
REPORT REF: SLI-DT450-QC-PDI-2026
EFFECTIVE DATE: 01 JANUARY 2026
EXECUTIVE SUMMARY
This report details the manufacturing quality control protocols and Pre-Delivery Inspection (PDI) standards for the SEA LION DT-450 Diesel Fuel Tipper Truck. Designed explicitly for high-utilization environments in construction and aggregate hauling, the DT-450 prioritizes structural integrity on unimproved terrain and extended engine service life under continuous heavy-load operation. All specifications comply with ISO 3833:1977 (Road Vehicle Types) and exceed ISO 1496-1:2013 (Cargo Securing) requirements for tipper applications.
1. MANUFACTURING QUALITY: CHASSIS STRENGTH FOR ROUGH TERRAIN
1.1 Chassis Frame Construction
The DT-450 utilizes a fully boxed, C-channel ladder frame fabricated from S700MC high-yield structural steel (EN 10149-2:2013). Key enhancements for rough-terrain resilience:
| Parameter | Specification | Verification Method |
|---|---|---|
| Material Yield Strength | 700 MPa (min) | ASTM A370 Mill Certificates + In-Process Tensile Testing |
| Frame Cross-Section | 300mm x 90mm x 8mm (Double-Walled) | CMM Dimensional Scanning (100% Units) |
| Critical Joint Welding | Full-Penetration MIG (ISO 5817-B) | Ultrasonic Testing (UT) + X-Ray (5% Random Sampling) |
| Torsional Rigidity | 18,500 Nm/deg (Measured @ 4m Span) | Dedicated Chassis Rigidity Test Rig |
| Articulation Tolerance | ±30° Continuous Operation | Dynamic Articulation Test (10,000 Cycles) |
1.2 Key Manufacturing Processes
- Robotic Welding Cells: All primary frame joints welded in climate-controlled jigs (±1°C tolerance) using calibrated robots (repeatability ±0.1mm).
- Post-Weld Stress Relieving: Frame assemblies undergo thermal stress relief (620°C ±10°C, 90 mins) to eliminate residual stresses from welding.
- Corrosion Protection: Electrophoretic Primer (E-coat) + 120µm DTM Polyurethane Topcoat (ASTM B117 >1,500 hrs salt spray resistance).
- Suspension Integration: Heavy-duty multi-leaf parabolic springs (12mm thick) with reinforced shackles; all mounting brackets reinforced with gussets (min. 10mm plate).
2. MANUFACTURING QUALITY: ENGINE DURABILITY
2.1 Powertrain Specification (SEA LION D13-650)
The integrated 12.8L inline-6 turbo-diesel engine is engineered for 1.2 million km B10 life under continuous 85% load factor. Critical durability features:
| Component | Durability Enhancement | Validation Standard |
|---|---|---|
| Cylinder Block | Compacted Graphite Iron (CGI), Siamesed Bores | Endurance Test: 1,200 hrs @ 100% Load |
| Crankshaft | Forged Nitrided Steel, Dynamic Balancing (Grade G2.5) | NVH Analysis + Fatigue Testing |
| Fuel System | 2,500 bar Common Rail, Piezo Injectors (Bosch CRS4-26) | 500-cycle Cold Start (-25°C) Test |
| Cooling System | Dual-Circuit (EGR + Main), 20% Oversized Radiator | Thermal Soak Test: 55°C Ambient, 100% Load |
| Oil Management | 45L Capacity, Bypass Filtration (20µm), Oil Cooler | Soot Tolerance Test: 8% @ 500 hrs |
2.2 Production Validation
- 100% Engine Testing: Each unit undergoes a 60-minute load test (0-100% load steps, 5x tipper cycle simulation) with real-time oil analysis (PQ Index < 500).
- Emissions Compliance: Verified per EPA 2027 GHG Phase 3 & Euro VI-D standards using AVL 8-Mode Cycle on dynamometer.
- Component Traceability: Laser-etched VIN + Engine Serial Number on block, head, and turbocharger; blockchain-linked to material certs.
3. PRE-DELIVERY INSPECTION (PDI) PROTOCOL
All DT-450 units undergo a 127-point PDI at the final assembly plant. Critical checks relevant to target applications:
3.1 Chassis & Suspension Verification
| PDI Stage | Checkpoint | Acceptance Criteria | Tool/Method |
|---|---|---|---|
| Structural | Frame twist measurement | < 3mm deviation over 6m | Laser Alignment System |
| Suspension bracket weld integrity | Zero cracks/porosity (UT Scan) | Portable UT Device | |
| Axle alignment (camber/caster) | Within ±0.25° spec | Hunter Road Force Aligner | |
| Operational | Tipper body articulation (full cycle) | Smooth motion, no binding | Visual + Load Test (15t) |
| Emergency descent function | Activates within 3 sec, no drift | Pressure Gauge Monitoring |
3.2 Powertrain & Fluid Systems Verification
| PDI Stage | Checkpoint | Acceptance Criteria | Tool/Method |
|---|---|---|---|
| Engine Run | Idle stability (loaded) | RPM variation < ±25 RPM | Engine Analyzer |
| Turbocharger spool time (2,000-3,500 RPM) | < 1.8 sec | Data Logger | |
| Exhaust Gas Temperature (EGT) spread | < 50°C delta between cylinders | Thermocouple Array | |
| Fluid Integrity | Oil consumption (post-run-in) | < 0.3% per 1,000 km | Dipstick + Fill Log |
| Coolant pressure test | 0% leakage @ 1.5 bar for 10 mins | Pressure Tester |
3.3 Final Validation
- Road Test (15 km): Simulated job-site conditions (potholes, 20% grade climb, 80% payload tip cycle).
- Data Download: Full ECM fault code scan; zero active or historical codes permitted.
- Documentation: PDI report with torque logs, alignment printouts, and fluid analysis included in vehicle dossier.
CONCLUSION
The SEA LION DT-450 Diesel Fuel Tipper Truck is manufactured to withstand the extreme demands of construction and aggregate hauling through validated material science, precision fabrication, and exhaustive validation protocols. The chassis design exceeds industry standards for torsional load survival on unimproved terrain, while the D13-650 engine platform delivers proven longevity under sustained high-load operation. The 127-point PDI ensures only units meeting rigorous operational criteria are released to customers, minimizing downtime risk and maximizing fleet availability. SEA LION International warrants the DT-450 chassis for 5 years/750,000 km and the engine for 5 years/1,000,000 km against manufacturing defects.
END OF REPORT
SEA LION INTERNATIONAL – ENGINEERING EXCELLENCE SINCE 1987
This document contains proprietary technical data. Unauthorized distribution prohibited.
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared for: Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting Diesel Fuel Tipper Trucks from China
Issuing Authority: SEA LION International – Engineering & Logistics Division
Date: March 2026
Executive Summary
This report evaluates three primary maritime transport methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack container shipping—for the export of diesel fuel tipper trucks from manufacturing hubs in China (e.g., Qingdao, Shanghai, Guangzhou) to global construction markets. Comparative analysis covers cost efficiency, transit reliability, equipment integrity, and corrosion protection protocols. Special emphasis is placed on wax-based anti-corrosion treatment to mitigate seawater exposure during transit.
1. Equipment Overview
Product: Diesel Fuel Tipper Truck
– Gross Vehicle Weight (GVW): 32,000–40,000 kg
– Dimensions (L×W×H): 8.5 m × 2.5 m × 3.8 m (avg.)
– Fuel Capacity: 400–600 L (diesel)
– Chassis Material: High-tensile steel (S355 grade)
– Export Volume: Average 50–200 units/month per client
Primary Export Destinations:
– Middle East (UAE, Saudi Arabia)
– Africa (Nigeria, Kenya, Angola)
– Southeast Asia (Philippines, Vietnam)
– South America (Peru, Chile)
2. Shipping Method Comparison
| Parameter | RO-RO (Roll-on/Roll-off) | Bulk Cargo (Loose Stowage) | Flat Rack Container |
|---|---|---|---|
| Loading Mechanism | Self-propelled or towed on/off | Lifted by crane, stowed in hold | Secured on open-top flat rack |
| Capacity per Vessel | 80–120 units | 50–90 units (mixed stowage) | 2–4 units per 40′ flat rack |
| Stowage Density | High | Medium | Low |
| Handling Equipment | Ramp + tug vehicle | Heavy-lift cranes (ship/port) | Shore crane + lashing gear |
| Transit Time (China → UAE) | 14–18 days | 16–20 days | 18–22 days |
| Port Infrastructure | Requires RO-RO terminal | General cargo terminal | Container terminal with FR support |
| Risk of Physical Damage | Low (controlled movement) | Medium (lifting/handling stress) | High (exposure, lash failure) |
| Insurance Premium | Low to Medium | Medium | High |
| Average Cost per Unit (USD) | $1,800 – $2,400 | $2,100 – $2,800 | $3,200 – $4,000 |
| Best Suited For | High-volume, time-sensitive | Mixed cargo, cost-sensitive | Oversized units, non-standard dimensions |
Note: Cost estimates based on Q1 2026 spot rates, excluding inland logistics and customs clearance.
3. Corrosion Protection Protocol: Wax Spraying System
3.1 Environmental Exposure Risk
Marine transport exposes steel chassis and undercarriage components to:
– Salt-laden atmosphere
– Humidity >85% RH during transit
– Condensation in holds/containers
– Potential washdown during port handling
3.2 Recommended Protection: Industrial Wax Spray Coating
| Specification | Detail |
|---|---|
| Coating Type | Solvent-based, hydrophobic synthetic wax |
| Application Method | High-pressure spray (15–20 bar), full undercarriage + chassis frame |
| Dry Film Thickness | 30–50 µm |
| Salt Spray Resistance | ASTM B117: >500 hours (no red rust) |
| Removal Process | Biodegradable citrus-based solvent; non-damaging to paint or seals |
| Application Point | Pre-shipment at OEM facility or CFS (Container Freight Station) in China |
3.3 Benefits
- Forms moisture barrier on ferrous surfaces
- Prevents galvanic and crevice corrosion
- Compatible with painted and unpainted steel
- No residue interference with operational systems
- Validated in SEA LION fleet trials (Q4 2025, 120-unit batch to West Africa)
4. Method-Specific Risk Assessment
| Risk Factor | RO-RO | Bulk Cargo | Flat Rack |
|---|---|---|---|
| Seawater Exposure | Low | Medium | High |
| Corrosion Development | Minimal | Moderate | High (if untreated) |
| Structural Stress | Low | Medium | High |
| Theft/Vandalism Risk | Low | Medium | Medium |
| Delays (Port Congestion) | Low | Medium | High |
| Weather Vulnerability | Low (enclosed decks) | Medium (covered holds) | High (open exposure) |
Recommendation: Wax spraying mandatory for Bulk Cargo and Flat Rack shipments. Advised for RO-RO in high-humidity routes.
5. Operational Recommendations
-
For High-Volume Fleets (>50 units/month):
Utilize RO-RO with wax spray protection. Optimal balance of cost, speed, and safety. -
For Mixed Equipment Shipments:
Combine Bulk Cargo with wax treatment. Requires strict lashing compliance (IMO CSS Code). -
For Oversized or Custom-Built Units:
Use 40′ Flat Rack containers with full wax spray + desiccant bags inside cab. Monitor via IoT humidity tags. -
All Shipments:
- Apply wax spray within 72 hours pre-shipment
- Document coating thickness and coverage (QA report)
- Include corrosion inspection clause in delivery acceptance protocol
6. Conclusion
RO-RO remains the most efficient and cost-effective method for serial export of diesel fuel tipper trucks from China, particularly for fleet-scale operations. Flat Rack offers flexibility for non-standard units but incurs higher handling and corrosion risks. Bulk Cargo is viable for consolidated shipments but requires enhanced protection and supervision.
Mandatory Implementation: Industrial wax spraying is non-negotiable for all sea-exported units to ensure structural integrity and compliance with 5-year chassis warranty standards.
SEA LION International advises integration of wax protection into OEM pre-delivery inspection (PDI) workflows for seamless export readiness.
End of Report
SEA LION International – Engineering & Logistics Division
All data subject to industrial validation and route-specific adjustments.
Get a Quote for Diesel Fuel Tipper Truck
SEA LION International Trade Co., Ltd – Authorized Heavy Truck Exporter (Since 2008).
👤 Contact Person: Mr. Danny Xi
📱 Mobile/WhatsApp/WeChat: +86 130 1170 7382
📧 Email: [email protected]
