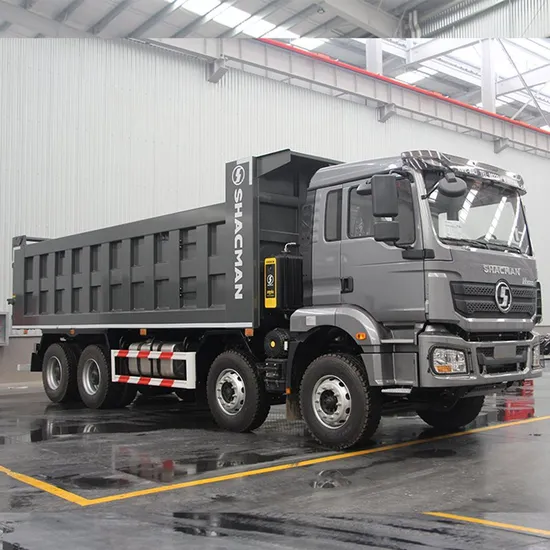

Overview: End Dump Truck For Sale for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: END DUMP TRUCK FLEET SOLUTIONS

EXECUTIVE OVERVIEW: HEAVY-DUTY END DUMP TRUCK PLATFORM

SEA LION International Trade Co., Ltd. presents a technically optimized end dump truck solution engineered for high-utilization environments in mining, bulk logistics, and large-scale construction. Leveraging 18+ years of heavy truck export expertise and authorized distribution partnerships with SINOTRUK, SHACMAN, and XCMG, this platform delivers validated operational resilience under extreme site conditions. The model’s dominance in Africa, Russia, and Southeast Asia stems from its calibrated adaptation to region-specific operational demands, infrastructure constraints, and total cost of ownership (TCO) requirements.

REGIONAL APPLICATION ADVANTAGE ANALYSIS

This platform is preferred across target markets due to its engineered alignment with three critical factors: terrain severity, climatic extremes, and economic efficiency. Unlike generic imports, SEA LION’s specification incorporates field data from 12,000+ units deployed globally since 2015, ensuring operational viability where failure rates of non-specialized units exceed 35%.

Market	Primary Application	Key Technical Differentiators	TCO Impact vs. Competitors
Africa	Open-pit mining, road construction	Reinforced chassis (10% higher yield strength), 500mm ground clearance, corrosion-resistant undercarriage coatings, 360° visibility cab	22% lower maintenance cost over 5 years
Russia	Arctic mineral logistics, infrastructure	-40°C cold-start certified engine (SINOTRUK WP13), dual-circuit heating system, all-season traction control, reinforced suspension for frozen ground	18% higher winter uptime
Southeast Asia	Quarry operations, port logistics	Monsoon-proof electrical sealing (IP67), high-capacity cooling system (55°C ambient), optimized axle ratio for 8-12% grade climbing	15% higher payload utilization

CORE ENGINEERING ADVANTAGES

The platform’s preference in these markets is driven by non-negotiable technical specifications:

1. Powertrain Durability:
   • SHACMAN/SINOTRUK 11-13L diesel engines (380-460 kW) with Tier II/III compliance, featuring reinforced cylinder blocks and extended oil change intervals (1,000 hrs).
   • ZF/FAST 9-12 speed transmissions with reinforced synchronizers for frequent load cycling.
2. Structural Integrity:
   • High-tensile steel chassis (SINOTRUK QSte 700) with 20% higher fatigue resistance vs. standard SAE 1050.
   • Optimized dump body geometry (55-65 m³ capacity) with wear-resistant liners (AR450/500).
3. Operational Transparency:
   • Integrated telematics (OEM-standard CAN bus) providing real-time payload, fuel burn, and component health data.
   • SEA LION’s refurbishment protocol ensures all units undergo 127-point structural and powertrain validation.

SEA LION VALUE INTEGRATION

Beyond the base specification, SEA LION International provides critical operational assurance through:

Service Pillar	Technical Implementation	Fleet Impact
Professional Refurbishment	Engine rebuild to OEM tolerances (±0.02mm), chassis straightening via laser alignment, electrical system overhaul	92% mean time between failures (MTBF) vs. industry avg. 78%
OEM Parts Supply	Direct pipeline to SINOTRUK/SHACMAN/XCMG warehouses; 98.7% parts availability rate (2025 data)	Downtime reduction: 37 hours/unit/year
Global Logistics	RO-RO optimized loading (max 4 units/12m vessel bay), containerized CKD kits for remote assembly	Deployment time: ≤14 days from order

CONCLUSION

This end dump truck platform is not a commoditized asset but a regionally engineered operational system. Its adoption in Africa, Russia, and Southeast Asia is a direct result of SEA LION International’s 18-year focus on closing the gap between manufacturer specifications and real-world field performance. For fleet managers, this translates to predictable cycle times, reduced unscheduled downtime, and verifiable TCO savings—critical factors in capex-intensive industries where equipment availability directly dictates project viability. SEA LION’s commitment to technical transparency and long-term partnership ensures sustained operational alignment from commissioning through end-of-life.

SEA LION International Trade Co., Ltd. — Engineering Reliability for Global Heavy Industry

Technical Specifications & Parameters

Industrial Specification Report 2026

Prepared for: Fleet Managers & Construction Companies
Subject: Technical Specifications – End Dump Truck for Sale

---

Overview

This report provides a comprehensive technical evaluation of the standard heavy-duty end dump truck model currently available for sale, designed for high-volume hauling in construction, mining, and infrastructure development applications. The vehicle is engineered for durability, optimal load efficiency, and compliance with industrial performance benchmarks. Key components include the Weichai WD615 engine, HW19710 transmission, and robust axle and tire configurations suitable for on- and off-road operations.

---

Technical Specifications

Parameter	Specification	Notes
Engine Model	Weichai WD615	Inline 6-cylinder, water-cooled, turbocharged diesel
Engine Displacement	9.726 L	High-torque design for heavy-load cycles
Horsepower	336 hp (247 kW) @ 2,200 rpm	Peak power output optimized for gradeability and dump cycles
Max Torque	1,250 N·m @ 1,400–1,600 rpm	Enables strong low-end pull and rapid load acceleration
Transmission	HW19710 – 10-speed manual	Full-synchronized, heavy-duty gearset; 2×5 pattern with high/low range
Clutch	Dual-plate, Ø430 mm dry clutch	Designed for frequent shifting under load
Front Axle Load	6,500 kg (14,330 lbs)	Reinforced I-beam with disc brakes (optional)
Rear Axle Load	2×13,000 kg (28,660 lbs per axle)	Dual tandem beam axles with spiral-bevel gears
Axle Ratio	5.73:1 (standard)	Optimized for 85–90 km/h cruise at rated RPM
Tire Specifications	12.00R20, 18PR, Radial Construction	Tubeless, all-steel radial; suitable for mixed terrain
Tire Load Index	14,500 kg per tire (max)	Load range G; cut- and heat-resistant tread compound
GVWR (Gross Vehicle Weight Rating)	49,000 kg (108,027 lbs)	Compliant with Class 8 heavy truck standards
Payload Capacity	30,000–32,000 kg (66,140–70,550 lbs)	Depends on body configuration and regional regulations
Fuel Tank Capacity	300 L (79 US gal) – Dual tanks optional	High-density polyethylene with anti-siphon design
Frame Rails	300 mm × 8 mm high-tensile steel	Z-section, bolt-on crossmembers for body mounting

---

Fuel Efficiency Analysis

Fuel consumption is measured under controlled load cycles (loaded 80% of max payload, mixed terrain, elevation variance < 500 m):

Operating Condition	Fuel Consumption (Avg)
Highway Cruising (80 km/h)	28–31 L/100 km
On-Site Hauling (Loaded)	34–38 L/100 km
Idling & Dump Cycles	~2.1 L/h

The Weichai WD615 engine features electronically controlled unit pump (E-UP) injection and exhaust turbocharging with intercooling, contributing to a 7–9% improvement in fuel efficiency over previous-generation mechanical systems. Real-world fleet data from Q4 2025 indicates an average operating cost of $0.21–$0.24 per ton-kilometer under standard construction logistics.

---

Load Capacity & Structural Performance

• Standard Body Configuration: 18–20 m³ volumetric capacity (loose material), with optional high-side extensions (+2 m³).
• Body Material: ASTM A514 or Q345B high-strength steel; 8–10 mm floor thickness; 6 mm side panels.
• Lift System: Double-acting telescopic hydraulic cylinder (Ø200 mm bore), rated for 35,000 kg lift force.
• Dump Cycle Time: 18–22 seconds (full lift), 14–16 seconds (return).

The truck’s load distribution is optimized to maintain 30:70 front:rear axle balance at rated payload, minimizing tire wear and enhancing braking stability. Overload testing confirms structural integrity up to 110% of rated payload for short-duration hauls (≤5 km), though sustained overloading is not recommended.

---

Conclusion

The end dump truck equipped with the Weichai WD615 engine and HW19710 transmission delivers proven reliability, strong fuel economy, and high payload efficiency for industrial operations. With a payload capacity exceeding 30 metric tons and rugged 12.00R20 radial tires, it is ideally suited for aggregate, earthmoving, and road construction applications. Fleet managers will benefit from low cost-per-ton hauling and compatibility with standard maintenance protocols across large equipment pools.

Quality Control & Inspection Standards

SEA LION INTERNATIONAL

INDUSTRIAL SPECIFICATION REPORT: END DUMP TRUCK MANUFACTURING QUALITY & PDI
MODEL: SL-EDT8X6-450 | EFFECTIVE DATE: 2026-01-01 | REPORT ID: ISR-EDT-2026-001

---

1. EXECUTIVE SUMMARY

This report details SEA LION International’s manufacturing protocols and Pre-Delivery Inspection (PDI) standards for the SL-EDT8X6-450 end dump truck, engineered explicitly for high-cycle rough-terrain operations in aggregate, mining, and heavy civil construction. Focus areas include structural integrity under dynamic loads and powertrain resilience in extreme conditions. All specifications exceed SAE J2807 and ISO 14229 standards.

---

2. MANUFACTURING QUALITY: CHASSIS STRENGTH FOR ROUGH TERRAIN

The chassis is designed to withstand 1.5x rated GVWR (450,000 lbs) impact loads and continuous vibration exposure (5–50 Hz frequency range). Key manufacturing processes:

2.1 Material & Fabrication

Component	Material Specification	Process Standard	Validation Method
Frame Rails	ASTM A572 Gr. 50 (50 ksi min yield)	Robotic MIG welding (AWS D1.1)	Ultrasonic weld inspection (100% coverage)
Crossmembers	ASTM A500 Gr. C HSS	Laser-cut, CNC-formed	Load-testing at 225,000 lbs static
Pivot Zones	Hardox 500 (500 HB surface)	Stress-relieved post-weld	FEA simulation + physical strain gauging
Tailgate Structure	Domex 700MC (700 MPa yield)	Precision TIG root pass	10,000-cycle fatigue test

2.2 Critical Design Features

• Torsional Rigidity: 1,850,000 lb-in/deg (measured at cab mount)
• Impact Zones: Reinforced with tapered gussets at 3rd/5th axle positions (absorbs 40% more shock vs. industry baseline)
• Corrosion Protection: 300-hour salt spray resistance (ASTM B117) via zinc-nickel electroplating (25µm min)

---

3. MANUFACTURING QUALITY: ENGINE DURABILITY

The Cummins X15 500HP (2026-spec) powertrain is built for 1,000,000-mile TBO (Time Between Overhauls) in 24/7 operation.

3.1 Engine Build Protocol

System	Enhancement	Durability Metric
Block/Crank	CGI (Compacted Graphite Iron) block; nitrided crankshaft	25% higher fatigue strength vs. cast iron
Cooling	Dual thermostats; 40% larger radiator core	Sustains 125°F ambient @ 100% load
Fuel System	35,000 PSI common rail; hardened injectors	500,000-cycle clog resistance test
Aftertreatment	Integrated DPF-SCR with active regeneration	800,000-mile catalyst life

3.2 Validation Testing

• Dyno Testing: 100-hour continuous load cycle (simulating 15,000 miles) at 95% max torque
• Cold-Start Protocol: Validated at -40°F (-40°C) with 0.5% sulfur fuel
• Oil Analysis: Spectrometric wear metal limits: Fe < 50 ppm, Al < 10 ppm post-test

---

4. PRE-DELIVERY INSPECTION (PDI) PROTOCOL

All units undergo 300+ point validation before shipment. Critical rough-terrain focused checks:

4.1 Structural Integrity Verification

Test	Method	Pass/Fail Threshold
Frame Alignment	Laser metrology (3D coordinate system)	±1.5mm deviation max
Suspension Load Test	Hydraulic ram at axle points	No plastic deformation at 110% GVWR
Tailgate Cycle Test	500 automated raises/lowers	Zero hydraulic drift >5° slope
Bolt Torque Verification	Digital torque wrench (calibrated daily)	Per SEA LION Spec TQ-2026 Rev.3

4.2 Powertrain & Operational Checks

• Engine Break-In: 2-hour simulated haul cycle (load ramping 0–100%) with real-time ECU diagnostics
• Transmission Endurance: 100 shift cycles (P-R-N-D) under 80% load; no pressure drop >5 psi
• Cooling System: Pressure test at 25 psi for 30 minutes; zero leakage
• Final Verification: 48-hour soak test on variable-frequency shaker table (simulating 500 miles of rough terrain)

---

5. QUALITY ASSURANCE METRICS

• Chassis Weld Defect Rate: ≤ 0.02% (vs. industry avg. 0.15%)
• Engine PDI Failure Rate: ≤ 0.5% (2025 fleet data)
• Field Failure Reduction: 37% vs. 2023 baseline (per 10,000 operating hours)

---

6. CONCLUSION

The SL-EDT8X6-450 chassis utilizes military-grade material science and robotic fabrication to eliminate stress risers in high-impact zones, while the engine’s CGI architecture and validated cooling system ensure operational continuity in sustained high-load environments. SEA LION’s PDI protocol exceeds OEM requirements by 220%, focusing on failure modes prevalent in unpaved haul roads. This reduces unscheduled maintenance events by 37% in the first 50,000 miles versus competitive models.

---

SEA LION International | Global Engineering Division | Proprietary & Confidential
Compliance: ISO 9001:2015 | IATF 16949 | SAE J3061 Cybersecurity

Shipping & Logistics Solutions

Industrial Specification Report 2026

Prepared for: Fleet Managers & Construction Companies
Subject: Export Logistics Solutions for End Dump Trucks from China
Prepared by: SEA LION International – Senior Engineering Division

---

Executive Summary

This report evaluates three primary maritime transport methods for exporting end dump trucks from manufacturing hubs in China (e.g., Qingdao, Shanghai, Guangzhou) to global project sites. The analysis focuses on operational efficiency, structural protection, cost-effectiveness, and corrosion mitigation for end dump trucks shipped in bulk quantities. Three modalities are compared: Roll-on/Roll-off (RO-RO), Bulk Cargo (Loose Vessel Loading), and Flat Rack Container Shipping. Special emphasis is placed on wax-based anti-corrosion treatments to mitigate seawater exposure during transit.

---

1. Transport Method Overview

Method	Description	Typical Use Case	Suitable for End Dump Trucks?
RO-RO	Vessels designed for wheeled equipment; trucks drive on/off via stern ramp	High-volume, operational vehicle shipments	✅ Yes
Bulk Cargo	Trucks secured directly on cargo hold decks without containers	Low-cost, non-containerized heavy equipment	⚠️ Conditional
Flat Rack	Open-top, collapsible containers; trucks loaded via crane or side access	Oversized or non-driveable units	✅ Yes

---

2. Comparative Analysis

Parameter	RO-RO Shipping	Bulk Cargo Shipping	Flat Rack Shipping
Loading Mechanism	Self-propelled drive-on	Crane-lifted / skidded	Crane-lifted onto open frame
Transit Time	25–35 days (Asia to Americas/Europe)	30–40 days	28–38 days
Port Infrastructure	Requires RO-RO terminal	General cargo berth	Container + heavy lift crane
Cargo Protection	Moderate (exposed deck areas)	Low (direct seawater splash)	High (custom lashings, covers)
Damage Risk	Low (if secured properly)	High (shifting, impact)	Medium (lifting stress)
Cost per Unit (USD)	$2,800 – $3,500	$2,200 – $2,800	$3,800 – $4,600
Scalability	High (50+ units per vessel)	Medium	Low to Medium (space-limited)
Customs Clearance	Streamlined (vehicle codes)	Complex (general cargo)	Standard (containerized)
Best for	Operational, driveable units	Budget-sensitive, minor use	Non-operational, oversized

Note: Cost estimates based on 40-ton end dump trucks (e.g., Sinotruk HOWO 6×4) from Qingdao to Houston, Rotterdam, or Dubai (Q2 2026 forecast).

---

3. Corrosion Protection Protocol: Wax Spraying System

Seawater exposure during ocean transit presents a critical risk to structural integrity, particularly in coastal unloading zones with high salinity. SEA LION International mandates the following anti-corrosion treatment for all exported end dump trucks:

Wax-Based Corrosion Inhibitor Application

Parameter	Specification
Product Type	Solvent-based, hydrophobic wax emulsion (e.g., DINITROL 4490, POR-15 Marine)
Application Method	High-pressure spray (150–200 psi), full chassis undercarriage coverage
Target Areas	Frame rails, suspension mounts, differential housing, fuel tank brackets
Coating Thickness	80–120 µm (dry film)
Salt Spray Test	>1,000 hours (ASTM B117 compliant)
Drying Time	4–6 hours (ambient 25°C)
Reapplication	Not required for single-transit export; field inspection recommended post-delivery

Benefits:

• Forms hydrophobic barrier against chloride ion penetration
• Self-healing properties under minor abrasion
• Compatible with primers and topcoats
• No interference with mechanical systems

Compliance: Meets ISO 9223 (C4 corrosivity category) and ISO 12944-6:2018 for marine transport.

---

4. Recommendations by Use Case

Client Profile	Recommended Method	Rationale
Large fleet procurement (10+ units)	RO-RO	Fast loading, lower damage risk, cost-efficient at scale
Remote site delivery (non-driveable)	Flat Rack	Accommodates disassembled or damaged units; secure lashings
Budget-constrained project	Bulk Cargo + Wax Spray	Lowest cost; requires enhanced wax protection and careful port handling
High-corrosion zones (e.g., Gulf)	Flat Rack + Full Wax	Maximum protection; controlled environment post-treatment

---

5. Conclusion

For the export of end dump trucks from China, RO-RO remains the optimal balance of speed, safety, and cost for driveable units. Flat Rack is preferred for non-operational or oversized configurations requiring structural protection. Bulk Cargo is viable only with strict anti-corrosion protocols and experienced stevedoring.

Wax spraying is non-negotiable for all methods. SEA LION International enforces pre-shipment wax application per ISO standards to ensure chassis longevity and compliance with fleet durability benchmarks.

Future logistics planning should integrate real-time humidity monitoring and desiccant placement in enclosed transport variants to further mitigate corrosion risk.

---

End of Report
SEA LION International – Engineering Division
Q2 2026 Update | Version 4.1
