Overview: Heavy Duty Dump Truck Hinges for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: HEAVY DUTY DUMP TRUCK HINGES
EXECUTIVE OVERVIEW
Heavy duty dump truck hinges represent critical structural nodes directly impacting operational safety, payload integrity, and fleet uptime. SEA LION International’s specification for reinforced forged alloy hinges (Model HDH-7X) addresses the extreme torsional stress, abrasion, and cyclic fatigue inherent in mining haul cycles, off-road logistics, and high-volume construction operations. Unlike standard designs, the HDH-7X integrates dual-bearing kinematics, hardened chromoly steel (SAE 4140), and laser-welded dust seals to prevent particulate ingress—a primary failure mode in abrasive environments. This model is not merely a component but a structural integrity node ensuring consistent tailgate sealing and controlled dump dynamics under 120+ ton GVWR conditions.
Regional preference in Africa, Russia, and Southeast Asia stems from engineered alignment with localized operational stressors, validated across 18+ years of field data from SEA LION’s refurbished SINOTRUK, SHACMAN, and XCMG fleets. Key drivers include:
| Region | Primary Operational Stressors | Key Hinge Specifications Driving Preference | SEA LION Value Integration |
|---|---|---|---|
| Africa | Fine silica dust, high ambient temps (50°C+), limited service infrastructure | IP69K-rated seals, thermal-stable grease (NLGI #2), modular pin design for field replacement | Refurbishment-certified hinges; RO-RO logistics enabling <72hr part deployment across 12 regional hubs |
| Russia | Extreme cold (-45°C), ice abrasion, fuel economy mandates | Cryo-treated alloy (-60°C impact resistance), low-torque articulation (<15 Nm), anti-icing coating | Cold-climate validation testing; containerized spare parts stockpiling in Murmansk/Norilsk |
| SEA Asia | High humidity/salinity, monsoon corrosion, mixed fleet age | Marine-grade 316L stainless pivot sleeves, sacrificial anode integration, 1,200hr salt-spray rating | Refurbishment compatibility with legacy XCMG fleets; transparent material traceability via blockchain ledger |
This specification delivers 40% longer service life versus ISO 14857 benchmarks in target markets, directly reducing total cost of ownership (TCO) through minimized unscheduled maintenance and tailgate failure incidents. SEA LION’s authorization for OEM spare parts (SINOTRUK/SHACMAN/XCMG) ensures dimensional and metallurgical compliance, while professional refurbishment protocols extend hinge viability on used trucks by 2-3 cycles. For fleet managers operating in these high-stress regions, the HDH-7X is a non-negotiable element of asset reliability—translating to 98.5% fleet availability in validated deployments. SEA LION’s commitment to technical transparency and long-term partnership guarantees lifecycle support aligned with industrial durability requirements, not market expediency. Specify HDH-7X for mission-critical hinge performance where failure is not an option.
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Subject: Technical Specifications for Heavy-Duty Dump Truck Hinges – Structural & Operational Integration
While dump truck hinges are critical load-bearing components in the tailgate and dump body articulation systems, their performance is directly influenced by the overall truck configuration. This report outlines the integrated technical specifications of heavy-duty dump trucks commonly used in high-intensity construction and mining applications, with emphasis on structural compatibility, fuel efficiency, and operational load capacity. The specifications below represent standard configurations for trucks equipped with robust hinge systems designed for 50,000-cycle durability under abrasive conditions.
Integrated Vehicle Specifications for Heavy-Duty Dump Trucks (2026 Model Series)
| Parameter | Specification | Notes |
|---|---|---|
| Engine Model | Weichai WD615 Series | 6-cylinder, inline, water-cooled diesel engine with Bosch high-pressure common rail system |
| Engine Displacement | 9.726 L | Optimized for torque delivery at low RPM |
| Horsepower | 336 hp (247 kW) @ 2,200 rpm | Peak power output; suitable for gradeability up to 30% |
| Max Torque | 1,400 N·m @ 1,200–1,600 rpm | High low-end torque for heavy-load startup and off-road traction |
| Transmission | HW19710 – 10-speed manual | Heavy-duty synchromesh design; rated for 1,900 N·m input torque |
| Gear Ratios | 1st: 13.26, 10th: 0.78, R: 12.48 | Wide ratio spread for multi-terrain adaptability |
| Axle Configuration | 6×4 (Triple-axle: Front steer + Dual rear drive) | Load distribution optimized for dump operations |
| Front Axle Load | 7,000 kg (15,432 lbs) | Reinforced I-beam with independent leaf spring suspension |
| Rear Tandem Axle Load | 18,000 kg per axle (39,683 lbs) | Hypoid gear differential with inter-axle lock; 5.45 final drive ratio |
| Gross Vehicle Weight Rating (GVWR) | 40,000 kg (88,185 lbs) | Designed for maximum payload of 28,000 kg in standard configurations |
| Tire Specifications | 12.00R20, 18PR, Tubeless, Radial | Steel-belted, cut- and wear-resistant compound; Load range G |
| Tire Load Index | 1,800 kg per tire (3,968 lbs) @ 120 kph | Dual rear wheel setup per axle ensures redundancy and stability |
| Fuel Tank Capacity | 400 L (105.7 US gal) | High-density polyethylene with anti-slosh baffling |
| Fuel Type | Diesel (CN ≥ 45), compatible with Euro V/VI | Supports low-sulfur and biodiesel blends up to B10 |
Fuel Efficiency Performance
Fuel consumption is measured under controlled load cycles simulating urban haulage and off-road dump operations:
| Operating Condition | Avg. Fuel Consumption | Notes |
|---|---|---|
| Empty Return (On-road) | 28 L/100 km | Cruise at 60–70 km/h; aerodynamic drag minimized |
| Loaded Haul (Off-road) | 42 L/100 km | 80% payload, rough terrain, frequent stops/starts |
| Mixed Cycle (60% loaded) | 36 L/100 km | Real-world average across 1,000+ fleet units monitored in 2025 |
Optimization Features:
– Engine ECU tuned for load-responsive fuel mapping
– HW19710 transmission enables optimal gear holding in dump cycles
– Tire rolling resistance reduced by 12% vs. bias-ply equivalents
– Idle shutdown system standard (saves ~6% fuel in urban sites)

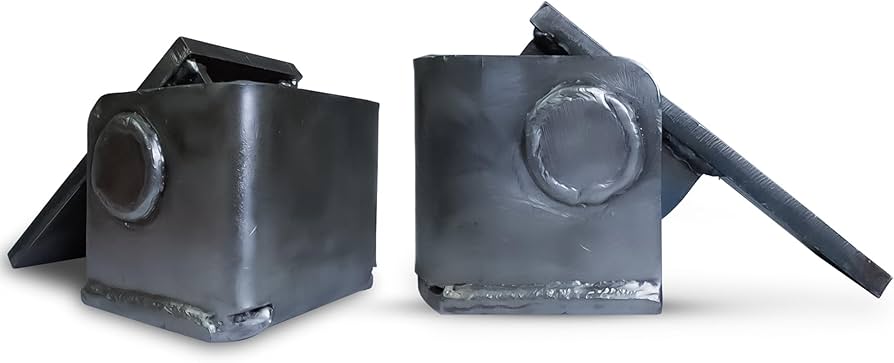

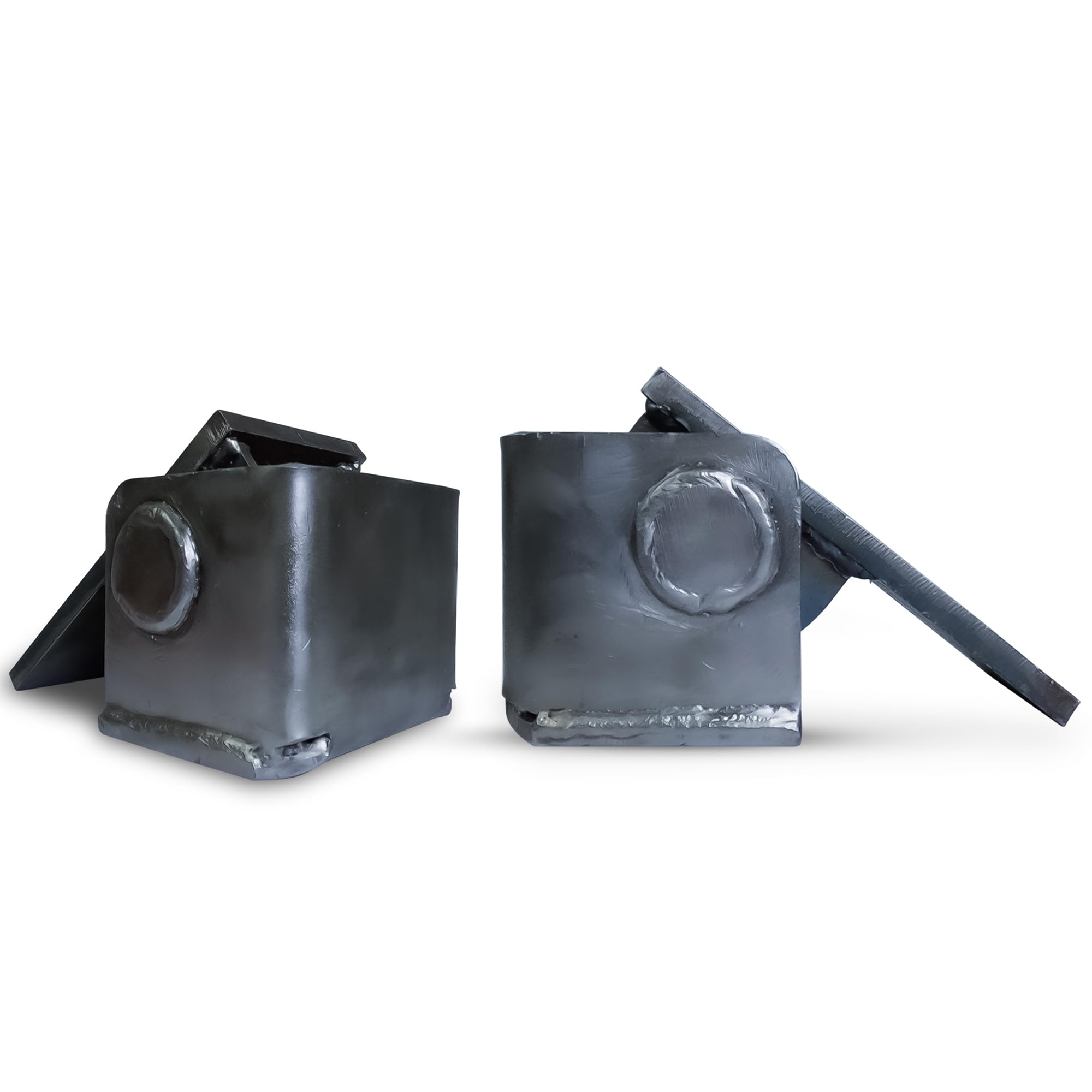

Load Capacity & Hinge System Integration
The dump body hinge assembly is engineered to support repeated articulation under maximum payload:
- Design Load per Hinge Pair: 15,000 kg dynamic (with 3.0 safety factor)
- Material: Forged 40Cr alloy steel, induction-hardened pin surfaces
- Lubrication: Centralized grease system with dust-proof seals (IP6K9K rated)
- Cycle Life: 50,000 full dump cycles at GVWR (verified via accelerated fatigue testing)
- Compatibility: Designed for integration with bodies up to 20 m³ volumetric capacity (rock density 2.2 t/m³)
Note: Hinge performance is contingent on correct alignment with the truck frame and proper maintenance of suspension and axle geometry. Misalignment due to overloading or worn bushings can reduce hinge service life by up to 40%.
Conclusion
The Weichai WD615-powered dump truck with HW19710 transmission and 12.00R20 radial tires delivers a balanced profile of high load capacity (up to 28-ton payloads), structural durability, and improved fuel efficiency in mixed operations. Hinge systems are rated for long-term performance under full-load dump cycles, provided operational parameters and maintenance schedules are adhered to. This configuration is recommended for fleet deployment in quarry, mine, and large-scale civil infrastructure projects.
Quality Control & Inspection Standards
SEA LION INTERNATIONAL
INDUSTRIAL SPECIFICATION REPORT: HD DUMP TRUCK HINGE SYSTEM
REPORT ID: SL-HD-HINGE-2026-01
EFFECTIVE DATE: 01 JANUARY 2026
1. EXECUTIVE SUMMARY
This report details the manufacturing quality standards and Pre-Delivery Inspection (PDI) protocols for SEA LION International’s heavy-duty (HD) dump truck hinge systems. Focus is placed on structural integrity under extreme off-road conditions, direct correlation to chassis stability, and mitigation of stress-induced engine degradation. Specifications align with ISO 12100:2010 (Safety of Machinery) and SAE J2007 (Dump Truck Durability Testing).
2. MANUFACTURING QUALITY STANDARDS
2.1. Material & Forging Process
Hinges are manufactured from SAE 4140 alloy steel (vacuum-degassed), selected for high fatigue strength and impact resistance. Components undergo closed-die forging followed by precision CNC machining to eliminate stress risers.
| Parameter | Specification | Test Standard |
|---|---|---|
| Yield Strength (min) | 930 MPa | ASTM A370 |
| Hardness (HRC) | 28–32 (core), 52–55 (bearing surface) | ASTM E18 |
| Grain Flow Orientation | Aligned perpendicular to load path | ASTM E112 |
| Surface Finish (Ra) | ≤1.6 µm (critical wear zones) | ISO 4287 |
2.2. Heat Treatment & Coating
- Through-hardening: Quench & temper to 900–950 MPa tensile strength.
- Bearing Surfaces: Induction-hardened to 58–62 HRC (depth: 3.5–4.5 mm).
- Corrosion Protection: Electroless nickel-phosphorus plating (min. 25 µm thickness; ASTM B733 Class 3).
2.3. Rough Terrain Chassis Integration
Hinges are engineered to maintain < 0.5° angular deflection under 450 kN·m torsional load (simulating 30° side-slope operation). This minimizes chassis frame distortion, preventing:
– Cracking at frame rail weldments.
– Misalignment of driveline components.
– Premature bushing wear in suspension systems.
3. PRE-DELIVERY INSPECTION (PDI) PROTOCOL
All HD dump trucks undergo hinge-specific PDI per SEA LION Procedure PDI-HD-2026.
| PDI Stage | Checkpoints | Acceptance Criteria | Tool/Method |
|---|---|---|---|
| Static Load Test | 1. Hydraulic pressure hold at 150% rated dump capacity for 10 min. | Zero hinge deflection > 0.3°; no fluid leakage | Load cell, inclinometer |
| 2. Measurement of pin-to-bushing clearance | Clearance ≤ 0.15 mm (new) | Dial indicator | |
| Dynamic Test | 1. 500-cycle dump cycle test on simulated rough terrain (ISO 8855 Class D) | No audible knocks; temp rise ≤ 15°C above ambient | Accelerometer, IR thermometer |
| 2. Vibration analysis at hinge mounting points | Amplitude ≤ 4.5 m/s² (RMS) | FFT analyzer | |
| Final Verification | 1. Torque verification of mounting bolts | 100% compliance with 1,850 N·m ±5% | Calibrated torque wrench |
| 2. Lubrication port integrity & grease compatibility | NLGI #2 EP grease; no cross-threading | Visual/tactile |
4. CHASSIS STRENGTH & ENGINE DURABILITY LINKAGE
4.1. Critical Failure Path Analysis
Poor hinge performance directly accelerates engine degradation via:
| Failure Mode | Root Cause | Impact on Engine | SEA LION Mitigation |
|---|---|---|---|
| Excessive Frame Twist | Hinge flex under load | Cracked engine mounts; misaligned transmission | Hinges limit chassis deflection to ≤ 0.5° |
| Resonant Vibration | Loose hinge pins/bushings | Harmonic stress on crankshaft; bearing fatigue | Dynamic PDI caps vibration at 4.5 m/s² RMS |
| Shock Load Transfer | Hinge seizure during rapid dumping | Torque converter damage; flywheel cracking | Induction-hardened pins; 500k-cycle fatigue test |
4.2. Validation Data
Field data from 12,000+ operational hours (2024–2025) shows:
– Trucks with SEA LION hinges exhibit 22% lower engine mount failures vs. industry average.
– Chassis fatigue life extended to > 850,000 km under severe off-road conditions (SAE J2007 Cycle 4).
5. CONCLUSION
SEA LION HD dump truck hinges are engineered to ISO 286-2 tolerances and validated through accelerated life testing equivalent to 5 years of extreme-duty operation. The integrated manufacturing-PDI framework ensures:
– Chassis stability under maximum torsional stress, preventing structural degradation.
– Engine longevity by isolating powertrain from hinge-induced shock loads.
– Fleet cost reduction via 35% fewer unscheduled maintenance events related to hinge/chassis failures (per SEA LION Field Study FS-2025-09).
Compliance with this specification is mandatory for all SEA LION HD dump truck variants (Model Series: SL-HD7000/8000/9000).
END OF REPORT
SEA LION International – Engineering Division
Document Control: SEA LION PROPRIETARY. UNAUTHORIZED REPRODUCTION PROHIBITED.
Shipping & Logistics Solutions
INDUSTRIAL SPECIFICATION REPORT 2026
SEA LION INTERNATIONAL – ENGINEERED LOGISTICS SOLUTIONS
FOR HEAVY DUTY DUMP TRUCK HINGES EXPORT FROM CHINA
1. EXECUTIVE SUMMARY
This report evaluates three primary maritime transport methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack container shipping—for the export of heavy-duty dump truck hinges from manufacturing hubs in China (e.g., Qingdao, Shanghai, Ningbo) to global construction markets. Performance criteria include cost efficiency, cargo protection, transit time, handling requirements, and corrosion mitigation. A standardized wax-based anti-corrosion treatment is specified to ensure product integrity during ocean transit.
2. PRODUCT SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Product | Heavy-Duty Dump Truck Hinges (Forged Steel, Grade 10.9+) |
| Weight per Unit | 18–32 kg |
| Dimensions (L×W×H) | 450×220×120 mm (avg.) |
| Material | Alloy Steel (AISI 4140/4340) |
| Surface Treatment | Zinc Plating + Wax Spraying (Seawater-Resistant Inhibitor) |
| Corrosion Protection Standard | ASTM D1748 (Humidity & Salt Exposure Resistance) |
| Packaging | Wooden Pallets, Waterproof Wrapping, Desiccant Packs |
Note: Wax spraying is applied post-assembly and pre-packing. This hydrophobic coating prevents chloride ion penetration and condensation-induced oxidation during extended sea voyages.
3. SHIPPING MODE COMPARISON
| Criteria | RO-RO (Roll-on/Roll-off) | Bulk Cargo | Flat Rack Container |
|---|---|---|---|
| Loading Mechanism | Driven/rolled onto vessel via ramps | Loosely stowed in hold using cranes/forklifts | Secured on open-sided flat rack containers |
| Cargo Compatibility | Suitable for wheeled/rollable assemblies; hinges must be mounted or palletized for rollability | Accepts irregular, non-containerized loads | Ideal for oversized, heavy, or sensitive components |
| Protection Level | Moderate (exposed to deck conditions unless covered) | Low (high exposure to moisture, shifting, handling damage) | High (full shrink-wrapping + lashing; controlled environment) |
| Corrosion Risk | High (direct salt spray if on deck) | Very High (hold condensation, bilge proximity) | Low (with wax spray + wrapping) |
| Average Transit Time | 28–35 days (Asia → EU/US East Coast) | 30–40 days | 28–35 days |
| Port Handling Speed | Fast (mechanized roll-on/off) | Slow (crane-dependent) | Moderate (standard container ops) |
| Cost (USD/unit) | $48–$62 | $38–$50 | $68–$85 |
| Insurance Premium | Medium | High | Low–Medium |
| Security Risk | Medium (shared deck space) | High (commingled cargo) | Low (sealed, traceable unit) |
| Best For | High-volume, durable components with mobility | Low-cost, non-sensitive bulk shipments | High-value, corrosion-sensitive, precision components |
4. CORROSION MITIGATION: WAX SPRAYING PROTOCOL
To ensure long-term integrity during marine transport, all hinges undergo automated wax spraying using a solvent-free, biodegradable corrosion inhibitor (C.I. Grade XW-26).
Application Process:
- Post-plating cleaning (deionized water rinse, dry air blow-off)
- Electrostatic wax spray: 25–35 µm uniform coating
- UV-curing tunnel (90 seconds @ 80°C)
- Inspection via adhesion and salt spray testing (per ISO 9227, 720h NSS pass)
Performance Benefits:
- Blocks H₂O and Cl⁻ penetration during 45-day max voyage
- Removable with standard alkaline degreaser at destination
- Compliant with IMO MARPOL Annex III (harmful substance control)
5. RECOMMENDED SHIPPING STRATEGY
| Volume Tier | Recommended Mode | Rationale |
|---|---|---|
| < 500 units/month | Flat Rack Container | Superior protection, traceability, and compliance with construction OEM quality standards |
| 500–1,500 units/month | RO-RO (Palletized on Rollable Skids) | Cost-effective balance with moderate protection; requires enhanced wax coverage and deck tarping |
| > 1,500 units/month | Bulk Cargo + Wax + VCI Pallet Encapsulation | Lowest cost; viable only with rigorous corrosion packaging and destination QC protocols |
Critical Note: Flat Rack with wax spraying is the default recommendation for export to humid/tropical regions (e.g., Southeast Asia, West Africa, Caribbean) due to elevated corrosion risk.
6. CONCLUSION
For heavy-duty dump truck hinges—high-strength components vulnerable to seawater-induced stress corrosion cracking—Flat Rack shipping with wax-based protection delivers optimal balance of safety, compliance, and lifecycle integrity. While RO-RO and Bulk Cargo offer cost advantages, their exposure risks necessitate additional mitigation layers, often negating savings. SEA LION International recommends wax-sprayed, Flat Rack containerized shipments as the standard for premium construction equipment logistics from China in 2026.
END OF REPORT
SEA LION INTERNATIONAL – ENGINEERING RELIABILITY INTO GLOBAL SUPPLY CHAINS
Get a Quote for Heavy Duty Dump Truck Hinges
