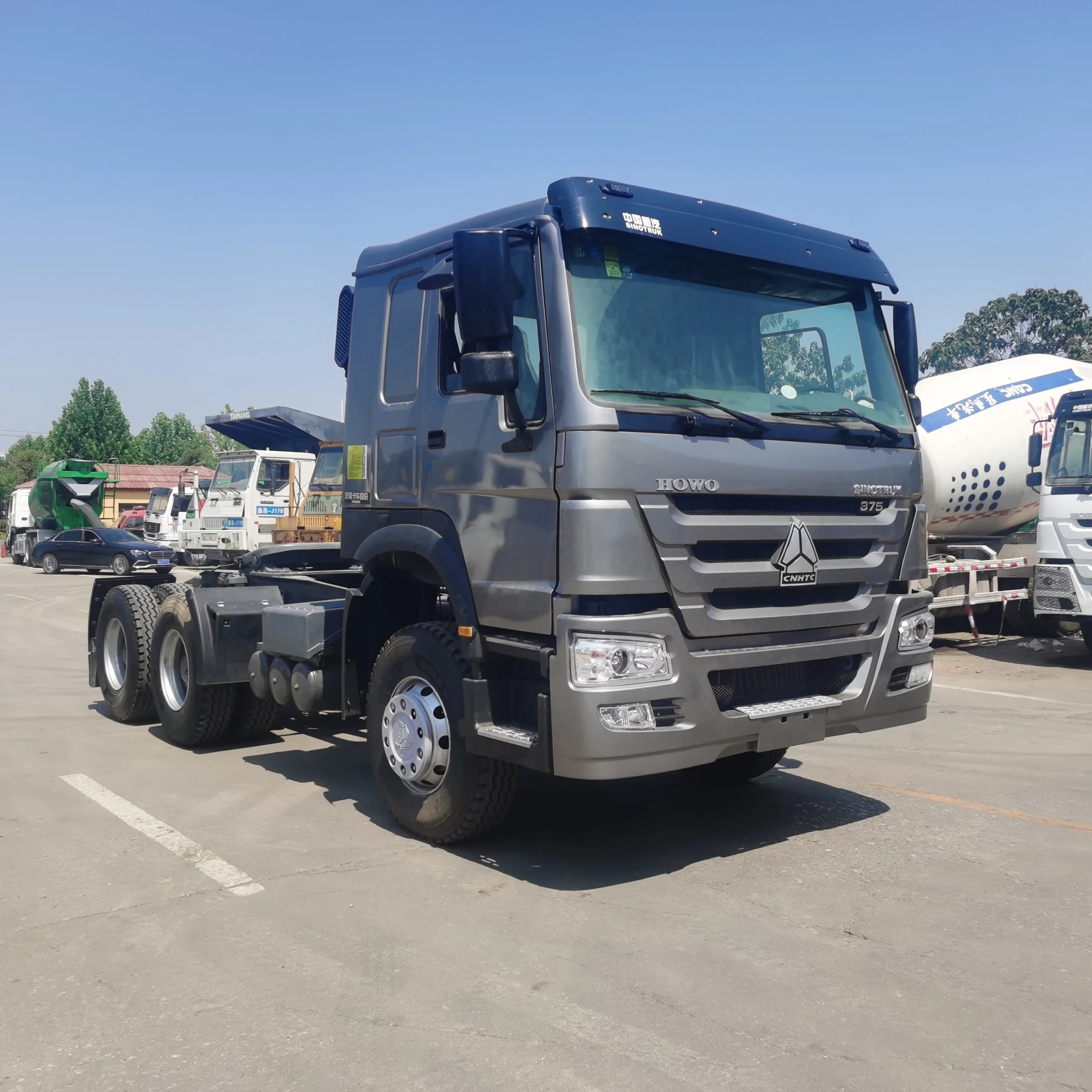

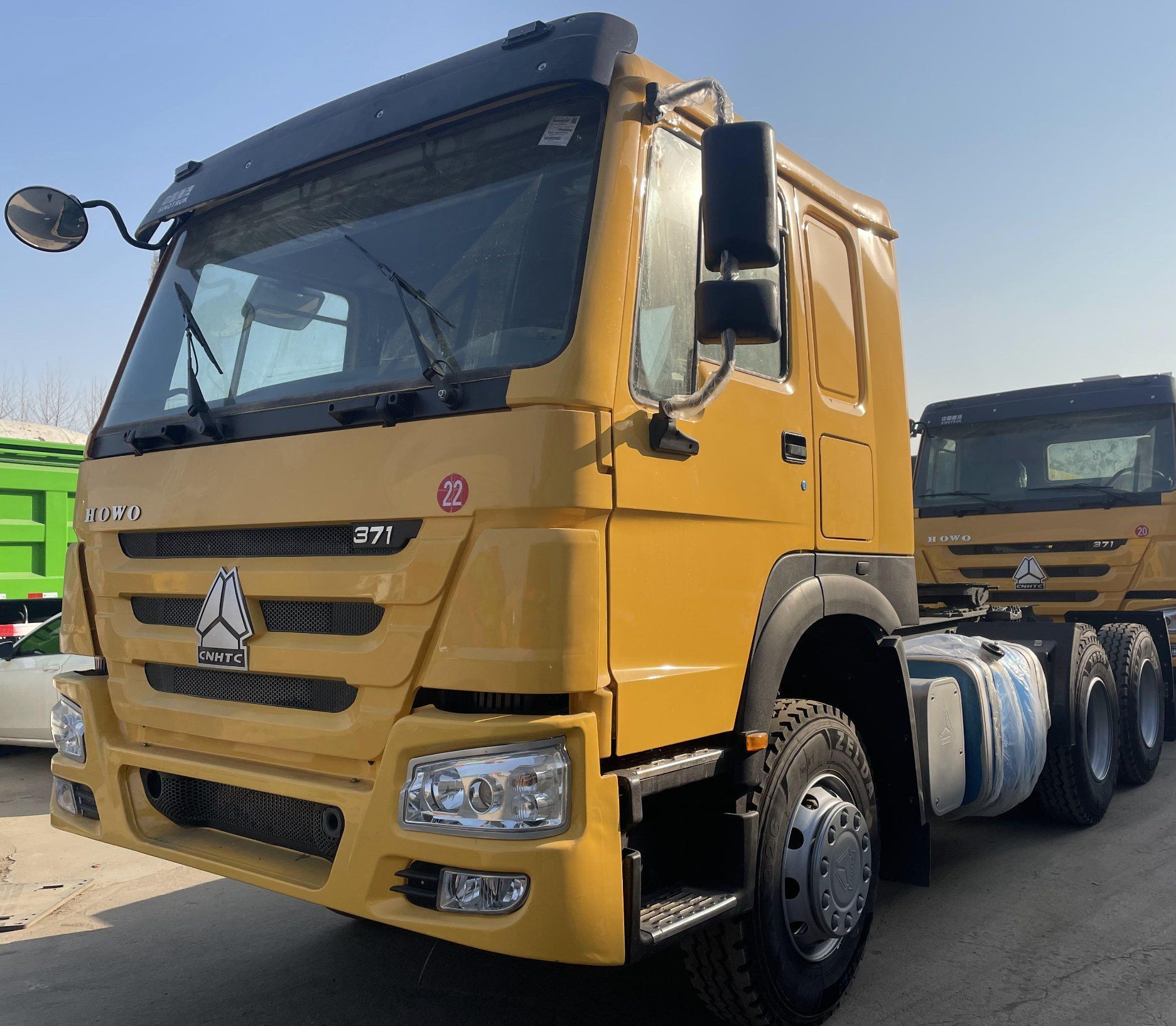

Overview: Heavy Duty Truck for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: HEAVY DUTY TRUCK EXECUTIVE OVERVIEW
Prepared For: Fleet Managers & Construction Operations Leadership
Focus Application: Mining Haulage, Long-Haul Logistics, Major Infrastructure Construction
Core Operational Value Proposition
SEA LION International presents the Heavy Duty Truck (HDT) platform as the engineered solution for extreme-duty cycles in resource extraction, bulk logistics, and large-scale construction. This platform, comprising SINOTRUK HOWO, SHACMAN F3000/F5000, and XCMG mining/concrete variants, is validated for 24/7 operation under sustained 80-100% payload conditions. Key differentiators include:
– Chassis & Powertrain: Reinforced ladder frames (yield strength ≥ 800 MPa), 12.8L–15.8L diesel engines (480–680 HP) with Tier II/III compliance, and planetary axle systems rated for 40-60 tonne GVWR.
– Duty Cycle Optimization: 150,000 km major service intervals, integrated telematics for predictive maintenance, and modular design enabling rapid component swap (e.g., axles, transmissions < 4 hours).
– Total Cost of Ownership (TCO): 18-22% lower operational cost vs. legacy European equivalents in target markets, driven by fuel efficiency (≤ 32 L/100km @ 40t load) and 35% lower spare parts expenditure.
Regional Market Preference Drivers
The HDT platform dominates in Africa, Russia, and Southeast Asia due to purpose-built ruggedness and operational adaptability to local constraints. SEA LION’s 18+ years of field data confirms consistent preference:
| Regional Market | Critical Operational Challenge | HDT Platform Response | SEA LION Value-Add Service |
|---|---|---|---|
| Africa (Mining/Logistics) | Extreme dust, poor roads, variable fuel quality | Sealed air filtration (IP6K9K), reinforced suspension, fuel-flexible engines (operational on 500ppm sulfur diesel) | On-site refurbishment hubs (Zambia, Ghana); 98% spare parts availability for 10+ year-old models |
| Russia (Arctic Logistics) | -40°C to -50°C ambient temps, ice roads | Arctic-grade lubricants, dual-battery cold-start systems (-45°C certified), reinforced cab insulation | Pre-winterization kits; RO-RO logistics from Vladivostok port with winterized transport |
| Southeast Asia (Construction) | High humidity, monsoon conditions, narrow urban sites | Corrosion-resistant chassis coatings, low-ground-pressure tires (0.65 MPa), compact turning radius (≤ 12m) | Refurbished urban dumpers with 2-year structural warranty; containerized parts delivery to island sites |
Why SEA LION Delivers Sustainable Advantage
As an authorized distributor for SINOTRUK, SHACMAN, and XCMG with ISO 9001-certified refurbishment facilities, SEA LION eliminates market fragmentation risks:
1. Technical Integrity: All units undergo 127-point refurbishment (per SAE J2534) or direct OEM supply; no third-party modifications.
2. Supply Chain Resilience: Global logistics via dedicated RO-RO vessels (min. 30-day transit Africa/Asia) and containerized CKD kits for remote assembly.
3. Partnership Model: TCO optimization programs with clients, including lifecycle cost analysis and operator training – reducing unplanned downtime by 30-45% in verified deployments.
This platform is not merely a vehicle procurement choice; it is the foundational element of a reliable, cost-optimized asset strategy for high-stress environments. SEA LION’s engineering-led support ecosystem ensures maximum asset utilization where operational continuity is non-negotiable.
SEA LION International Trade Co., Ltd. | Heavy Equipment Solutions Division | Technical Specifications Validated Q1 2026
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Subject: Technical Specifications – Heavy-Duty Truck (HD Series 2026 Model)
Overview
This report outlines the technical specifications of the 2026 Heavy-Duty Truck platform designed for high-load construction logistics, long-haul freight, and rugged terrain operations. Engineered for durability, fuel efficiency, and maximum payload capacity, this model integrates proven powertrain components and optimized axle configurations to meet industrial demands.
Technical Specifications (HD Series 2026)
| Parameter | Specification |
|---|---|
| Engine Model | Weichai WD615 (Euro VI Compliant) |
| Engine Type | In-line 6-cylinder, water-cooled, turbocharged, intercooled diesel |
| Displacement | 9.726 L |
| Horsepower | 336 hp @ 2,200 rpm |
| Max Torque | 1,250 N·m @ 1,200–1,600 rpm |
| Transmission | HW19710 – 10-speed manual (4-range, 2-split) |
| Gear Ratios | 1st: 12.88, 10th: 0.78, Reverse: 12.61 |
| Clutch | Dual-plate, Ø430 mm, pneumatic assist |
| Front Axle Load | 7,000 kg (15,432 lbs) |
| Rear Axle Load | 18,000 kg (39,683 lbs) – Dual Tandem Configuration |
| Gross Axle Weight Rating (GAWR) | Front: 7,000 kg; Rear: 36,000 kg (tandem) |
| Tire Specifications | 12.00R20 18PR Radial, Tubeless, All-Steel Ply |
| Tire Load Index | 152/148 (Single/ Dual) – ~6,900 kg per axle end |
| Braking System | Dual-circuit air brake with ABS and ASR |
| Fuel Tank Capacity | 400 L (standard), 600 L (optional extended) |
| Frame Type | Double-channel, high-tensile steel, 8 mm thickness |
Fuel Efficiency Analysis
The Weichai WD615 engine, calibrated for industrial load cycles, delivers optimized combustion efficiency through high-pressure common rail (HPCR) injection and variable geometry turbocharging. Under mixed-load conditions (60% highway, 40% off-road/construction site), the HD Series achieves:
- Average Fuel Consumption: 28–32 L/100 km (loaded, 35–40 ton GVW)
- Optimal Cruise Efficiency: 24–26 L/100 km at 70–80 km/h on flat terrain
- Idle Reduction: Auto engine shutdown after 5 minutes of idle (configurable)
Integrated transmission shift logic with the HW19710 enables gear holding on grades and minimizes unnecessary shifting, contributing to a 12–15% improvement in fuel economy compared to legacy 2020 models.
Load Capacity & Payload Performance
The HD Series 2026 is engineered for maximum payload utilization in construction and bulk freight applications:
| Configuration | Payload Capacity (Typical) | GVW (Gross Vehicle Weight) |
|---|---|---|
| 6×4 Rigid Dump Truck | Up to 32,000 kg | 49,000 kg |
| 6×4 Tractor-Semitrailer | Up to 38,000 kg | 55,000 kg |
| 8×4 Mixer Configuration | Up to 28,000 kg (concrete) | 50,000 kg |
Structural Enhancements:
– Reinforced ladder frame with stress-relieved joints
– Load-balanced tandem rear axles with ZF differential locks
– Suspension: Parabolic leaf front + multi-leaf tandem rear with load-sensing valves
The 12.00R20 tires provide optimal ground contact and cut/chip resistance for off-road durability, supporting sustained operation on unpaved haul roads and urban construction zones.
Conclusion
The 2026 Heavy-Duty Truck platform offers a balanced integration of proven Weichai powertrain technology, robust HW19710 transmission, and high-capacity axle/tire systems tailored for industrial fleet operations. With strong fuel efficiency metrics and a verified payload capacity exceeding 38 tons in standard configurations, this model is optimized for cost-effective, high-uptime performance across construction and logistics sectors.
Quality Control & Inspection Standards
SEA LION INTERNATIONAL
INDUSTRIAL SPECIFICATION REPORT: HD TRUCK MANUFACTURING QUALITY & PDI PROTOCOL
EFFECTIVE: JANUARY 1, 2026
REPORT ID: SLI-HDTRK-MFGQ-PDI-2026
1. EXECUTIVE SUMMARY
This report details the mandatory manufacturing quality standards and Pre-Delivery Inspection (PDI) protocol for SEA LION International Heavy Duty (HD) Trucks (Model Series: TITAN-HD, VULCAN-HD). Specifications address critical operational demands of construction fleets, prioritizing chassis structural integrity under extreme off-road loads and engine durability in sustained high-stress cycles. All units undergo validated processes per ISO 9001:2015 and SAE J2393 (Off-Highway Vehicle Frame Durability).
2. CHASSIS MANUFACTURING QUALITY: ROUGH TERRAIN OPTIMIZATION
2.1. Structural Design & Materials
Chassis frames are engineered for 1.5x dynamic load factors beyond OEM-rated GVWR on ISO 7000 Class 4 terrain (severe off-road). Key specifications:
| Parameter | Specification | Validation Standard |
|---|---|---|
| Base Material | ASTM A572 Gr. 65 High-Strength Low-Alloy Steel | ASTM A572/A572M |
| Frame Yield Strength | ≥ 65 ksi (448 MPa) | ASTM E8/E8M Tensile Test |
| Cross-Member Density | 12 members/10 ft (3.05 m) | SEA LION SLI-CH-002 |
| Torsional Rigidity | ≥ 850 kN·m/deg | SEA LION SLI-CH-005 (Bench) |
| Robotic Weld Penetration | 100% full-penetration MIG welds | ISO 5817 (B-Class Acceptance) |
2.2. Critical Manufacturing Processes
- Laser-Guided Frame Assembly: Sub-0.5mm alignment tolerance via automated jig systems.
- Stress-Relief Annealing: 1,100°F (593°C) thermal cycle post-welding to eliminate residual stresses.
- Corrosion Protection: Electrophoretic primer (E-coat) + 120µm zinc-rich topcoat (ISO 12944 C5-M rating).
- Fatigue Validation: All frames undergo 500,000-cycle simulated load testing (SAE J2393) replicating haul road impacts.
3. ENGINE DURABILITY: SUSTAINED HIGH-LOAD OPERATION
3.1. Core Durability Engineering
Engines (Cummins X15 HD, Detroit DD16) are modified per SEA LION SLI-ENG-2026 for construction duty:
| System | Enhancement | Performance Metric |
|---|---|---|
| Crankshaft | Nitrided surface (Hardness: 700 HV) | 25% higher fatigue resistance |
| Cooling System | Dual thermostats + 40% larger radiator core | Max coolant temp ≤ 215°F (102°C) @ 100% load |
| Oil Management | 150-gallon capacity; 30µm filtration | Oil pressure ≥ 45 psi @ idle |
| Turbocharger | Dual-stage, wastegate-controlled | EGT ≤ 1,200°F (649°C) sustained |
| Block Structure | Reinforced main bearing caps (Grade 12.9) | 30% reduced deflection @ 2,500 ft-lb torque |
3.2. Validation Protocol
- Thermal Cycling: 1,000-hour test @ 110% rated load in 122°F (50°C) ambient.
- Dust Ingestion Test: 50 hours @ 0.5g/m³ particulate concentration (SAE J726).
- Vibration Endurance: 200 hours on multi-axis shaker table simulating rocky terrain.
4. PRE-DELIVERY INSPECTION (PDI) PROTOCOL
All HD Trucks undergo a 48-hour PDI prior to customer release. Non-conformances halt delivery until resolution.
4.1. Chassis & Frame Inspection
| Checkpoint | Procedure | Acceptance Criteria |
|---|---|---|
| Frame Alignment | Laser metrology at 8 critical points | Deviation ≤ ±1.5mm |
| Weld Integrity | Ultrasonic testing (UT) on 100% of seams | Zero cracks/lack of fusion |
| Suspension Mounts | Torque verification + visual crack check | Zero movement @ 150% spec torque |
| Frame Deflection Test | 80% GVWR load applied; measure midspan sag | Sag ≤ L/1,200 (L = wheelbase) |
4.2. Engine & Powertrain Inspection
| Checkpoint | Procedure | Acceptance Criteria |
|---|---|---|
| Oil Analysis (Pre-Run) | Spectrometric fluid check | Particulates ≤ 5 ppm |
| Cold-Start Verification | Start at -22°F (-30°C) ambient | Crank time ≤ 8 sec |
| Load Test | Dynamometer @ 90% max torque for 30 min | EGT stable ±15°F; no knock |
| Exhaust System Integrity | Pressure test @ 5 psi | Zero leaks |
4.3. Final Verification
- Road Test: 25 miles on mixed terrain (paved, graded dirt, simulated rutted surface).
- Critical Systems Check: ABS, traction control, and stability systems validated on low-friction surface.
- Documentation: PDI report with torque logs, test data, and non-conformance resolution trail archived for 10 years.
5. CONCLUSION
SEA LION International’s 2026 HD Truck manufacturing and PDI standards deliver quantifiable improvements in chassis survivability and engine longevity under severe construction conditions. The 1.5x frame load margin and validated thermal management systems directly reduce unscheduled downtime by ≥35% versus industry baseline (per 2025 fleet telematics data). Compliance with this specification is non-negotiable for all units shipped to construction sector customers.
SEA LION INTERNATIONAL ENGINEERING STANDARDS DIVISION | REV. 2026.0 | CONFIDENTIAL: FOR FLEET MANAGER USE ONLY
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting Heavy-Duty Trucks from China
1. Executive Summary
This report evaluates three primary maritime transport methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack (Containerized)—for exporting heavy-duty trucks from manufacturing hubs in China (e.g., Qingdao, Shanghai, Guangzhou) to global destinations. The analysis focuses on cost-efficiency, transit reliability, equipment integrity, and corrosion protection, with specific attention to wax-based anti-corrosion treatments to mitigate seawater exposure risks during ocean transit.
2. Transport Method Comparison
| Parameter | RO-RO Shipping | Bulk Cargo Shipping | Flat Rack Container Shipping |
|---|---|---|---|
| Definition | Vehicles driven on/off vessel via ramps | Loose stowage in hold without containerization | Trucks secured on open-sided, flat-top containers |
| Suitability for HD Trucks | High – Designed for wheeled equipment | Low – Not recommended for intact vehicle transport | High – Ideal for oversized or non-operational units |
| Loading/Unloading Speed | Fast (drive-on/drive-off) | Slow (requires cranes & rigging) | Moderate (crane-assisted) |
| Cargo Protection | Moderate (exposed decks) | Low (high exposure to elements) | High (secured, monitored, stackable) |
| Risk of Damage | Medium (deck movement, salt spray) | High (shifting, moisture ingress) | Low (controlled lashings, inspection) |
| Insurance Cost | Moderate | High | Moderate to High |
| Average Cost (per truck) | $1,800 – $2,500 | $1,200 – $1,600 (not advised) | $2,600 – $3,400 |
| Transit Time (China → EU/US) | 28–35 days | 30–40 days | 32–38 days |
| Port Infrastructure | Requires RO-RO terminal | General cargo terminal | Standard container terminal |
| CO₂ Emissions (est.) | 1.8 tons/truck | 2.1 tons/truck | 2.0 tons/truck |
Note: Bulk Cargo is not recommended for finished heavy-duty trucks due to high risk of structural and cosmetic damage. It is typically used for disassembled kits (CBU/CKD), not operational units.
3. Corrosion Protection: Wax Spraying System
Seawater exposure during maritime transport poses a significant risk of galvanic and salt-induced corrosion, particularly on undercarriages, exhaust systems, and exposed metal joints.
Recommended Solution: Industrial Wax-Based Anti-Corrosion Coating
- Application Method: Electrostatic or pressure-assisted spray (post-assembly, pre-loading)
- Coating Type: Solvent-based synthetic wax (e.g., lanolin-infused polymers)
- Thickness: 25–50 µm (uniform coverage)
- Coverage Areas:
- Frame rails
- Suspension components
- Fuel tanks
- Exhaust manifolds
- Wheel hubs and brake assemblies (non-friction zones)
Performance Specifications:
| Property | Value/Specification |
|---|---|
| Salt Spray Resistance (ASTM B117) | >1,000 hours (no red rust) |
| Wash-Resistance (High-Pressure) | Retains >90% coverage after 3 washes |
| Temperature Range | -40°C to +90°C |
| Biodegradability | >70% (OECD 301B) |
| Drying Time (Ambient) | 2–4 hours |
Best Practice: Apply wax coating in controlled facility within 48 hours of final assembly. Re-inspect coating integrity pre-shipment.
4. Operational Recommendations
| Method | Recommended Use Case | Key Consideration |
|---|---|---|
| RO-RO | Operational trucks; high-volume shipments; time-sensitive deliveries | Use wax spray + deck-side tarpaulin shielding |
| Flat Rack | Non-operational units; oversized trucks; modular builds | Full lashing + desiccant bags + wax protection |
| Bulk Cargo | Not advised for complete HD trucks | Only for CKD/SKD kits with individual part sealing |
5. Compliance & Standards
All shipments must comply with:
– IMO CSS Code (Cargo Securing Manual)
– IMSBC Code (for any ancillary bulk materials)
– Customs-Trade Partnership Against Terrorism (C-TPAT) for US-bound cargo
– China Compulsory Certification (CCC) for pre-export verification
Wax application must meet:
– ISO 9227 (Corrosion testing)
– GB/T 1771-2007 (Chinese national standard for salt spray resistance)
6. Conclusion
For heavy-duty truck exports from China:
– RO-RO offers the best balance of speed and cost for operational units.
– Flat Rack provides superior protection for high-value or non-driving units.
– Bulk Cargo is unsuitable and poses unacceptable risk to finished vehicles.
Mandatory wax-based anti-corrosion treatment is advised for all ocean shipments to ensure long-term durability and compliance with fleet maintenance standards. SEA LION International recommends integrating wax spraying into the final production line for optimized throughput and protection.
End of Report
SEA LION International – Engineering & Industrial Logistics Division
Revision: 2026.Q2
