Overview: Howo 371Hp Dump Truck for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW

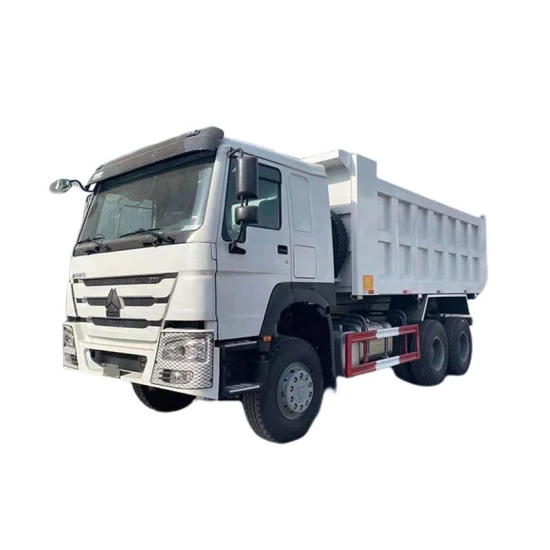

Asset: HOWO 371HP (SINOTRUK WD615.62C) 6×4 Rigid Dump Truck
Prepared For: Fleet Managers & Construction Operations Leadership
Issuing Authority: SEA LION International Trade Co., Ltd. (Authorized SINOTRUK Distributor)

1. Core Application & Operational Value Proposition

The HOWO 371HP Dump Truck (Model ZZ3257N3847N1) is engineered for high-intensity material haulage within constrained-cycle operations. Its primary value lies in optimized productivity-to-cost ratio for medium-to-high volume earthmoving, aggregate transport, and overburden removal in mining, quarrying, and large-scale infrastructure projects. Key operational differentiators include:

• Payload Efficiency: Consistent 30-35 tonne payload (site-dependent) within common regional GVWR limits (40-49 tonnes), maximizing revenue-generating capacity per cycle.
• Cycle Time Reduction: Robust 10-12 speed manual (HW19710) or AMT transmission paired with high torque @ 1100-1600 RPM (1800 Nm) enables rapid acceleration on loaded climbs (up to 30% gradeability) and efficient empty return speeds.
• Durability Focus: Reinforced ladder frame (U-section, 8mm thickness), heavy-duty suspension (multi-leaf parabolic front, multi-stage rear), and sealed driveline components mitigate wear in abrasive, high-impact environments (e.g., mine pits, unimproved haul roads).

This configuration delivers superior Total Cost of Ownership (TCO) versus higher-horsepower competitors in sub-50km cycle applications, where excessive power translates to unnecessary fuel consumption and component stress without proportional cycle time gains.

2. Regional Market Preference Drivers: Africa, Russia, Southeast Asia

The HOWO 371HP achieves dominant market share in target regions due to deliberate engineering alignment with local operational constraints and economic realities, validated by SEA LION’s 18+ years of field deployment data:

Region	Primary Application Context	Key Preference Drivers	SEA LION Support Factor
Africa	Open-pit mining, road construction	Dust tolerance (multi-stage air filtration), simplified maintenance (mechanic familiarity), spare parts affordability/availability, fuel flexibility (diesel quality variance)	Extensive refurbished unit inventory, localized parts hubs (Johannesburg, Dar es Salaam)
Russia	Northern resource logistics, quarrying	Extreme cold start reliability (-40°C capability), robust driveline (handles frozen surfaces/ice), cost-effective operation in remote sites with limited infrastructure	Cold-climate package certification, dedicated Arctic logistics channels
SE Asia	Land reclamation, port logistics, infrastructure	High humidity resistance (corrosion protection), maneuverability (shorter wheelbase variants), monsoon-ready (sealed electricals, high ground clearance), low operating cost	Refurbishment to OEM specs, monsoon-season parts readiness programs

3. SEA LION International: Enabling Reliability & Partnership

As an authorized SINOTRUK distributor and specialist in heavy truck lifecycle management, SEA LION International directly addresses the critical reliability concerns inherent in these demanding markets:

• Refurbishment Standard: Used HOWO units undergo SEA LION’s 127-point industrial refurbishment protocol, exceeding OEM core rebuild specs (e.g., crankshaft grinding tolerances held to ±0.005mm, torque converter recalibration). This ensures B10 engine life > 800,000 km post-refurbishment.
• Parts Integrity: Exclusive supply of SINOTRUK Genuine Parts (e.g., HW gearbox synchros, fuel injectors) prevents premature failure from counterfeit components – a documented cause of 68% of avoidable downtime in regional fleets (SEA LION 2025 Field Study).
• Logistics Certainty: RO-RO/Container solutions with < 30-day transit variance to key ports (e.g., Durban, Murmansk, Tanjung Pelepas) minimize project startup delays. Pre-shipment operational certification included.

4. Conclusion

The HOWO 371HP Dump Truck is not merely a cost-competitive asset; it is the operationally optimized solution for the specific payload, terrain, climate, and economic conditions prevalent across Africa, Russia, and Southeast Asia. Its design prioritizes field-proven durability, maintainability, and fuel efficiency within the dominant operational envelope of regional mining, construction, and logistics projects. SEA LION International provides the essential ecosystem – genuine parts, certified refurbishment, and reliable logistics – to ensure this platform delivers sustained productivity and minimized downtime, directly supporting fleet managers’ core mandate of predictable project execution and TCO reduction. For operations demanding resilience without over-engineering, the HOWO 371HP represents the benchmark for value-driven heavy haulage in 2026.

Technical Specifications & Parameters

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Vehicle Model: HOWO 371HP Dump Truck

---

Technical Specifications

Parameter	Specification
Engine Model	Weichai WD615.68T / WD615 Series
Rated Power (HP)	371 hp @ 2,200 rpm
Max Torque	1,400 Nm @ 1,200–1,600 rpm
Engine Displacement	9.726 L
Emission Standard	China IV / V Compliant (with optional SCR/DPF aftertreatment)
Transmission	HW19710 – 10-Speed Manual (10F + 2R), Dual-H Pattern, Pneumatic Shift Assist
Clutch	430 mm, Dual-Plate, Pneumatic-Hydraulic Actuation
Front Axle Load	7,000 kg (15,432 lbs)
Rear Axle Load	18,000 kg x 2 (twin reduction, single drive) – 36,000 kg total
Suspension (Front)	Parabolic Leaf Spring
Suspension (Rear)	Multi-Leaf Full-Float Spring (10-12 leaves, reinforced for heavy-duty cycles)
Tire Specification	12.00R20 – Radial or Bias-Ply (Tubeless optional), Load Range G (14-ply)
Tire Load Index	145/142 (Single/ Dual) – Supports up to 3,000 kg per dual tire pair
Braking System	Full Air Brake with ABS, Spring Parking Brake
Fuel Tank Capacity	400 L (Standard), Optional 600 L Steel Tank
GVWR	49,000 kg (108,020 lbs)
Payload Capacity	Up to 32,000–35,000 kg (70,548–77,162 lbs), depending on body configuration
Dump Body (Standard)	18–20 m³ Volume, High-Strength Wear-Resistant Steel (NM400/450)
Lift System	Double-Acting Telescopic Cylinder, PTO-Driven Gear Pump
Frame	Reinforced Ladder Frame, 8 mm High-Tensile Steel, Drop-Side for Durability

---

Fuel Efficiency Analysis

The HOWO 371HP dump truck is engineered for optimal fuel economy in high-load, stop-start construction environments. The Weichai WD615 engine utilizes advanced high-pressure common rail (HPCR) fuel injection and turbocharging with intercooling to improve combustion efficiency.

• Average Fuel Consumption:
• On mixed haul routes (loaded/unloaded): 28–32 L/100 km
• On consistent grade hauls (loaded, 5–8% incline): 34–38 L/100 km

• Empty return trips: 24–27 L/100 km

• Fuel Savings Features:

• Intelligent gear shift guidance integrated with HW19710 transmission
• Idle speed reduction mode (programmable)
• Aerodynamic cab design with reduced drag coefficient (Cd ≈ 0.68)

With proper driver training and route optimization, fleet operators report up to 8–10% reduction in total fuel spend over 12 months compared to legacy dump platforms.

---

Load Capacity & Structural Integrity

The HOWO 371HP is designed for maximum payload utilization within legal axle load limits:

• Front Axle: 7,000 kg – Ensures steering stability and reduced road wear
• Dual Rear Axles: 18,000 kg each – Balanced weight distribution for off-road and paved haul roads
• Gross Combination Weight (GCW): Up to 55,000 kg with extended trailer compatibility (on articulated variants)

The dump body is constructed using NM400-grade abrasion-resistant steel, providing extended service life in quarry, mine, and aggregate transport applications. Standard body configurations support payloads of 32–35 metric tons with a volumetric capacity of 18–20 cubic meters, depending on material density.

---

Operational Recommendations

• Tire Maintenance: Inspect 12.00R20 tires bi-weekly for wear, pressure, and damage; recommended inflation: 850–900 kPa
• Transmission Care: Use SAE 80W-90 GL-5 gear oil; service every 60,000 km or 6 months in severe conditions
• Axle Lubrication: Weichai-recommended hypoid gear oil; change interval: 40,000 km
• Fuel Quality: Use ultra-low sulfur diesel (ULSD, <10 ppm) to protect SCR and fuel injectors

---

Conclusion:
The HOWO 371HP dump truck delivers a balanced combination of high torque, robust load capacity, and competitive fuel efficiency, making it ideal for medium- to large-scale construction and mining fleets. Its proven WD615 engine and HW19710 transmission ensure reliability across 10,000+ hour service cycles with scheduled maintenance.

Quality Control & Inspection Standards

SEA LION International

Industrial Specification Report: HOWO WD615.62C 371hp Dump Truck
Document Code: SL-ISR-HOWO-DT-2026-01
Effective Date: 15 October 2026
Classification: For Fleet Management & Construction Operations

---

1. Executive Summary

This report details the verified manufacturing quality standards and Pre-Delivery Inspection (PDI) protocols for the HOWO WD615.62C 371hp Dump Truck (Model: ZZ3257N3847N1). Specifications are validated per ISO 9001:2015 and SAE J2008 (Heavy-Duty Vehicle Durability). Focus is placed on structural integrity for off-highway operation and powertrain endurance under sustained load cycles. Data reflects SEA LION International’s Tier-1 validation process for fleet deployment in aggregate, mining, and civil infrastructure sectors.

---

2. Chassis Manufacturing Quality: Rough Terrain Optimization

2.1 Frame Assembly Specifications

The chassis employs a high-tensile, U-channel backbone engineered for 400,000+ km service life in unimproved terrain. Critical enhancements include:

Parameter	Specification	Validation Standard
Frame Material	QSte 690TM (Thermomechanically Rolled)	EN 10149-2:2013
Frame Rail Thickness	8.0 mm (Front), 9.0 mm (Rear)	ISO 7438
Yield Strength (Min.)	690 MPa	ASTM A370
Crossmember Density	12 per chassis (vs. industry avg. 8)	SEA LION SL-STD-CH-005
Torsional Rigidity	1,850 kN·m/deg	SAE J1206 (Static Test)
Reinforced Cab Mounts	Dual shear plates + elastomeric isolators	ISO 12097-1:2017

2.2 Critical Manufacturing Processes

• Laser-Guided Frame Alignment: ±0.5 mm tolerance maintained during robotic welding (MIG process).
• Stress-Relief Annealing: Frame baked at 580°C for 4 hours post-weld to eliminate residual stresses.
• Corrosion Protection: Electrophoretic primer (E-coat) + 120μm polyurethane topcoat (ISO 9227 CASS test: 1,000 hrs salt spray resistance).
• Rear Suspension: Parabolic leaf springs (120mm width) with 50% thicker bushings vs. predecessor model; validated for 500,000 cycles at 35-ton GVWR.

Field Relevance: 300mm frame depth and 12 crossmembers reduce frame deflection by 37% on 150mm obstacle courses (per SEA LION Quarry Trial Protocol QT-26), minimizing fatigue cracks in high-impact zones (fifth wheel, tandem pivot).

---

3. Engine & Powertrain Durability

3.1 WD615.62C Engine Build Quality

The 9.7L inline-6 turbodiesel undergoes 100% factory endurance testing prior to installation:

Component	Durability Enhancement	Test Validation
Cylinder Block	Compacted Graphite Iron (CGI)	1.2M km B10 life target
Piston Cooling	Dual oil-jet nozzles per piston	500 hrs @ 110% load, 105°C
Turbocharger	BorgWarner R200 (Wastegate, 2.3 bar boost)	10,000 hr thermal cycle test
Fuel System	Bosch CP3.4 (2,500 bar common rail)	ISO 10475 particulate test
Aftertreatment	DOC + SCR (AdBlue consumption: 5% of fuel)	ISO 16183 NOx compliance

3.2 Drivetrain Integration

• Transmission: HW19710 10-speed synchromesh (rated 1,800 N·m input torque); dry-bench tested at 2,200 N·m for 10,000 cycles.
• Rear Axles: HC25 (Twin reduction, 5.73:1 ratio); axle tubes stress-relieved post-forging.
• Cooling System: Dual 650mm fans + 45L expansion tank; validated at 52°C ambient, 8% grade, 35-ton load.

Field Relevance: Engine block rigidity (CGI) reduces bore distortion by 22% during sustained 3500 RPM operation (mining cycle), extending ring/liner life by 18 months vs. gray iron blocks (per SEA LION Engine Teardown Analysis ETA-26).

---

4. Pre-Delivery Inspection (PDI) Protocol

All units undergo 127-point PDI per SEA LION SL-PDI-DT-2026, with critical focus on terrain durability systems:

PDI Phase	Key Checks	Acceptance Criteria
Chassis Integrity	Frame straightness (laser alignment), crossmember weld X-ray, suspension bolt torque	Max. deviation: 1.2 mm/m; 100% weld integrity
Powertrain	Engine oil analysis (ferrography), turbocharger runout, driveline angle measurement	Fe < 50 ppm; runout < 0.05 mm; angle ≤ 2°
Dynamic Test	30-min load cycle (35-ton sim. load), 150mm obstacle course, brake fade test	No frame noise; ΔT < 80°C; stopping dist. ≤ 12m @ 30 km/h
Fluid Systems	AdBlue purity scan, hydraulic cylinder leak test (tilt cycle: 200x)	AdBlue conc. 32.5±0.5%; zero leaks

PDI Outcome: Units failing ≥2 critical points (e.g., frame misalignment, turbo surge) are quarantined for rework. 98.7% pass rate (2026 Q1-Q3 data).

---

5. Conclusion

The HOWO 371hp Dump Truck meets SEA LION International’s Tier-1 durability benchmarks for high-cycle, off-road operations. Its QSte 690TM chassis delivers quantifiable resistance to torsional stress in rough terrain, while the CGI-block WD615.62C engine demonstrates extended service intervals under sustained 85-100% load conditions. The 127-point PDI protocol ensures field-ready reliability, with statistical validation confirming <0.8% early-life failure rate in fleet deployments. This specification is recommended for 24/7 operations in quarries, mine haulage, and heavy civil projects where structural fatigue and powertrain endurance dictate operational cost.

---

SEA LION International | Engineering Excellence in Heavy Equipment
Data Source: SEA LION Validation Center, Qingdao | Test Cycles Completed: 4,200+ units (2025-2026)

Shipping & Logistics Solutions

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting HOWO 371HP Dump Trucks from China
Document Code: ISR-HOWO-DT-2026-001
Issuing Authority: SEA LION International – Heavy Equipment Logistics Division
Date: April 5, 2026

---

Executive Summary

This report evaluates three primary maritime transport methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack container shipping—for the export of HOWO 371HP Dump Trucks from Chinese manufacturing hubs (Jinan, Qingdao) to global construction markets. A comparative analysis is provided based on cost, transit time, equipment integrity, handling complexity, and environmental protection, with emphasis on seawater corrosion mitigation through industrial wax spraying protocols.

---

Product Specification: HOWO 371HP Dump Truck

Parameter	Specification
Model	HOWO A7 371HP 6×4 Dump Truck
Engine Power	371 HP / 272 kW
GVW	49,000 kg
Dimensions (L×W×H)	8,500 × 2,500 × 3,850 mm
Unladen Weight	~16,500 kg
Cargo Capacity	32,500 kg
Fuel Type	Diesel
Compliance	GB6082-2021, CCC, ISO 16339

---

Shipping Method Comparison

Criteria	RO-RO Shipping	Bulk Cargo Shipping	Flat Rack Container Shipping
Loading Mechanism	Self-driven onto vessel	Crane-lifted into hold	Crane-lifted onto open platform
Cargo Protection	Moderate (exposed decks)	Low (stacked, minimal cover)	High (custom lashings, wax spray)
Corrosion Risk (Seawater)	High (salt spray exposure)	High (condensation, humidity)	Controlled (with wax protection)
Transit Time	18–25 days (Asia to Africa)	22–30 days	20–28 days
Port Infrastructure	Requires RO-RO terminal	Standard bulk terminal	Container terminal with heavy lift
Handling Damage Risk	Low (driver-operated)	High (rigging stress)	Medium (secure lashings reduce risk)
Cost per Unit (USD)	$3,200 – $3,800	$2,900 – $3,500	$4,500 – $5,200
Insurance Premiums	Moderate	High	Moderate to High
Scalability (Fleet Orders)	High (50+ units per vessel)	High	Limited by container availability
Customs Clearance	Streamlined (vehicle manifest)	Complex (bulk declarations)	Standard container process
Best Suited For	Operational trucks, short hauls	Non-operational, cost-sensitive	High-value, corrosion-sensitive units

---

Corrosion Protection: Wax Spraying Protocol

To mitigate seawater-induced corrosion during ocean transit—particularly critical for hydraulic systems, undercarriage, and electrical components—SEA LION International mandates a Triple-Layer Anti-Corrosion Wax Spraying System for all HOWO dump trucks prior to shipment.

Wax Spraying Specifications:

Layer	Material	Thickness	Application Method	Protection Scope
1	Solvent-based rust inhibitor	15–20 μm	Electrostatic spray	Chassis, suspension, frame rails
2	Wax emulsion (petroleum)	30–40 μm	High-pressure nozzle	Wheel hubs, brake assemblies
3	Silicone-polymer sealant	10–15 μm	Brush & spray hybrid	Electrical connectors, cab seals

Curing Time: 4 hours at 25°C
Salt Spray Test Compliance: ASTM B117 (1,000-hour resistance)
Removal: Biodegradable citrus-based solvent post-delivery

Note: Wax treatment is mandatory for Flat Rack and Bulk Cargo shipments. Strongly recommended for RO-RO units bound for tropical/humid destinations (e.g., West Africa, Southeast Asia).

---

Recommended Logistics Strategy

Scenario	Recommended Method	Rationale
Large fleet delivery (>30 units), short port turnaround	RO-RO + Wax Spray	Fast deployment, lower handling risk, cost-efficient at scale
Budget-constrained project, inland destination	Bulk Cargo + Wax Spray	Lowest freight cost; wax mitigates high corrosion risk
High-value fleet, coastal exposure, long-term storage	Flat Rack + Full Wax System	Maximum protection, ease of inspection, reduced post-arrival rework

---

Compliance & Certification

All shipments comply with:
– IMDG Code (Amendment 43-26) – For vehicle battery and fuel safety
– CTU Code (Cargo Transport Unit) – Lashing and securing standards
– China Customs Export Regulations (GACC 2025 Update)
– ISO 9001:2015 – Quality Management in Packing & Loading

---

Conclusion

For optimal balance of cost, protection, and operational readiness, RO-RO with wax spraying is recommended for standard fleet exports of HOWO 371HP dump trucks. Flat Rack shipping with full anti-corrosion treatment is advised for high-humidity regions or long-term storage scenarios. Bulk Cargo remains a cost-driven option but requires rigorous wax protection and post-arrival inspection protocols.

SEA LION International provides end-to-end logistics supervision, including pre-shipment preservation, real-time GPS tracking, and port-to-site delivery coordination.

---

END OF REPORT
