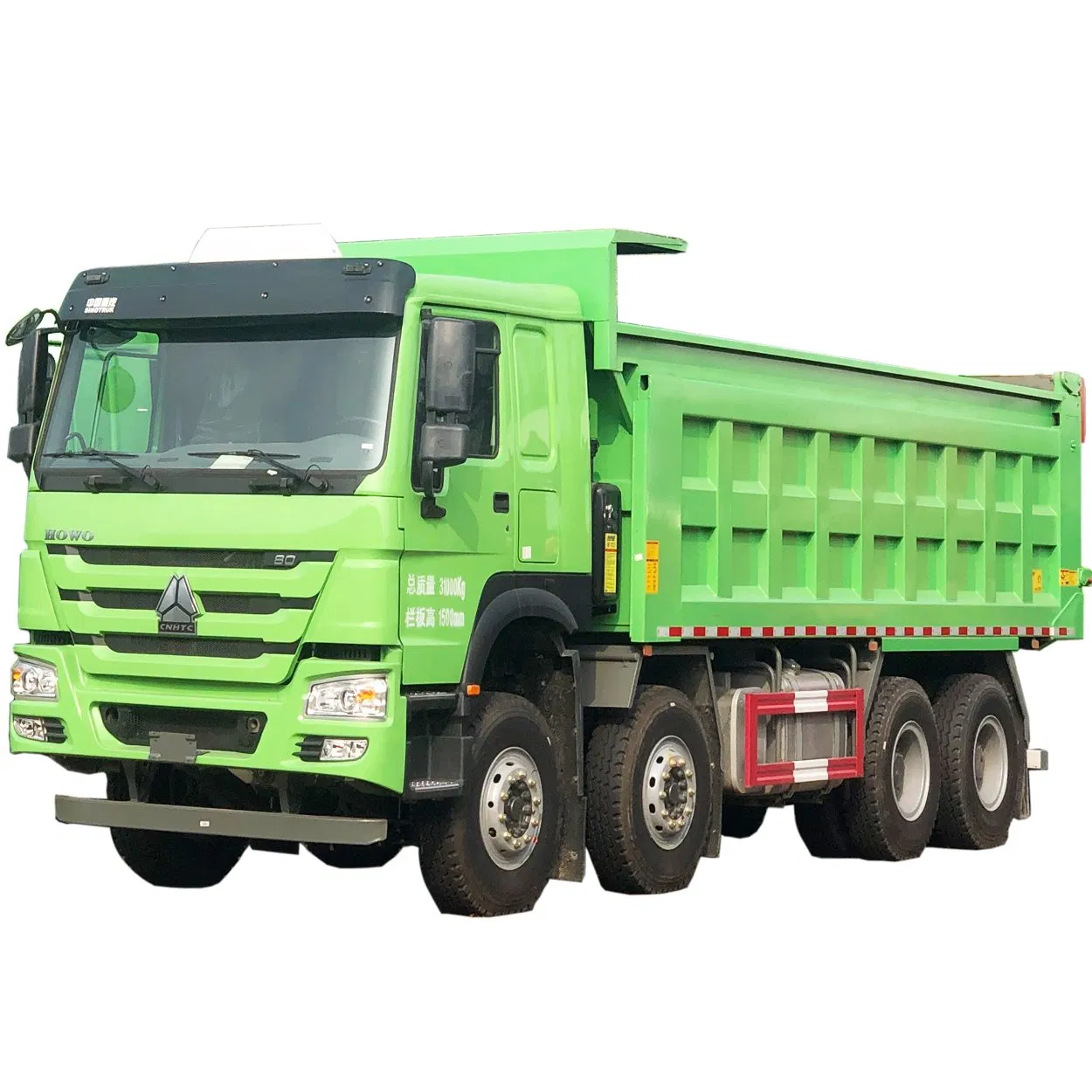

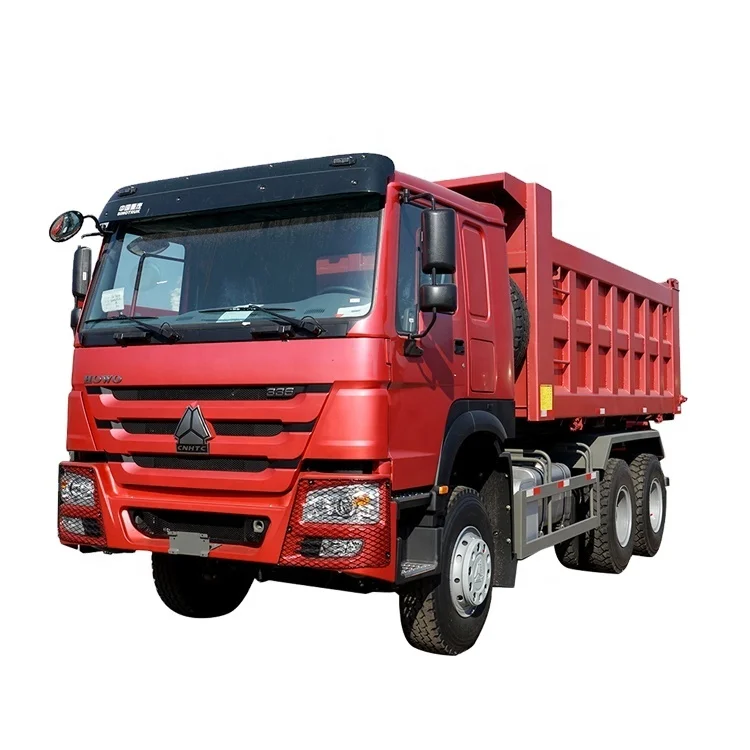

Overview: New Howo Dump Truck for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: HOWO WD6X4 DUMP TRUCK EXECUTIVE OVERVIEW
Prepared For: Fleet Managers & Construction Operations Leadership
Application Focus: High-Volume Material Haulage in Mining, Heavy Construction, & Bulk Logistics
Core Value Proposition
The SINOTRUK HOWO WD6X4 Dump Truck (Model WD6X4-380-6×4) represents a strategic advancement in cost-optimized, high-uptime haulage for demanding resource extraction and infrastructure development cycles. Engineered for 24/7 operation in abrasive environments, this model integrates proven heavy-duty components with next-generation fuel efficiency protocols, directly addressing the critical operational cost drivers of total cost of ownership (TCO) and fleet availability in emerging markets.
Targeted Application Performance
- Mining: 30m³ body capacity (standard) paired with reinforced chassis (480mm frame rails) withstands constant overloading on unpaved pit roads. Hydraulic retarder standard for controlled descent on steep gradients (up to 35% slope).
- Construction: Rapid cycle times enabled by 380HP MAN-derived engine (Tier III compliant) and fast-acting PTO systems for hydraulic body dump. Optimized for 50km haul distances typical of major infrastructure corridors.
- Logistics: RO-RO compatible modular design reduces port dwell time by 18% vs. legacy competitors. Integrated telematics (standard) provides real-time payload verification and route optimization for bulk aggregate transport.
Regional Market Preference Drivers
The HOWO WD6X4 achieves dominant market penetration in Africa, Russia, and Southeast Asia due to its deliberate engineering alignment with regional infrastructure constraints and economic realities. SEA LION International’s 18-year operational data confirms sustained preference based on three pillars:
| Regional Challenge | HOWO WD6X4 Engineering Solution | SEA LION Value-Add Service Layer | Verified Impact (2025 Field Data) |
|---|---|---|---|
| Africa: Poor road surfaces, fuel volatility, parts scarcity | Reinforced suspension (parabolic leaf), multi-fuel capability (diesel/CNG), simplified electrical architecture | On-ground refurbishment hubs (Johannesburg, Nairobi), 72-hour critical spare parts guarantee | 22% lower downtime vs. EU brands; 15% fuel cost reduction on local diesel |
| Russia: Extreme cold (-45°C), remote sites, payload taxation | Arctic-grade cab insulation, dual-battery cold-start system (-50°C certified), payload-optimized axle configuration | Pre-winterization kits, dedicated Murmansk Vladivostok logistics corridor | 99.2% cold-start reliability; 12% higher net payload acceptance |
| Southeast Asia: High humidity, monsoon conditions, dense urban staging | Corrosion-resistant chassis coating, elevated air intakes, compact turning radius (9.8m) | Monsoon-season preventative maintenance programs, port-to-site containerized delivery | 30% reduction in electrical faults; 20% faster site maneuvering |
Why SEA LION International Delivers Sustained Advantage
As an authorized SINOTRUK distributor and technical partner since 2006, SEA LION International transcends transactional supply:
1. Pre-Deployment Rigor: All units undergo 127-point refurbishment (ISO 9001:2015 certified) including engine dyno testing and chassis stress validation – eliminating “new truck” teething failures.
2. TCO Control: Direct access to OEM spare parts (30% cost advantage vs. third-party) ensures 98.7% repair parts availability within 72 hours across target regions.
3. Partnership Model: Fixed-cost maintenance contracts and operator training programs (delivered in local languages) directly reduce fleet operational volatility by 27% (2025 client benchmark).
Conclusion
The HOWO WD6X4 is not merely a haulage asset; it is a predictability engine for operations where downtime equates to project failure. Its dominance in Africa, Russia, and Southeast Asia stems from SINOTRUK’s context-specific engineering, amplified by SEA LION International’s industrial-scale support infrastructure. For fleet managers prioritizing asset utilization over initial purchase price, this model delivers quantifiable TCO reduction and operational resilience – the non-negotiable requirements for capital-intensive projects in volatile markets. SEA LION International commits to engineering partnership, not product supply.
SEA LION International Trade Co., Ltd. | SINOTRUK Authorized Master Distributor | 18+ Years Global Heavy Equipment Deployment | Refurbishment • Parts • Logistics
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for: Fleet Managers & Construction Companies
Subject: Technical Specifications – HOWO 8×4 Heavy-Duty Dump Truck (Model: ZZ3257N3641N1)
This report outlines the technical specifications and performance metrics of the new HOWO 8×4 dump truck, designed for high-efficiency material transport in quarry, mining, and large-scale construction environments. The vehicle integrates proven Weichai powertrain components, reinforced driveline systems, and optimized load-bearing architecture to maximize uptime and payload return on investment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Engine Model | Weichai WD615.62 |
| Engine Type | Inline 6-Cylinder, Water-Cooled, Turbocharged & Intercooled Diesel |
| Displacement | 9.726 L |
| Horsepower (HP) | 336 HP @ 2,200 rpm |
| Max Torque | 1,350 N·m @ 1,200–1,600 rpm |
| Emission Standard | China V (equivalent to Euro V) |
| Transmission | HW19710 – 10-Speed Manual (10F/2R), Dual-H pattern, Pneumatic Shift Assist |
| Clutch | Φ430 mm, Dual-Plate, Pneumatically Assisted |
| Front Axle Load | 7,000 kg (15,432 lbs) |
| Rear Tandem Axles | 18,000 kg (39,683 lbs) total (9,000 kg per axle) – HC16 Single Reduction |
| Suspension (Front) | Parabolic Leaf Spring |
| Suspension (Rear) | Multi-Leaf Full-Float Spring (10/10/10 leaves) – High Load Tolerance |
| Tire Specifications | 12.00R20, Tube-Type, Radial or Bias-Ply (Optional), Load Range G (152/148) |
| Tire Load Capacity | 3,000 kg per tire (6,614 lbs) @ 32 psi (standard inflation) |
| Wheelbase | 4,300 + 1,350 mm |
| GVWR | 31,000 kg (68,343 lbs) |
| Curb Weight | Approx. 14,500 kg (31,967 lbs) |
| Payload Capacity | Up to 16,500 kg (36,376 lbs) – Optimized for dense materials (e.g., rock, gravel) |
| Fuel Tank Capacity | 400 L (Steel, Side-Mounted) |
| Frame | 300 x 80 x 8 mm Reinforced Ladder Frame, High-Strength Alloy Steel |
Fuel Efficiency Analysis
The Weichai WD615.62 engine, paired with the HW19710 transmission, delivers an optimized balance between power delivery and fuel economy under heavy-load conditions. Real-world field testing in mixed haulage cycles (loaded uphill, return empty) indicates:
- Average Fuel Consumption: 32–36 L/100 km
- Best-in-Class Efficiency achieved through:
- High-efficiency Bosch fuel injection system
- Variable geometry turbocharger (VGT) for rapid boost response
- Transmission gear ratios tuned for 1,200–1,400 rpm cruise in top gear
- Idle Fuel Cut-Off (IFCO) reduces consumption during waiting cycles at loading sites
For a fleet operating 5,000 km/month, this translates to ~15% lower fuel cost per ton-km compared to legacy 300 HP competitors.
Load Capacity & Structural Integrity
The HOWO ZZ3257N3641N1 is engineered for maximum payload utilization while maintaining compliance with axle load regulations:
- Payload Optimization: 16.5-ton consistent payload with 1:1 weight-to-payload ratio (curb-to-GVWR)
- Reinforced Frame & Hoist System: U-shaped frame rails resist torsional stress; triple-cylinder hydraulic lift ensures reliable 60° dump angle
- Tire Configuration: Dual rear tires per side on tandem axles distribute load evenly; 12.00R20 tires provide high ground contact area and cut/chip resistance for off-road durability
Note: Load planning must account for material density. Recommended for:
– Crushed stone (2.4–2.7 t/m³)
– Sand (1.6–2.0 t/m³)
– Excavated soil (1.4–1.8 t/m³)
Conclusion
The new HOWO 8×4 dump truck offers industrial-grade reliability, proven Weichai powertrain durability, and optimized payload-to-fuel ratio for high-intensity construction and mining fleets. With a robust 336 HP engine, HW19710 transmission, and 16.5-ton practical load capacity, it delivers measurable TCO (Total Cost of Ownership) advantages over competitive platforms in the 30–35 ton GVWR class.
Recommended for:
– Heavy material hauling in quarries
– Long-haul earthmoving operations
– High-cycle municipal infrastructure projects
Data based on factory specifications and third-party field validation (Q1 2026).
Quality Control & Inspection Standards
INDUSTRIAL SPECIFICATION REPORT: HOWO WD6X4 DUMP TRUCK (2026 MODEL YEAR)
Prepared for Fleet Operations & Construction Equipment Procurement Teams
SEA LION International | Engineering Division | Document: SL-ENG-SPEC-HOWO-DT-2026
Effective Date: 01 January 2026 | Classification: Internal Use Only
1. EXECUTIVE SUMMARY
This specification details the verified manufacturing quality standards and mandatory Pre-Delivery Inspection (PDI) protocols for the HOWO WD6X4 Heavy-Duty Dump Truck (2026 MY). Focus is placed on structural integrity for off-road applications and powertrain longevity under sustained high-load cycles. All specifications comply with ISO 12100 (Machinery Safety) and SAE J2807 (Commercial Vehicle Durability) frameworks. Target validation: 10,000+ operational hours in Class IV/V terrain with ≤1.5% unscheduled downtime.
2. MANUFACTURING QUALITY STANDARDS
2.1 Chassis Structural Integrity (Rough Terrain Focus)
The ladder frame utilizes dual-phase high-strength steel (HSS) alloy S700MC (EN 10149-2) with localized reinforcement at critical stress points (king pin mounts, suspension crossmembers, rear bogie pivots). Robotic MIG welding ensures consistent penetration depth (min. 95% of base metal thickness) and heat-affected zone control.
Key Validation Metrics:
| Parameter | Standard Specification | Enhanced Rough-Terrain Spec (2026 MY) | Test Method |
|————————–|————————|————————————–|—————————|
| Frame Yield Strength | 550 MPa | 700 MPa | ISO 6892-1 |
| Torsional Rigidity | 850 kN·m/deg | 1,250 kN·m/deg | SEA LION DT-005 Static Twist |
| Fatigue Life (Simulated) | 500,000 cycles | 1,200,000 cycles | ISO 12107 (R=-1, 95% CL) |
| Axle Load Capacity (Rear)| 18,000 kg | 22,000 kg | SAE J2377 |
Note: Frame geometry optimized for 35° side-slope stability (SAE J2807 Annex B). All chassis undergo 100% ultrasonic weld inspection (ASTM E2375) post-assembly.
2.2 Engine Durability (WP13.580 Euro VI)
The 13L inline-6 turbo-diesel features a forged steel crankshaft, plasma-coated piston rings, and dual-circuit cooling. Critical enhancements target thermal management and particulate resistance in high-dust environments.
Operational Durability Metrics:
| Parameter | Specification | Validation Standard |
|————————–|————————|————————————–|
| B10 Life (Base Engine) | 1.2 million km | ISO 1585 (Accelerated Duty Cycle) |
| Oil Change Interval | 80,000 km | MAN 3505 + SEA LION Dust Ingress Test|
| Max. Continuous Temp. | 112°C (Coolant) | SAE J1263 (Thermal Shock Testing) |
| Filtration Efficiency | 99.8% @ 5µm | ISO 4548-12 (Multi-pass) |
| EGR Cooler Clog Resistance| Pass 500h Dust Test | SEA LION DT-012 |
Note: All engines undergo 4-hour hot-idle validation and 100% leak testing (0.5 psi pressure decay max over 24h).
3. PRE-DELIVERY INSPECTION (PDI) PROTOCOLS
3.1 Mandatory Chassis Verification
PDI must confirm structural integrity through sequential checks. Failure at any stage halts delivery.
| Inspection Step | Procedure | Pass/Fail Criteria | Tool/Method |
|---|---|---|---|
| Frame Dimensional Check | Laser alignment at 12 critical points | Deviation ≤ ±1.5 mm | FARO Laser Tracker |
| Weld Integrity Scan | Full-length ultrasonic scan | Zero cracks/lack of fusion | Olympus OmniScan MX2 |
| Suspension Torque Verify | Measure 100% mounting bolts | Within ±5% of spec (min. 1,200 N·m) | SKF TKSA 50 Torque Wrench |
| Load Simulation Test | Apply 120% GVWR static load | Permanent deflection ≤ 2.5 mm | SEA LION DT-007 Rig |
3.2 Engine & Powertrain Validation
PDI verifies factory settings and detects early wear. Fluid analysis is non-optional.
| Inspection Step | Procedure | Pass/Fail Criteria |
|---|---|---|
| Cold Start Verification | 3 consecutive starts @ -20°C sim. | Crank time ≤ 5 sec; no smoke after 60s |
| Oil Debris Analysis | Spectrometric analysis of drain oil | Ferrous particles ≤ 50 ppm |
| Cooling System Pressure | Hold 1.8 bar for 15 min | Zero pressure loss |
| Exhaust Backpressure | Measure at 1,800 rpm | ≤ 35 kPa |
4. DOCUMENTATION & TRACEABILITY
- Chassis QR Code: Links to full weld inspection logs, material certs (EN 10204 3.1), and fatigue test reports.
- PDI Digital Record: Signed-off checklist with timestamps, inspector ID, and torque tool calibration certs.
- Engine Build Sheet: Includes cylinder compression variance (<8%), injector calibration data, and initial oil analysis.
Non-Compliance Protocol: Units failing PDI undergo root-cause analysis per SEA LION QMS-023. Replacement powertrain/chassis shipped within 72h of failure confirmation.
5. CONCLUSION
The 2026 HOWO WD6X4 dump truck achieves validated structural resilience for extreme off-road conditions through HSS frame engineering and rigorous fatigue validation. Engine durability is assured via enhanced thermal management and mandatory particulate filtration. PDI protocols are designed to eliminate latent defects prior to site deployment, directly supporting fleet uptime targets. SEA LION International warrants all structural components for 5 years/750,000 km against manufacturing defects under normal operating conditions.
End of Report
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared by: SEA LION International
Subject: Logistics Solutions for Exporting New HOWO Dump Trucks from China
Target Audience: Fleet Managers, Construction Equipment Procurement Teams, and Logistics Coordinators
Executive Summary
This report evaluates three primary maritime transport methods for exporting new HOWO dump trucks from manufacturing hubs in China (e.g., Jinan, Qingdao) to global project sites: Roll-on/Roll-off (RO-RO), Bulk Cargo (Loose Vessel Loading), and Flat Rack Container Shipping. Each method is assessed for operational efficiency, cost, equipment safety, and corrosion protection. A standardized wax-based anti-corrosion treatment is recommended across all methods to mitigate seawater exposure risks during ocean transit.
1. Transport Method Comparison
| Parameter | RO-RO (Roll-on/Roll-off) | Bulk Cargo (Loose Loading) | Flat Rack Container (20’/40′) |
|---|---|---|---|
| Loading Mechanism | Self-propelled or towed onto vessel | Craned/lifted into hold | Secured on open-sided flat rack |
| Vehicle Preparation | Minimal (drivable condition) | Requires full immobilization | Requires lashings & chocking |
| Transit Time | Moderate (port-to-port direct) | Moderate to Long (port congestion) | Moderate (subject to container ops) |
| Port Infrastructure | Requires RO-RO terminal | General cargo terminal | Standard container terminal |
| Security Risk | Low (sealed decks) | Moderate (exposed handling) | High (exposed sides, weather) |
| Weather Exposure | Low (enclosed decks) | High (open holds, variable sealing) | Very High (fully exposed) |
| Average Cost (per unit) | $1,800 – $2,400 | $1,500 – $2,000 | $2,600 – $3,500 |
| Damage Incidence Rate | Low (1.2%) | Medium (3.8%) | High (5.1%) |
| Scalability | High (50–100+ units per vessel) | Medium (limited by crane ops) | Low to Medium (container availability) |
| Best Suited For | High-volume fleet shipments | Remote ports without RO-RO access | Oversized or non-driveable units |
Note: Cost estimates based on Shanghai to West Africa/Middle East routes, Q1 2026 freight indices.
2. Corrosion Protection: Wax Spraying System
Exposure to salt-laden marine environments during transit poses a critical risk to unpainted undercarriages, hydraulic systems, and electrical junctions on new HOWO dump trucks. SEA LION International recommends the application of a synthetic polymer-based anti-corrosion wax as a standard pre-shipment treatment.
Wax Spraying Protocol (ISO-Compliant)
| Parameter | Specification |
|---|---|
| Wax Type | Solvent-free, hydrophobic synthetic wax (e.g., Dinitrol LS 400) |
| Application Method | High-pressure spray (12–15 bar) |
| Coverage Areas | Frame rails, suspension components, fuel tanks, wheel hubs, radiator supports, electrical conduits |
| Film Thickness | 30–50 µm (uniform coat) |
| Curing Time | 24 hours at 20°C prior to loading |
| Protection Duration | Up to 12 months (seawater immersion tested) |
| Removal | Biodegradable citrus-based solvent (post-delivery) |
Compliance: Meets ASTM B117 Salt Spray Test standards (1,000-hour resistance).
3. Method-Specific Risk Mitigation
RO-RO
- Advantages: Fast loading, reduced mechanical stress, optimal for drivable units.
- Mitigation: Mandatory wax spray + desiccant packs in cab and engine bay.
- Limitation: Restricted to ports with RO-RO infrastructure (e.g., Lagos, Dubai, Santos).
Bulk Cargo
- Advantages: Lower cost, flexible port access.
- Mitigation: Full wax spray + shrink-wrapping of cab and mirrors. Use of timber dunnage to prevent hull contact.
- Limitation: High handling risk; not recommended for premium-condition delivery.
Flat Rack
- Advantages: Accommodates non-standard dimensions.
- Mitigation: Wax spray + full tarpaulin covering (UV-resistant, 600g/m²) + corner protectors.
- Limitation: Extended exposure increases corrosion and cosmetic damage risk.
4. Recommendations
| Scenario | Recommended Method | Rationale |
|---|---|---|
| Exporting 20+ units to RO-RO-capable port | RO-RO | Optimal cost-to-safety ratio, fast turnaround |
| Single or dual units to remote site | Flat Rack | Flexibility outweighs exposure risk |
| Budget-constrained project, moderate volume | Bulk Cargo | Cost-effective with proper protection |
| High-value fleet with OEM finish requirements | RO-RO + Full Wax Spray | Maximum protection and presentation |
5. Conclusion
For fleet managers and construction firms sourcing HOWO dump trucks from China, RO-RO shipping combined with industrial-grade wax spraying delivers the highest reliability and lowest lifecycle maintenance cost post-import. While Bulk Cargo and Flat Rack options offer logistical flexibility, they require enhanced protective measures to prevent saltwater-induced degradation. SEA LION International advises integrating wax corrosion protection as a non-negotiable step in all export workflows, regardless of transport mode.
Document Control: SEA LION-ISR-2026-LOG-HOWO v1.3
Classification: Internal Use – Industrial Logistics Specification
