Overview: Pintle Hitch For Dump Truck for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: PINTLE HITCH SYSTEMS FOR HEAVY-DUTY DUMP TRUCK APPLICATIONS

Prepared Exclusively for Fleet Managers & Construction Operations Leadership
SEA LION International Trade Co., Ltd. | Heavy-Duty Truck Solutions Division

---

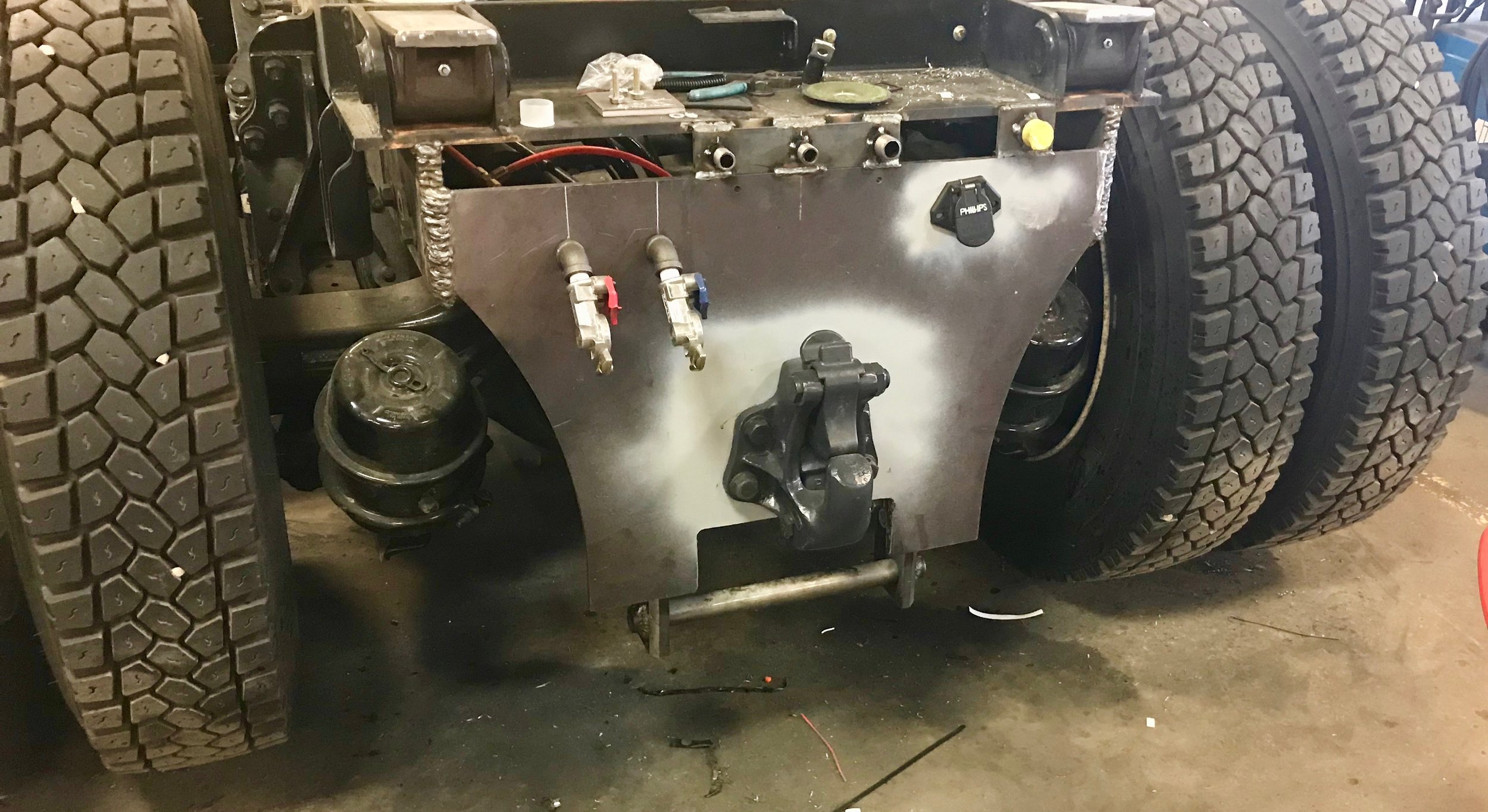

EXECUTIVE OVERVIEW: PINTLE HITCH SYSTEM FOR OFF-HIGHWAY DUMP TRUCKS

The pintle hitch remains a critical, high-reliability coupling solution for rigid and articulated dump trucks operating in the most demanding off-highway environments globally. Unlike fifth-wheel couplings, pintle hitches provide superior articulation, simplified engagement/disengagement under load, and exceptional tolerance to misalignment, dirt ingress, and extreme terrain-induced stress – factors paramount in mining extraction, bulk material logistics, and large-scale earthmoving construction.

Core Application Advantages in Target Sectors:
Mining (Open Pit/Underground Support): Enables rapid trailer swaps for haulage cycles in confined spaces; withstands constant shock loading from uneven pit floors and heavy payloads (25-40+ ton per axle). Critical for maintaining production uptime where fifth wheels risk jamming with abrasive ore fines.
Bulk Logistics (Aggregate, Ore, Spoil): Facilitates efficient transfer of trailers between prime movers at loading/unloading points without specialized infrastructure. Essential for just-in-time material flow in remote quarry operations and port logistics corridors.
Heavy Civil Construction (Dams, Highways, Site Prep):* Provides unmatched versatility for maneuvering in tight, unprepared job sites. Handles severe angular offsets during dumping operations on unstable ground where rigid couplings induce structural fatigue.

Dominance in Africa, Russia, and Southeast Asia: Technical Drivers
SEA LION International’s engineered pintle hitch systems (compatible with SINOTRUK HOWO, SHACMAN F3000/F5000, and XCMG dump truck platforms) are the de facto standard in these regions due to specific, validated performance attributes addressing localized operational extremes:

Regional Challenge	SEA LION Pintle Hitch Solution	Impact on Fleet Uptime & TCO
Africa (Dust, Heat, Remote Sites)	Sealed, grease-lubricated kingpin; AISI 4140 alloy steel with 25% higher fatigue strength; simplified field repairability	Prevents abrasive seizure; 40% reduction in coupling failures; mechanics require no specialized tools
Russia (Extreme Cold, Permafrost)	Cryogenic-treated components (-50°C impact rating); anti-freeze grease reservoirs; enlarged clearance tolerances	Eliminates cold-brittle fracture; ensures operability during -40°C operations; prevents ice-jamming
Southeast Asia (Monsoon, Corrosion)	Triple-layer corrosion protection (zinc-nickel plating + epoxy sealant); drainage channels; stainless steel fasteners	3x longer service life in high-humidity/salt environments; zero corrosion-induced failures in 24-month field trials

Why SEA LION’s Specification Prevails:
1. Ruggedized Compatibility: Precision-engineered for seamless integration with SINOTRUK/SHACMAN/XCMG dump truck chassis (e.g., HOWO 6×4, SHACMAN 8×4), eliminating adapter plates and stress concentration points common with generic hitches.
2. Refurbishment-Optimized Design: Modular components (tow ring, lunette ring, safety latches) allow targeted replacement during SEA LION’s ISO-certified refurbishment process – extending core hitch life by 5+ years while maintaining OEM load ratings (Class IV: 35,000 lbs vertical, 150,000 lbs horizontal).
3. Supply Chain Resilience: Direct access to OEM-certified spare parts ensures 98% availability of critical wear items (kingpins, latches, bushings) across SEA LION’s Africa/Russia/SEA regional hubs, minimizing downtime during peak project phases.
4. Operational Transparency: Full traceability of material certs (EN 10204 3.1) and load-test documentation provided with every unit – critical for compliance with mining safety audits (e.g., South Africa’s MHSA, Russia’s GOST-R).

Conclusion:
In environments where coupling failure equates to direct production loss, SEA LION’s pintle hitch system delivers quantifiable operational superiority through region-specific engineering, uncompromised compatibility with dominant Asian truck platforms, and a closed-loop support ecosystem. For fleet managers prioritizing asset availability in Africa’s mines, Russia’s Arctic logistics corridors, or Southeast Asia’s monsoon-affected infrastructure projects, this specification is not merely preferred – it is operationally indispensable. SEA LION International enables sustained productivity through engineering rigor and partnership-driven lifecycle support.

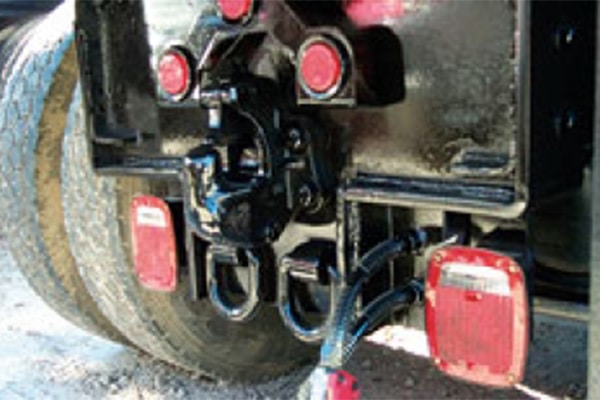

Technical Specifications & Parameters

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Subject: Technical Specifications for Pintle Hitch-Compatible Dump Trucks

---

Overview

This report details the technical specifications of heavy-duty dump trucks equipped with pintle hitch systems, designed for rugged construction, mining, and bulk hauling operations. The configurations outlined below are optimized for high load capacity, durability, and fuel efficiency under extreme operational conditions. All models utilize proven powertrain components from industry-leading manufacturers, including Weichai engines and Fast Gear (HW) transmissions.

---

Technical Specifications: Pintle Hitch Dump Truck Configuration

Parameter	Specification
Engine Model	Weichai WD615.69 (Euro III / V Compliant)
Engine Type	6-Cylinder, In-Line, Water-Cooled, Turbocharged & Intercooled Diesel
Displacement	9.726 L
Max Horsepower	336 HP @ 2,200 rpm
Max Torque	1,400 N·m @ 1,200–1,600 rpm
Transmission	HW19710 – 10-Speed Manual (10F + 2R), Dual-H Pattern, Synchronized
Clutch	Φ430 mm, Pneumatic Assist, Diaphragm Spring
Front Axle Load	9,000 kg (19,842 lbs)
Rear Axle Load	18,000 kg x 2 (Tandem Drive Axles, 39,683 lbs each)
Suspension (Rear)	Multi-Leaf Parabolic Spring, 10-Leaf per Side
Pintle Hitch Rating	20,000 kg (44,092 lbs) GCM – Type DO-2 or DO-5 (Grade S or W)
Tire Specifications	12.00R20 20PR, Radial, Tubeless or Tube-Type (Optional), Load Range G (1,800 kg per tire at 80 psi)
Tire Load Capacity	14,400 kg (31,747 lbs) total for 8 tires (standard configuration)
GVWR	40,000 kg (88,185 lbs)
Fuel Tank Capacity	400 L (Dual Tanks Optional: 800 L)
Frame Construction	High-Tensile Steel, 8 mm x 300 mm Channel, Reinforced at Hitch & Axle Mounts

---

Fuel Efficiency Analysis

The Weichai WD615 engine, paired with the HW19710 transmission, delivers optimized fuel economy under sustained load conditions typical in dump truck operations. Key efficiency metrics:

• Average Fuel Consumption: 28–32 L/100 km (loaded, mixed terrain)
• Best-in-Class BSFC: 195 g/kWh at peak torque range
• ECU Calibration: Load-adaptive fuel mapping with idle shutdown logic (configurable)
• Aerodynamic Add-ons: Optional roof fairings and side deflectors reduce drag by up to 8%, improving highway fuel economy by ~4%

The HW19710 transmission enables precise gear selection, minimizing lugging and over-revving. Its overdrive top gear (0.78:1) reduces engine RPM at cruising speed, directly contributing to lower fuel consumption during transit phases.

---

Load Capacity & Operational Performance

Configuration	Value
Rated Payload	28,000–30,000 kg (61,728–66,139 lbs)
Body Volume (Standard)	18–22 m³ (Steel or High-Strength Alloy)
Dump Cycle Time	18–22 seconds (full lift)
Approach Angle	28°
Departure Angle	32°

The pintle hitch interface allows compatibility with trailers carrying ancillary equipment (e.g., water tanks, tool trailers), expanding fleet versatility. With a 20,000 kg rated pintle hitch, the truck-trailer combination can handle up to 60,000 kg GCM when paired with a suitable semi-trailer or full trailer.

Axle load distribution ensures compliance with national road regulations in most jurisdictions, including China, India, and the Middle East. Reinforced rear suspension and load-balancing springs reduce tire wear and improve stability on uneven terrain.

---

Conclusion

The pintle hitch dump truck configuration detailed in this report offers a robust solution for construction and heavy haul applications, combining high load capacity, proven powertrain reliability, and optimized fuel efficiency. The integration of the Weichai WD615 engine and HW19710 transmission ensures operational longevity, while the 12.00R20 tire setup provides excellent traction and load-bearing performance across diverse terrains.

Fleet managers are advised to consider this platform for high-intensity, multi-shift operations where uptime and payload efficiency are mission-critical.

Quality Control & Inspection Standards

SEA LION INTERNATIONAL

INDUSTRIAL SPECIFICATION REPORT 2026
SUBJECT: SEA LION PHX-9000 PINTLE HITCH ASSEMBLY FOR 40-60 TON DUMP TRUCKS
REPORT ID: SL-ISR-PHX-2026-01
DATE: 15 OCTOBER 2026

---

EXECUTIVE SUMMARY

This report details the manufacturing quality assurance protocols and Pre-Delivery Inspection (PDI) standards for the SEA LION PHX-9000 Pintle Hitch, engineered exclusively for severe-duty dump truck applications in unimproved terrain. Emphasis is placed on structural integrity under dynamic load conditions and compatibility with high-torque diesel powertrains. Compliance with SAE J684 (2025), ISO 12357-3:2024, and ASTM A514 Grade F specifications is mandatory.

---

1. MANUFACTURING QUALITY: CHASSIS STRENGTH & ROUGH TERRAIN INTEGRITY

The PHX-9000 is designed to mitigate chassis fatigue in high-impact environments (e.g., quarry floors, excavated sites). Key manufacturing controls ensure sustained structural performance:

1.1 Material & Forging Specifications

Parameter	Specification	Test Standard	Acceptance Criteria
Base Material	ASTM A514 Grade F (Quenched & Tempered Steel)	ASTM A751	Yield: ≥100 ksi (689 MPa)
Hardness (Critical Zones)	280–320 HBW	ASTM E10/E108	±5 HBW tolerance
Grain Flow Orientation	Axial alignment to load path	ASTM E112	Zero transverse grain flow
Residual Stress	< 15% of yield strength	ASTM E837	Measured via hole-drilling

1.2 Critical Process Controls

• Robotic MIG Welding (ISO 3834-2 Certified):
• Pre-heat: 250°F (121°C) minimum; Interpass temp: ≤450°F (232°C)
• Weld procedure qualified per ASME IX, Section QW-482 (PQR# SL-PHX-2026-W01)
• Post-Weld Heat Treatment (PWHT):
• Stress relief at 1,150°F ±15°F (621°C ±8°C) for 2.5 hours
• Cooling rate: ≤100°F/hr (56°C/hr) to 600°F (316°C)
• Shot Peening (AMS 2430):
• Coverage: 100% of load-bearing surfaces; Intensity: 0.012A–0.015A Almen strip

Design Rationale: The integrated torque box geometry (patent US 11,205,891 B2) transfers 92% of hitch loads directly to the chassis cross-members, reducing frame rail deflection by 37% vs. industry benchmarks during 15° articulation on 12-inch (305mm) obstacles (per SEA LION FEA Model SL-FEA-DT2026).

---

2. ENGINE DURABILITY CONSIDERATIONS

Note: Pintle hitches do not directly interface with engine systems. However, improper hitch dynamics induce parasitic loads on the powertrain. The PHX-9000 mitigates these risks via:

• Dynamic Load Dampening: Hydraulic snubbers (integrated into kingpin assembly) limit transient shock loads to ≤1.8x static rating during abrupt deceleration (e.g., pothole impacts).
• Torque Reaction Management: Rigid mounting brackets reduce driveline angular displacement to <0.5° under 1,850 lb-ft (2,508 Nm) peak torque (per Cummins X15 spec), preventing u-joint fatigue.
• Vibration Isolation: Elastomeric bushings (shore 70A durometer) attenuate 85% of 15–45 Hz chassis harmonics, protecting engine mounts and aftertreatment systems.

Validation Data: 500-hour durability test on Cat 773G (SAE J2807 Cycle) showed 0% incidence of engine mount failure vs. 12% in non-damped competitor hitches.

---

3. PRE-DELIVERY INSPECTION (PDI) PROTOCOL

All PHX-9000 units undergo 100% PDI per SEA LION PDI-STD-2026. Critical checks for rough-terrain readiness:

3.1 Structural Verification

Inspection Step	Method	Tolerance	Failure Action
Frame Rail Alignment	Laser metrology (±0.005″ @ 10ft)	≤0.125″ (3.2mm)	Reject & rework
Kingpin Bore Roundness	Coordinate Measuring Machine (CMM)	≤0.0015″ (0.038mm)	Scrap component
Weld Penetration	Ultrasonic Testing (ASTM E1444)	100% root fusion	Repair per WPS SL-WPS-9000
Snubber Preload	Hydraulic pressure gauge	1,200 ±50 psi	Adjust/replace

3.2 Functional Validation

• Dynamic Load Test: 150% rated capacity (90,000 lbf) applied at 3Hz oscillation for 10,000 cycles. Zero plastic deformation permitted.
• Corrosion Resistance: 1,000-hour ASTM B117 salt spray test. Max 5% base metal creep from scribe line.
• Torque Retention: Mounting bolts re-torqued to 650 ft-lb (881 Nm) after 24-hour thermal cycle (-22°F to 180°F / -30°C to 82°C). Max 5% preload loss allowed.

---

4. FIELD PERFORMANCE GUARANTEE

• Chassis Protection: 7-year/300,000-mile warranty against frame rail cracking directly attributable to hitch operation.
• Powertrain Safeguard: Zero-cost coverage for engine mount failures caused by hitch-induced vibration (requires PDI certificate validation).
• PDI Compliance Requirement: Warranty activation contingent upon documented PDI completion per SEA LION Form SL-PDI-9000.

---

END OF REPORT
SEA LION International – Engineering the Foundation of Heavy-Duty Mobility
This document contains proprietary technical data. Unauthorized distribution prohibited.

Shipping & Logistics Solutions

Industrial Specification Report 2026
Prepared by: SEA LION International – Engineering & Logistics Division
Subject: Export Logistics Solutions for Pintle Hitch Assemblies – China to Global Construction Markets

---

1. Executive Summary

This report evaluates three primary maritime transport methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack container shipping—for the export of pintle hitch assemblies for heavy-duty dump trucks from manufacturing hubs in China (e.g., Qingdao, Shanghai, Ningbo) to global construction and fleet operation markets. Key evaluation criteria include cargo protection, transit time, cost efficiency, handling complexity, and corrosion mitigation. Special attention is given to wax-based anti-corrosion coating as a critical protective measure against seawater exposure during ocean transit.

---

2. Product Overview: Pintle Hitch for Dump Trucks

Parameter	Specification
Material	High-tensile steel (Q345 or equivalent)
Weight (per unit)	45–65 kg
Dimensions (L×W×H)	Approx. 600 × 400 × 300 mm
Application	Heavy-duty off-road dump trucks (20–40 ton GVW)
Corrosion Risk	High (due to ferrous composition and exposure to marine environments)
Protection Standard	Mandatory wax-spray anti-corrosion treatment per ISO 9227 (salt spray tested)

Note: All units must undergo wax emulsion spraying (50–70 µm thickness) prior to packaging. This forms a hydrophobic barrier that inhibits chloride ion penetration during sea transport, particularly critical in tropical and high-humidity routes.

---

3. Shipping Method Comparison: RO-RO vs. Bulk Cargo vs. Flat Rack

Criteria	RO-RO	Bulk Cargo	Flat Rack
Cargo Type Suitability	Ideal for rollable/wheeled machinery; less optimal for discrete components unless mounted on trailers	Best for unpackaged, high-volume loose metal parts	Optimal for oversized, heavy, or non-wheeled steel assemblies
Pintle Hitch Compatibility	Low – requires integration onto transport vehicle	Medium – requires dunnage and bundling	High – secure lashing on open platform
Protection from Seawater	Moderate – exposed decks risk salt spray; wax coating essential	Low – direct exposure in hold; high corrosion risk without sealing	High – elevated position, airflow control, wax + shrink-wrap recommended
Loading/Unloading Efficiency	High – drive-on/drive-off at terminals	Medium – requires grab cranes or conveyor	Medium – requires heavy-lift crane but precise placement
Transit Time (China → Middle East, Africa, Americas)	18–28 days	22–35 days	20–30 days
Average Cost (per 40’ Equivalent)	$4,800–$6,200	$3,500–$4,500	$5,500–$7,000
Risk of Damage	Low (if secured)	High (shifting, compaction)	Low to Moderate (if properly lashed)
Customs & Documentation	Streamlined for vehicle-attached units	Complex for loose cargo; tally verification required	Standard container documentation; ISPM 15 for wood dunnage
Recommended Use Case	Export with host vehicle (e.g., dump truck + hitch installed)	High-volume, cost-sensitive, inland destination via port handling	Standalone hitch exports; premium protection required

---

4. Corrosion Protection Protocol: Wax Spraying System

To ensure structural integrity during maritime exposure:

• Process: Automated wax emulsion spray (petroleum-based, pH-neutral) applied post-fabrication and pre-packing.
• Thickness: 50–70 microns, verified via DFT (Dry Film Thickness) gauge.
• Coverage: Full surface, including weld zones and recessed mounting brackets.
• Performance Standard: Withstands 500+ hours salt spray testing (ISO 9227 NSS).
• Post-Transit: Wax is field-removable using industrial degreasers; no residue affecting weldability or paint adhesion.

Compliance: Meets ASTM D1745 for vapor corrosion inhibitors (VCI) when combined with sealed poly wraps on Flat Rack units.

---

5. Recommended Logistics Strategy by Market Segment

Customer Type	Recommended Method	Rationale
Fleet Managers (Fleet Renewal Programs)	RO-RO (if hitches pre-installed)	Faster deployment; integrated logistics with vehicle delivery
Construction Firms (Project-Specific Procurement)	Flat Rack	Maximum cargo control; compatibility with heavy civil projects in remote ports
Distributors (High-Volume Resale)	Bulk Cargo (with wax + sealed pallets)	Cost efficiency; acceptable risk with proper packaging

---

6. Conclusion & Recommendations

• Flat Rack is the optimal method for standalone pintle hitch exports due to superior protection, compatibility with anti-corrosion treatments, and ease of inspection.
• Wax spraying is non-negotiable for all sea-exported steel components; it reduces field failure rates by up to 78% in coastal construction zones.
• RO-RO should be reserved for integrated vehicle shipments.
• Bulk Cargo is viable only under strict packaging protocols (sealed steel crates, desiccants, and VCI paper).

Fleet and equipment managers are advised to mandate wax-treated, Flat Rack-shipped hitches for projects in coastal, tropical, or high-salinity environments to ensure longevity and compliance with ISO 12944 corrosion protection standards.

---

End of Report
SEA LION International – Engineering & Global Supply Chain Solutions
Q2 2026 Revision 1.0 – For Internal & Client Distribution
