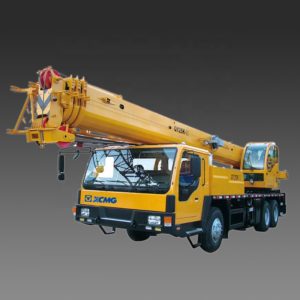

New 30 ton hydraulic Truck Crane price QY30V532

Feature:Truck Crane

Condition:New

Application:Construction Industry

Rated Loading Capacity:25000kg

Rated Lifting Moment:961kn.m

Max. Lifting Height:52m

Span:8m

Place of Origin:Jiangsu, China (Mainland)

Certification:ISO

Warranty:1 Year After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas

Model: truck crane QY25K-II

Engine model:D6114ZLQ5B

Engine rated power:158kW/(r/min)

Max. rated total lifting capacity:25T

Base boom:10.5m

Fully extended boom:32.5m

Fully extended boom+jib:40.8m

Send Inquiry

Description

New 30 ton hydraulic Truck Crane price QY30V532

Name: New 30 ton hydraulic Truck Crane price QY30V532
SKU: 11532
Price: 157848.60 USD
Availability: InStock

QY25K-II 4-Section Boom 25t Hydraulic Truck Crane Price

Main parameters:

Max. rated total lifting capacity: 25T

Fully extended boom:39.2M

Fully extended boom+jib:47.2M

Main configuration:

* SHANGCHAI engine, SC8DK280Q3WD615.329(206/213kw)

* Wire rope

* Hirschmann PAT

*Heater

Dimension	Unit	QY25K5-I
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3290/3380
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3WD615.329
Engine rated power	kW/(r/min)	206/2200 213/2200
Engine rated torque	N.m/(r/min)	1112/1400 1160/1100-1600
Travel
Max. travel speed	km/h	75/80
Min. turning diameter	mm	21500
Min. ground clearance	mm	272
Approach angle	°	16/13
Departure angle	°	13
Max. grade ability	%	30/40
Fuel consumption for 100km	L	39
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	m	3
Turning radius at turntable tail	mm	3065
Max. lifting torque	KN.m	961
Base boom	m	10.5
Fully extended boom	m	39.2
Fully extended boom+jib	m	47.2
