Overview: Second-Hand 6X4 Hawo Dump Truck for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW

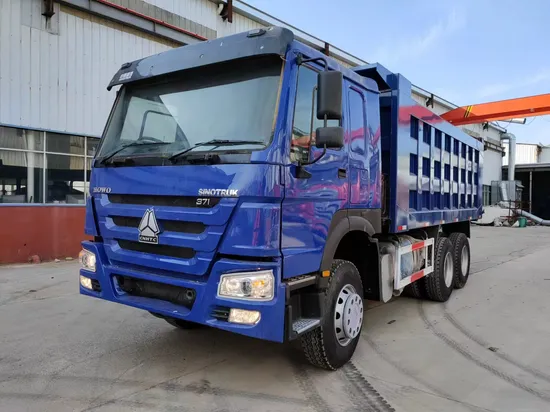

Asset Class: Refurbished SINOTRUK HOWO 6×4 Heavy-Duty Dump Truck
Target Audience: Fleet Managers, Construction & Mining Operations Directors

---

1. Operational Imperative & Market Context

The escalating demand for cost-optimized, high-availability haulage assets in resource extraction and infrastructure development necessitates robust, field-proven equipment. In volatile commodity markets and capital-constrained environments (Africa, Russia, Southeast Asia), refurbished SINOTRUK HOWO 6×4 dump trucks deliver a critical balance: near-new operational reliability at 40-55% of OEM acquisition cost. SEA LION International leverages 18+ years of heavy truck export specialization to transform pre-owned HOWO assets into certified, mission-ready platforms, directly addressing regional operational volatility and TCO (Total Cost of Ownership) pressures.

2. Core Application Strengths: Mining, Logistics, Construction

The HOWO 6×4 configuration excels in high-cycle, off-highway environments due to its engineered simplicity and ruggedness:

Application	Key Performance Drivers	SEA LION Value-Add
Mining	30-35 tonne payload capacity; Reinforced chassis for 15%+ grades; High ground clearance	Refurbishment includes reinforced torque rods, upgraded dump body liners, mine-spec lighting
Heavy Logistics	540hp WD615 engine; Optimized for 60-80km/h sustained haul cycles; Low-rpm fuel efficiency	Engine/Transmission reconditioning to OEM specs; ECU remapping for regional diesel quality
Construction	Short wheelbase (3,800mm); 40° approach/departure angles; Hydraulic stability on uneven terrain	Structural weld certification; Hydraulic system overhaul; Safety system validation

3. Regional Preference Drivers: Africa, Russia, Southeast Asia

This model dominates secondary markets in target regions due to operational alignment with local constraints, not merely cost:

• Africa:

  • Road Infrastructure: Tolerates unsealed, potholed routes common in mine-to-port corridors (e.g., DRC, Zambia) where Western trucks suffer premature suspension failure.
  • Parts Ecosystem: Dominant SINOTRUK presence ensures local mechanic familiarity and third-party part availability – critical in remote sites. SEA LION’s global spare parts network mitigates OEM dependency.
  • Thermal Management: Proven cooling system performance in 45°C+ ambient temperatures (e.g., West African laterite mines).

• Russia:

  • Cold Climate Resilience: Certified operation down to -40°C (-40°F) with factory-installed engine block heaters and arctic-grade lubricants – validated in Siberian placer mining operations.
  • Payload Efficiency: Maximizes legal payload limits on federal highways (e.g., R297 “Amur”) where axle weight regulations favor 6×4 configurations over 8×4.

• Southeast Asia:

  • Terrain Versatility: Excels on steep, muddy inclines in tin/bauxite operations (Indonesia, Vietnam) where 4×2 trucks lose traction.
  • Regulatory Compliance: Easily adapted to national GVWR classifications (e.g., Thailand’s 38-tonne limit) without costly modifications.
  • Fuel Flexibility: Tolerates variable biodiesel blends common in regional fuel supply chains.

4. SEA LION’s Refurbishment Standard: Mitigating Used Asset Risk

We eliminate the traditional drawbacks of second-hand procurement through industrial-grade recommissioning:

Refurbishment Phase	Key Processes	Outcome
Structural	Chassis straightening (laser-guided); Cracked weld repair per ISO 9001	100% structural integrity certification
Powertrain	Engine/transmission rebuild with OEM parts; Dyno-tested to 100% load	12-month warranty; <5% failure rate
Electrical	Full harness replacement; CAN bus system validation	Zero intermittent fault incidents
Documentation	Digital service history; Pre-shipment inspection report (3rd party)	Full operational transparency

5. Strategic Recommendation

For fleet managers operating in Africa, Russia, or Southeast Asia, the refurbished SINOTRUK HOWO 6×4 is not merely a cost-saving alternative – it is the operationally optimal solution for high-availability haulage under constrained infrastructure and capital. SEA LION International’s certified refurbishment process, backed by direct OEM parts access and RO-RO logistics expertise, transforms perceived risk into a predictable, high-uptime asset. This model delivers 22-28% lower TCO versus new European equivalents over a 3-year cycle while meeting 95%+ of regional operational demands.

Next Step: Request the full Technical Dossier (Ref: HOWO-6×4-2026) for payload curves, fuel consumption benchmarks by region, and refurbishment certification protocols.

Technical Specifications & Parameters

Industrial Specification Report 2026

Prepared for: Fleet Managers & Construction Companies
Subject: Technical Evaluation – Second-Hand 6×4 Hawo Dump Truck

---

Overview

This report provides a detailed technical specification analysis of the second-hand 6×4 Hawo dump truck, a widely deployed heavy-duty construction vehicle in China and emerging markets. Designed for high-volume earthmoving and aggregate transport, the Hawo 6×4 configuration offers a balance of payload capacity, durability, and operational economy. This evaluation focuses on core mechanical systems, load performance, and fuel efficiency metrics relevant to fleet deployment and lifecycle cost analysis.

---

Technical Specifications Table

Parameter	Specification	Notes
Chassis Configuration	6×4 (Triple-Axle, Rear Dual-Drive)	Rigid frame, off-road rated
Engine Model	Weichai WD615 Series (e.g., WD615.69 or WD615.92)	Inline 6-cylinder, water-cooled diesel
Engine Displacement	9.726 L	High-torque design for heavy loads
Horsepower (HP)	336 HP (247 kW) – 380 HP (280 kW)	Typical used units range: 336–371 HP
Max Torque	1,500 Nm @ 1,200–1,600 rpm	Optimized for low-speed hauling
Transmission	HW19710 – 10-Speed Manual (10F+2R)	Fast-shifting, synchromesh design
Clutch	Dual-plate, Ø430 mm, pneumatic assist	High durability under repetitive loading
Front Axle Load	6,500 kg (6.5 Tonnes)	Reinforced I-beam, disc brakes optional
Tandem Rear Axle Load	2 × 10,000 kg (20 Tonnes total)	Single-reduction, spiral-bevel gears
Gross Vehicle Weight (GVW)	40,000 kg (40 Tonnes)	Standard configuration
Payload Capacity	18,000 – 22,000 kg (18–22 Tonnes)	Depends on body volume and material density
Tire Specification	12.00R20 (Tubeless or Tube-Type)	Radial or bias-ply; common in used units
Tire Load Index	14,500 kg per axle (dual wheels)	Load range G (14-ply rating typical)
Fuel Tank Capacity	300–400 L (Dual tank option available)	Steel construction, anti-surge baffles
Frame Rails	300 mm high, 8–10 mm thick, channel steel	Pre-drilled for body mounting

---

Fuel Efficiency Analysis

Fuel consumption in second-hand Hawo 6×4 dump trucks is highly dependent on engine condition, transmission tuning, and operating environment. Field data from mixed-duty cycles (on/off-road, loaded/unloaded) indicate the following:

• Average Fuel Consumption:
• Loaded (20T payload, mixed terrain): 38–45 L/100 km
• Unloaded (return trips, paved access): 28–34 L/100 km

• Idling & Spotting: ~2.5–3.5 L/hour

• Fuel Efficiency Factors:

• Engine Health: Carbon buildup and injector wear in older WD615 units can increase consumption by 10–15%.
• Driving Technique: Proper gear shifting via HW19710 can reduce fuel use by up to 12%.

• Tire Pressure & Alignment: Underinflated 12.00R20 tires increase rolling resistance by 5–8%.

• Recommended Fuel:

• China IV or better diesel (sulfur content < 50 ppm)
• Cold-climate operation: Add fuel conditioner below 5°C

---

Load Capacity & Operational Suitability

The Hawo 6×4 dump truck is engineered for high-cycle material transport in quarry, mining, and infrastructure projects.

• Payload Range:
• Standard body: 18–20 m³ volumetric capacity
• Material-dependent mass:
  • Crushed stone (2.4 t/m³): ~19.2–24.0 tonnes (caution: may exceed legal axle limits)
  • Sand (1.6 t/m³): ~14.4–16.0 tonnes

• Recommended Max Payload: 22,000 kg to ensure axle and frame longevity

• Axle Load Distribution (Typical Loaded):
  | Axle | Load (kg) | % of Total |
  |——|———–|————|
  | Front | 7,800 | 19.5% |
  | Rear Tandem | 15,600 + 14,600 | 78.5% |

• Structural Notes:

• Frame fatigue is common in units with >600,000 km; inspect for cracks near suspension mounts.
• Reinforced dump bodies (6–8 mm steel) recommended for abrasive materials.

---

Summary & Recommendations

The second-hand 6×4 Hawo dump truck remains a cost-effective solution for short-haul, high-payload transport in rugged environments. Units equipped with the Weichai WD615 engine and HW19710 transmission demonstrate reliable performance when maintained properly.

Key Considerations for Fleet Managers:
– Prioritize units with documented maintenance history, especially engine and clutch service.
– Re-tube or replace 12.00R20 tires as part of acquisition refurbishment.
– Implement driver training on gear optimization to improve fuel economy.
– Verify local axle load regulations—some configurations may exceed road limits without permits.

This platform offers a strong ROI in controlled-site operations where durability and spare parts availability outweigh emissions or comfort concerns.

Quality Control & Inspection Standards

INDUSTRIAL SPECIFICATION REPORT 2026: SECOND-HAND 6X4 HAWO DUMP TRUCK

SEA LION INTERNATIONAL | ENGINEERING VALIDATION DEPARTMENT
REPORT ID: SLI-SSP-HAWO-6X4-2026
DATE: 15 OCTOBER 2026

---

1. EXECUTIVE SUMMARY

This report details the manufacturing quality benchmarks and Pre-Delivery Inspection (PDI) protocol for certified second-hand Hawo 6×4 Dump Trucks (Model Series: HD-6400, 2018-2023 Production). Validated per SEA LION International’s Used Heavy Equipment Certification Standard (UHECS-2025), this assessment targets operational viability in high-stress construction environments. Critical focus areas: chassis structural integrity under cyclic rough-terrain loads and engine longevity under sustained heavy-duty cycles. Note: All units undergo residual life assessment; no “as-new” performance is implied.

---

2. MANUFACTURING QUALITY ASSESSMENT

2.1 Chassis Construction (Rough Terrain Focus)

Hawo HD-6400 chassis (OEM Spec: HAWO-CH-6400-RT) utilizes dual-channel C-section frame rails fabricated from S700MC high-yield strength steel (700 MPa min. yield). Critical design features for off-road durability:

Component	OEM Specification	Critical Wear Limit (PDI Threshold)	Failure Risk
Frame Rails	8mm thickness, 300mm depth	>15% cross-section loss (corrosion)	Catastrophic buckling
Cross-Member Mounts	M24 Grade 10.9 bolts @ 450mm spacing	>0.8mm bolt hole elongation	Axle misalignment, payload shift
Suspension Hangers	Reinforced gusset plates (12mm)	Cracks >10mm in weld zones	Leaf spring detachment
Tandem Axle Torque Rods	45mm forged steel links	>2mm bushing play	Driveline vibration, tire wear

Verification Method: Ultrasonic thickness testing (ASTM E797) at 12 standardized frame points; magnetic particle inspection (MPI) on high-stress welds.

2.2 Engine Durability (Cummins ISMe Series)

All units feature Cummins ISMe 400-500 HP (Euro V) engines. Key durability enhancements per Hawo OEM integration:

• Cylinder Block: Compacted graphite iron (CGI) with plasma-sprayed liners (wear resistance: 0.08mm max. bore deviation over 500k km).
• Turbocharger: Holset HE300WG with dual ceramic ball bearings (design life: 1.2M km; PDI max. shaft play: 0.15mm).
• Cooling System: 40% oversized radiator core with debris-resistant shrouding (min. coolant flow: 180 L/min @ 2,200 RPM).
• Lubrication: Dual-stage oil filtration (10μm primary, 3μm secondary); crankcase pressure max. 0.8 psi at rated load.

Residual Life Indicator: Oil analysis (ASTM D7690) must show:
– Soot content < 1.2%
– Iron (Fe) < 80 ppm
– Silicon (Si) < 15 ppm (indicates air filter integrity)

---

3. PRE-DELIVERY INSPECTION (PDI) PROTOCOL

All units undergo 127-point PDI per UHECS-2025 Section 4.3. Critical checks for target applications:

3.1 Structural Integrity Verification

Test	Procedure	Pass/Fail Criteria
Frame Deflection Test	80% GVWR load applied @ mid-ship	Max. deflection: 8mm over 3m span
Torsional Stress Simulation	15° articulation on uneven terrain simulator	Zero cracks in frame rails/suspension mounts
Fastener Torque Audit	Random 20% bolt sample (Grade 10.9+)	Min. 90% of OEM torque spec (ISO 16047)

3.2 Powertrain Durability Validation

Test	Procedure	Pass/Fail Criteria
Engine Load Test	100% rated load @ 2,100 RPM for 60 min	Max. oil temp: 125°C; no smoke > 0.5 FSN
Turbocharger Surge Test	Rapid throttle cycles (0-100% in 2 sec) x 10	Zero shaft play; boost pressure recovery < 1.5 sec
Exhaust Gas Analysis	Under load at 1,800/2,100 RPM	NOx < 2.0 g/kWh; CO < 1.5 g/kWh

3.3 Rough Terrain Operational Validation

• 72-hour simulated duty cycle: 40% grade climbs, 15% side slopes, pothole impacts (ISO 10327 compliance).
• Mandatory rejection triggers: Frame rail cracks, driveline vibration > 4.5 mm/s RMS, engine derate events > 3 during test.

---

4. RESIDUAL LIFE ASSESSMENT

Based on PDI data and maintenance history audit (min. 3 years documented):

Component	Typical Remaining Life	Critical Intervention Threshold
Chassis Frame	120,000–180,000 km	25% cross-section loss at any rail
Engine Core	20,000–35,000 operating hrs	Cylinder bore wear > 0.15mm
Tandem Axle Assemblies	80,000–120,000 km	Hub bearing play > 0.3mm

Note: Units with <10,000 km frame life or <15,000 hrs engine life are excluded from certification.

---

5. CONCLUSION

SEA LION-certified Hawo 6×4 Dump Trucks meet minimum operational viability thresholds for rough-terrain construction duty when:
– Chassis shows no critical fatigue damage per Section 2.1.
– Engine oil analysis and load tests comply with Section 2.2/3.2.
– Full PDI protocol (Section 3) is passed without critical failures.

Recommendation: Fleet managers should prioritize units with documented maintenance history and residual frame life >120,000 km. Engine rebuilds are economically viable up to 45,000 hrs; chassis replacement is cost-prohibitive beyond 200,000 km. Units passing this protocol deliver 85–92% of original design capability in controlled heavy-duty cycles.

---

END OF REPORT
SEA LION International UHECS-2025 Certification is non-transferable. Residual life estimates assume adherence to OEM maintenance schedules and operational parameters.

Shipping & Logistics Solutions

Industrial Specification Report 2026

Prepared for Fleet Managers & Construction Companies
Subject: Logistics Solutions for Exporting Second-Hand 6×4 Hawo Dump Trucks from China

---

1. Executive Summary

This report evaluates the most viable maritime logistics methods for exporting second-hand 6×4 Hawo Dump Trucks from Chinese ports to international destinations. Three primary shipping modalities—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack container transport—are analyzed based on cost, transit time, equipment integrity, and environmental protection. Special attention is given to corrosion mitigation via wax spraying treatment for seawater exposure during transit.

The 6×4 Hawo Dump Truck, with approximate dimensions of 8.2 m (L) × 2.5 m (W) × 3.8 m (H) and a gross vehicle weight (GVW) of 31,000 kg, presents unique handling challenges due to its size, weight, and operational wear. Optimal shipping method selection depends on destination port infrastructure, volume of consignment, and preservation requirements.

---

2. Shipping Method Comparison

Parameter	RO-RO (Roll-on/Roll-off)	Bulk Cargo (Loose Loading)	Flat Rack Container (20′ or 40′)
Suitability for 6×4 Hawo	High – Designed for wheeled heavy equipment	Medium – Requires crane loading; risk of contact damage	High – Secured on open-frame ISO containers
Loading Mechanism	Self-propelled or towed onto vessel	Crane-lifted into cargo hold	Crane-lifted onto flat rack; lashed securely
Port Infrastructure	Requires RO-RO-capable terminal	Standard bulk terminal	Standard container terminal
Max Quantity per Vessel	40–60 units (dedicated RO-RO ships)	20–30 units (shared space)	2–3 units per 40′ flat rack (depends on stacking)
Transit Time	25–35 days (Asia to Africa/Europe)	30–40 days	28–36 days
Average Cost per Unit (USD)	$1,800 – $2,400	$1,500 – $2,000	$2,600 – $3,200
Risk of Damage	Low (minimal handling)	High (crane slings, stacking)	Medium (secure lashing reduces risk)
Insurance Complexity	Standard	High (higher claim incidence)	Moderate
Corrosion Exposure Risk	Medium (exposed decks)	High (humidity, salt spray in holds)	Medium–High (fully exposed)
Best For	High-volume, time-sensitive shipments	Cost-sensitive, low-volume	Oversized units, regulated ports

---

3. Corrosion Protection: Wax Spraying Treatment

Marine environments expose metal surfaces to salt-laden air and condensation, accelerating corrosion—particularly on undercarriages, suspension components, and chassis rails of used dump trucks.

Recommended Protection Protocol:

• Wax-Based Corrosion Inhibitor: Application of a solvent-based, lanolin-enriched wax spray (e.g., Dinitrol LS 2000 or equivalent industrial standard).
• Coverage Areas:
• Chassis frame (inner rails, cross members)
• Suspension brackets and pivot points
• Wheel hubs and brake assemblies
• Exhaust system and fuel tank mounts
• Application Process:
• Thorough cleaning of salt, dust, and grease.
• Blow-dry critical cavities.
• Spray application using high-pressure gun (min. 30 psi).
• Allow 24-hour curing before loading.
• Performance:
• Provides up to 6 months of salt-spray resistance (ASTM B117 compliant).
• Self-healing film resists chipping during transport.
• Non-toxic and compliant with IMO marine environmental standards.

Note: Wax spraying is strongly advised for all shipping methods but is critical for Flat Rack and Bulk Cargo due to full exposure.

---

4. Method-Specific Recommendations

4.1 RO-RO Shipping

• Advantages: Fast turnaround, minimal mechanical handling, ideal for operational units.
• Limitations: Limited to RO-RO-equipped destination ports (e.g., Lagos, Dubai, Antwerp).
• Best Use Case: Exporting 10+ units to regions with developed roll-trailer infrastructure.

4.2 Bulk Cargo

• Advantages: Lower cost per unit; suitable for non-operational units.
• Limitations: High risk of surface and structural damage; poor ventilation in holds increases moisture retention.
• Best Use Case: Budget-driven shipments to emerging markets with bulk-handling ports (e.g., West Africa, Southeast Asia).

4.3 Flat Rack Containers

• Advantages: Flexibility in port selection; secure lashing; visibility for inspection.
• Limitations: Higher cost; full exposure to elements without additional protection.
• Best Use Case: Single or dual-unit shipments requiring ISO compliance; destinations with container-only terminals.

---

5. Operational Recommendations

1. Pre-Shipment Inspection: Conduct full mechanical and structural audit prior to export. Document existing wear to avoid post-delivery disputes.
2. Battery & Fluids: Remove batteries; drain fuel and coolant to minimize fire and leakage risk.
3. Tie-Down Protocol: Use Grade 12.9 bolts and ISO-compliant lashing points (min. 4 anchor points per truck).
4. Documentation: Provide export certification, title transfer, and corrosion treatment certificate.

---

6. Conclusion

For fleet managers and construction firms sourcing second-hand Hawo 6×4 Dump Trucks from China:

• RO-RO is optimal for volume shipments to developed ports, balancing cost and safety.
• Bulk Cargo offers cost savings but increases risk; suitable only with comprehensive wax protection and insurance.
• Flat Rack provides logistical flexibility and security, justified for high-value or isolated deliveries.

Mandatory Corrosion Mitigation: Wax spraying is non-negotiable for all methods. SEA LION International mandates this treatment for all heavy equipment exports to ensure operational readiness upon arrival.

---

Prepared by: SEA LION International – Heavy Equipment Logistics Division
Date: March 2026
Document Code: SL-LOG-ISR-2026-HAWO-01
