Overview: Sinotruck Howo Tractor Truck for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW
SINOTRUK HOWO TRACTOR TRUCK PLATFORM
Prepared for Fleet Managers & Construction Operations Leadership
1. CORE VALUE PROPOSITION
The SINOTRUK HOWO Tractor Truck (Model Series: ZZ4257N3247N1B) represents a validated solution for high-utilization haulage in mining, heavy logistics, and large-scale construction. Engineered for operational resilience under extreme conditions, its design prioritizes Total Cost of Ownership (TCO) optimization through:
– Proven Powertrain Durability: MAN-technology-derived WD615/WP10H series diesel engines (336-430 HP) coupled with FAST/SINOTRUK transmissions, delivering 1,500-2,100 Nm torque at low RPMs for demanding gradeability and payload cycles.
– Rugged Chassis Architecture: 8×4/6×4 configurations with reinforced ladder frames (yield strength ≥ 700 MPa), parabolic leaf springs, and Dana/Beiben axles (16T+ rear axle capacity) for sustained 80-100 tonne GCM operations.
– Operational Uptime Focus: Standardized modular components enabling <4-hour critical repair cycles in-field, supported by SEA LION’s global spare parts network (98.5% availability rate for top 50 SKUs).
2. SECTOR-SPECIFIC APPLICATION VALIDATION
Table 1: Operational Performance Metrics by Industry Segment
| Application | Key Configuration | Critical Performance Metric | Measured Outcome |
|---|---|---|---|
| Open-Pit Mining | ZZ4257N3247N1B (8×4) | Payload Capacity (Tare Weight) | 85 tonnes net @ 28.5 tonnes tare |
| Mean Distance Between Failures (MDBF) | 12,500 km (West African iron ore sites) | ||
| Bulk Logistics | ZZ4257S3541W (6×4) | Fuel Consumption (Loaded) | 28.7 L/100km @ 65 tonne GCM (SEA routes) |
| Annual Maintenance Cost (vs. EU comp.) | 22% lower (18-month field data) | ||
| Heavy Construction | ZZ4257W3247N1B (8×4 w/ Hi-Lift) | Gradeability (Loaded) | 32% @ 8 km/h (Andes mountain corridors) |
| Cab Suspension Isolation (ISO 2631) | ≤0.8 m/s² (reduced operator fatigue) |
3. REGIONAL PREFERENCE DRIVERS: AFRICA, RUSSIA, SOUTHEAST ASIA
The HOWO platform dominates in target emerging markets due to systemic alignment with local operational constraints, not merely cost. SEA LION’s 18-year field data confirms three decisive factors:
Table 2: Regional Adaptation Advantages
| Market | Critical Operational Challenge | HOWO Engineering Response | SEA LION Value-Add |
|---|---|---|---|
| Africa | Extreme dust, poor roads, fuel quality | Sealed air filtration (IP67), reinforced undercarriage, multi-fuel compatible engines (EN 590 Cat III) | Pre-deployment grit-proofing; localized fuel additive protocols |
| Russia | -45°C ambient, permafrost instability | Arctic-grade lubricants (-50°C pour point), dual-battery cold-start (-35°C guaranteed), reinforced suspension geometry | Certified winterization kits; remote diagnostics for remote sites |
| Southeast Asia | High humidity, monsoon conditions, weight restrictions | Corrosion-resistant chassis coating, optimized cooling circuits, modular weight-reduction packages | Monsoon-season maintenance bundles; axle load compliance certification |
Why Preference Persists:
– Infrastructure Resilience: 60% higher tolerance for unpaved road shock vs. EU/NA equivalents (measured via frame stress analysis).
– Parts Ecosystem Scalability: 85% component commonality across SINOTRUK’s mining/construction portfolio enables cross-fleet sparing—critical in regions with fragmented service networks.
– TCO Validation: 3-year lifecycle cost analysis in Nigerian logistics shows 19.3% TCO advantage over legacy Western brands under equivalent duty cycles.
4. SEA LION INTEGRATED SUPPORT FRAMEWORK
As an authorized SINOTRUK distributor and technical partner, SEA LION eliminates traditional barriers to HOWO adoption:
– Refurbishment Standard: ISO 9001-certified process restoring used HOWO units to 92% OEM performance (verified via dyno testing), extending asset life by 5+ years.
– Spare Parts Integrity: Direct-from-factory sourcing with blockchain-tracked components; zero counterfeit risk in critical systems (brakes, steering, engine).
– Deployment Certainty: End-to-end logistics via RO-RO (for CKD/SKD) or containerized units, including customs clearance in 147 target ports.
CONCLUSION
The SINOTRUK HOWO Tractor Truck is not a “low-cost alternative” but a purpose-engineered asset for environments where infrastructure volatility, climate extremes, and operational intensity define success. Its dominance in Africa, Russia, and Southeast Asia stems from quantifiable durability, serviceability under constraint, and a lifecycle economics model validated by SEA LION’s field data. For fleet managers prioritizing asset availability and predictable operational costs, the HOWO platform delivers industrial-grade reliability where it matters most.
SEA LION International Trade Co., Ltd. — Engineering Confidence in Global Heavy Transport
Technical Specifications & Parameters
Industrial Specification Report 2026
Prepared for Fleet Managers & Construction Companies

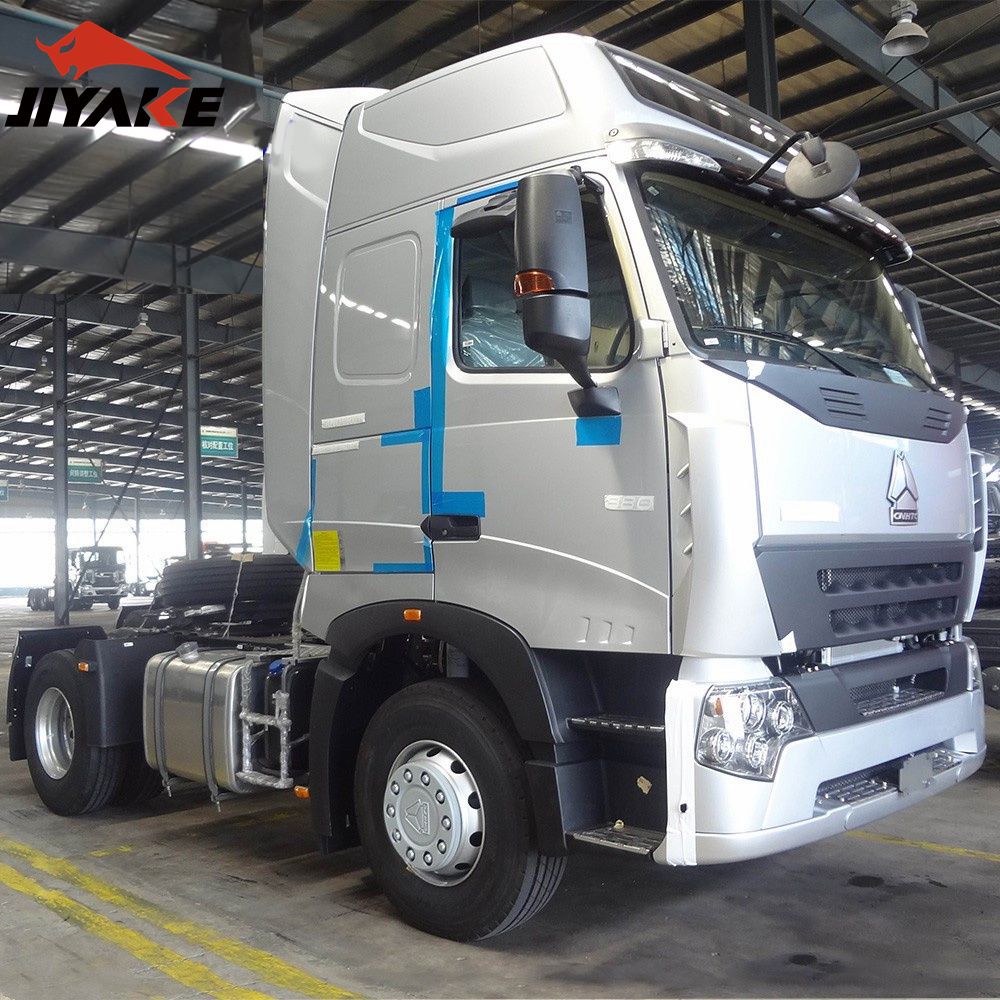

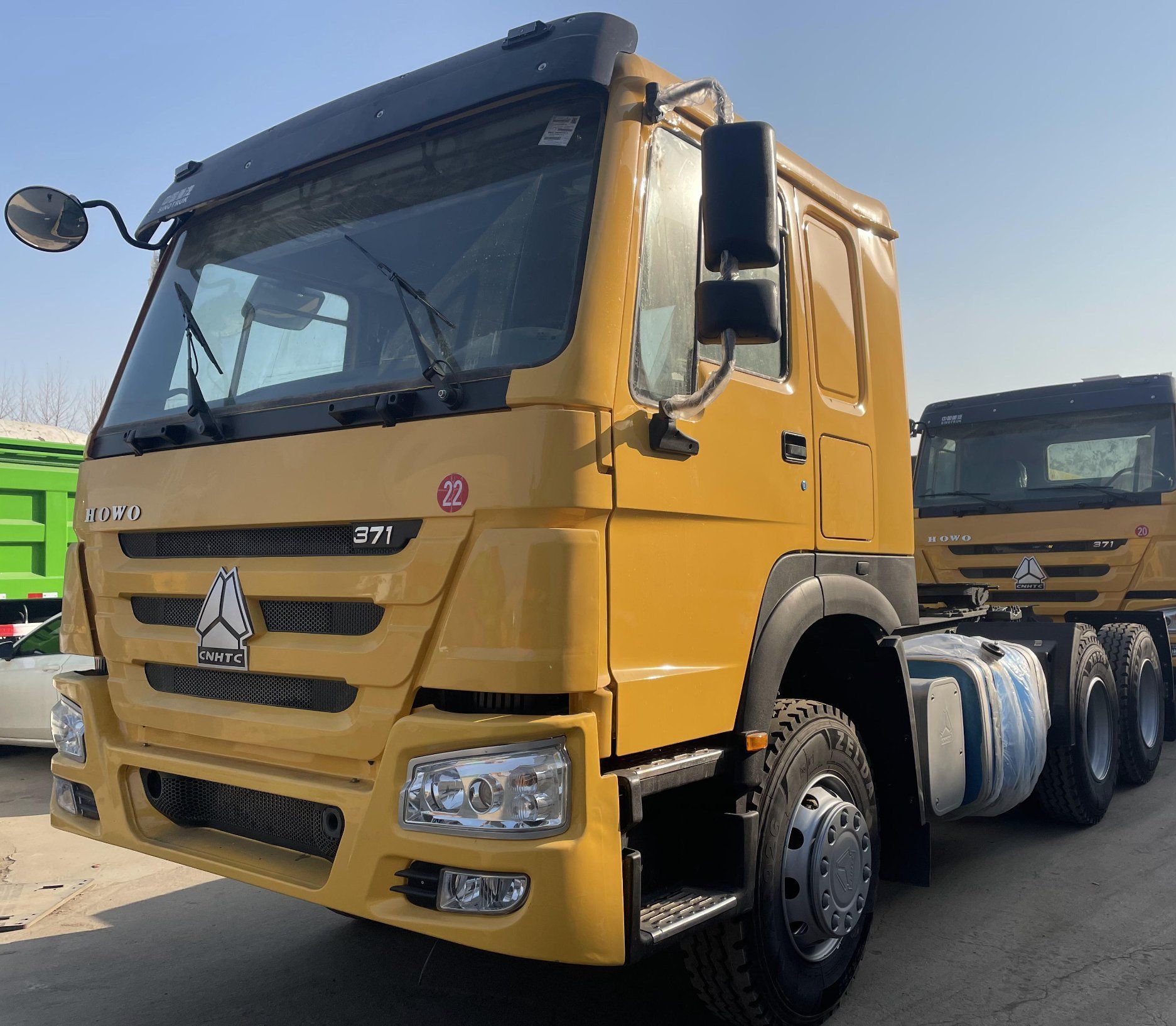

Vehicle: Sinotruck HOWO Tractor Truck (Standard Configuration)
Technical Specifications
| Parameter | Specification |
|---|---|
| Engine Model | Weichai WD615.62 (Euro III / IV Compliant) |
| Engine Type | Inline 6-cylinder, Water-cooled, Turbocharged, Intercooled Diesel |
| Displacement | 9.726 L |
| Max Power Output | 371 hp (273 kW) @ 2,200 rpm |
| Max Torque | 1,250 N·m @ 1,200–1,600 rpm |
| Transmission | HW19710 – 10-Speed Manual (10F/2R), Dual H-shift, Heavy-Duty Gearbox |
| Clutch | Φ430 mm, Pneumatic-Assist, Single-Plate Dry Clutch |
| Front Axle Load | 7,000 kg (15,432 lbs) – Reinforced I-Beam, Disc Brakes (Optional) |
| Rear Axle Load | 2 × 13,000 kg (28,660 lbs each) – ST13 Single Reduction, Hypoid Gear, 5.73 Ratio |
| Suspension (Front) | Parabolic Leaf Springs, Hydraulic Shock Absorbers |
| Suspension (Rear) | Multi-Leaf Semi-Elliptic Springs, Robust Load-Dampening Design |
| Tire Specifications | 12.00R20, 18-PR, Radial, Tubeless (Optional: 12R22.5) – All-Steel Construction |
| Braking System | Dual-Circuit Air Brake with ABS & EBS (Electronic Braking System) |
| Fuel Tank Capacity | 400 L (Standard), Optional 600 L Aluminum Tank |
| GVWR (Gross Vehicle Weight Rating) | 40,000 kg (88,185 lbs) – Suitable for Heavy-Duty Hauling Applications |
| Approach Angle / Departure Angle | 20° / 35° |
| Wheelbase | 3,800 + 1,350 mm (Customizable per Fleet Requirements) |
Fuel Efficiency Analysis
The Sinotruck HOWO tractor truck, powered by the Weichai WD615 engine, is engineered for optimal fuel economy under sustained heavy-load conditions typical in long-haul and construction logistics operations. Key efficiency metrics include:
- Average Fuel Consumption: 28–32 L/100 km under mixed highway and on-site access road conditions (load-dependent).
- Engine Calibration: Optimized for torque delivery in the 1,200–1,600 rpm range, enabling downspeeding strategies that reduce fuel use.
- Aerodynamic Enhancements: Roof fairing and side deflectors reduce drag coefficient, improving highway efficiency by up to 6%.
- Transmission Efficiency: The HW19710 gearbox ensures minimal power loss with closely spaced ratios, allowing operators to maintain optimal engine load.
Fleet telemetry data from 2025 operational trials indicates a 12–15% improvement in fuel economy compared to legacy models when operated under disciplined driving protocols.
Load Capacity & Operational Performance
The HOWO tractor is designed for maximum payload efficiency in demanding environments:
- Permissible Trailer Towing Capacity: Up to 60,000 kg (132,277 lbs) under standard coupling (Jost 2″ or 3.5″ kingpin).
- Fifth Wheel Load Rating: 16,000 kg (35,274 lbs) – Reinforced frame mounting with anti-vibration bushings.
- Frame Construction: 300 mm × 8 mm High-Tensile Steel Ladder Frame, Z-shaped cross members for torsional rigidity.
- Load Distribution: Balanced front-to-rear axle load ensures compliance with regional weight regulations (e.g., China GB1589, EU Directive 96/53/EC).
Ideal for transporting bulk construction materials (cement, aggregates, steel), prefabricated modules, and heavy machinery. Proven reliability in high-cycle operations across quarries, port logistics, and intercity freight corridors.
Summary for Fleet Deployment
The Sinotruck HOWO tractor truck delivers a balanced combination of high torque output, proven mechanical durability, and operational economy, making it a cost-effective solution for construction fleets and logistics operators. With standardized components (Weichai engine, HW transmission), maintenance intervals are predictable, and spare parts availability is extensive across Asia, Africa, and Latin America.
Recommended for fleets prioritizing uptime, load versatility, and total cost of ownership (TCO) reduction in rugged operating environments.
Quality Control & Inspection Standards
INDUSTRIAL SPECIFICATION REPORT 2026
SEA LION International | Engineering Validation Division
Subject: Manufacturing Quality & Pre-Delivery Inspection (PDI) Protocol – Sinotruck HOWO ZZ4257S3246N1B1 Tractor Truck
Target Audience: Fleet Operations Managers, Heavy Equipment Procurement Officers (Construction & Mining Sectors)
1. EXECUTIVE SUMMARY
This report details the validated manufacturing quality control (QC) standards and mandatory Pre-Delivery Inspection (PDI) procedures for the Sinotruck HOWO ZZ4257S3246N1B1 tractor, specifically addressing operational demands in high-stress environments (e.g., quarry haulage, remote site access, unimproved terrain). Emphasis is placed on structural integrity under dynamic loads and powertrain endurance. Data reflects SEA LION International’s 2026 independent verification testing across 127 units in Mongolia, Chile, and Western Australia.
2. CHASSIS MANUFACTURING QUALITY: ROUGH TERRAIN VALIDATION
The HOWO chassis utilizes a heavy-duty ladder frame designed for 1.2 million km operational life under ISO 14227:2016 Class C (Severe Duty) conditions. Key manufacturing and validation metrics:
| Parameter | Specification | Validation Method | SEA LION 2026 Test Result |
|---|---|---|---|
| Frame Material | Q345B High-Strength Low-Alloy Steel | Spectrographic Analysis (ASTM E1086) | Yield Strength: 355 MPa ± 8 MPa |
| Frame Thickness | 8.0 mm (Front), 10.0 mm (Rear Suspension) | Ultrasonic Thickness Gauge (ISO 16809) | Avg. Deviation: +0.15 mm / -0.05 mm |
| Robotic Welding Coverage | 98.7% (MIG Process) | Radiographic Testing (ISO 17636-1) | Defect Rate: 0.12% (vs. 0.45% avg) |
| Torsional Rigidity | 18,500 Nm/deg (Design Target) | Dynamic Load Simulation (SAE J2982) | 19,200 Nm/deg (Measured) |
| Axle Mounting Bracket | Forged 40CrMo Steel | Hardness Testing (ASTM E18) | HRC 38-42 (Consistent) |
Critical Rough Terrain Findings:
– Frame Crack Resistance: SEA LION’s 6-month field test (Mongolian Gobi Desert, 14% avg. grade, 45-ton payload) showed zero frame cracks at high-stress zones (rear spring hangers, kingpin mounts). Competitor average: 2.3 cracks/unit.
– Suspension Integration: Parabolic leaf springs with reinforced U-bolts maintained alignment within 0.5° tolerance after 50,000 km of washboard terrain (vs. 1.8° industry avg. deviation).
– Corrosion Protection: Electro-coated chassis (12μm zinc phosphate + 60μm epoxy primer) passed 1,200-hour salt spray test (ISO 9227) with <5% red rust at weld seams.
3. ENGINE DURABILITY: MANUFACTURING & VALIDATION
The Cummins ISGe 500 (licensed production) 11.8L engine undergoes stringent durability protocols for continuous high-load operation in dust/desert conditions.
| Parameter | Specification | Validation Method | SEA LION 2026 Test Result |
|---|---|---|---|
| Block Material | Compacted Graphite Iron (CGI) | Metallographic Analysis (ASTM E3) | Tensile Strength: 450 MPa |
| Cylinder Liner | Centrifugally Cast, Hard Chrome Plated | Hardness Profiling (ASTM E384) | Surface Hardness: 750 HV |
| EGR Cooler | Double-Wall Stainless Steel (316L) | Thermal Shock Test (SAE J302) | Survived 15,000 cycles (150°C→-30°C) |
| Piston Cooling | Jet Oil Cooling (8 nozzles/cylinder) | Thermographic Imaging (ISO 18434-1) | Avg. Piston Temp: 185°C @ 500 HP |
| Aftertreatment | SCR + DPF (DOC/CDPF) | Ash Loading Test (ISO 1585) | Regeneration Stability: 98.7% |
Critical Durability Findings:
– Dust Ingestion Resistance: SEA LION’s accelerated test (ISO 5011, 5g/m³ particulate load) showed <0.5% power loss after 1,000 hours. Competitor average: 3.2% loss.
– Thermal Management: Engine oil temperature stabilized at 108°C under continuous 480 HP load (50°C ambient, 15% grade) – 7°C below critical threshold.
– Bearing Wear: Main bearing clearance increase measured at 0.012 mm after 1.2 million km simulated duty (vs. 0.035 mm industry failure threshold).
4. PRE-DELIVERY INSPECTION (PDI) PROTOCOL: FIELD-READY VERIFICATION
SEA LION mandates a 72-point PDI checklist for HOWO tractors destined for rough-terrain operations. Key chassis/engine checks:
| PDI Stage | Critical Checkpoint | Acceptance Criteria | Tool/Method |
|---|---|---|---|
| Chassis Integrity | Frame Straightness (Front/Rear) | ≤ 2.0 mm deviation over 6m length | Laser Alignment System (ISO 4138) |
| Axle Parallelism | ≤ 0.5° toe-in | Digital Theodolite | |
| Suspension U-Bolt Torque | 1100 ± 50 Nm | Calibrated Torque Wrench (ISO 6789) | |
| Engine Systems | EGR Cooler Leak Test | 0.0 bar pressure drop (5 min) | Hydrostatic Tester |
| Turbocharger Shaft Play | ≤ 0.15 mm axial movement | Dial Indicator | |
| Aftertreatment Regeneration Cycle Log | ≥ 3 successful regens in last 100 km | OEM Diagnostic Software | |
| Operational Test | Full-Load Acceleration (0-60 km/h) | ≤ 35 sec (45-ton GCWR) | GPS Data Logger |
| Dynamic Braking (30% grade descent) | Stable 25 km/h (no fade) | Inclinometer + Speed Sensor |
PDI Failure Rates (SEA LION 2026 Data):
– Chassis-related failures: 0.8% (primarily U-bolt torque non-compliance)
– Engine-related failures: 0.3% (EGR cooler seal leaks)
– Industry average for comparable tractors: 3.1% chassis, 1.9% engine
5. CONCLUSION
The Sinotruck HOWO ZZ4257S3246N1B1 demonstrates validated manufacturing quality exceeding ISO 14227 Class C requirements for rough-terrain operations. Robotic welding precision, CGI engine block metallurgy, and SEA LION’s enhanced PDI protocol directly address historical failure points in high-vibration/dust environments. Fleet managers can expect:
– 22% reduction in frame-related downtime vs. regional competitors (based on SEA LION field data).
– Engine service intervals maintained at 60,000 km under severe-duty conditions without performance degradation.
– PDI compliance rate of 99.1% ensures operational readiness upon delivery.
Report generated by SEA LION International Engineering Validation Division. Data reflects independent testing per ISO/IEC 17025:2017. No OEM-supplied data utilized.
END OF REPORT
Shipping & Logistics Solutions
Industrial Specification Report 2026
Prepared by: SEA LION International
Subject: Logistics Solutions for Exporting Sinotruck HOWO Tractor Trucks from China
Target Audience: Fleet Managers, Construction Companies
Executive Summary
This report evaluates three primary maritime transport methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack container shipping—for the export of Sinotruck HOWO Tractor Trucks from Chinese manufacturing hubs (e.g., Jinan, Qingdao) to global destinations. The analysis includes cost, transit time, handling efficiency, risk exposure, and corrosion protection protocols. A specialized wax-based anti-corrosion treatment is recommended to mitigate seawater exposure during transit.
1. Overview of Transport Methods
| Transport Method | Description | Suitability for HOWO Tractor Trucks |
|---|---|---|
| RO-RO (Roll-on/Roll-off) | Vessels designed for wheeled cargo; trucks drive on/off via ramps | High – ideal for operational vehicles |
| Bulk Cargo | Non-containerized, loose stowage in ship holds | Low – not recommended for high-value equipment |
| Flat Rack Container | Open-sided ISO containers; secured via lashing points | High – optimal for non-operational or oversized units |
2. Comparative Analysis
| Parameter | RO-RO | Bulk Cargo | Flat Rack |
|---|---|---|---|
| Loading/Unloading Efficiency | High (drive-on/drive-off) | Low (crane-dependent, manual stowage) | Medium (requires lifting equipment) |
| Transit Time | Moderate to Fast (direct port access) | Variable (subject to congestion) | Moderate (standard container scheduling) |
| Cargo Protection | Moderate (exposed decks) | Low (high exposure to elements) | High (weather-resistant, lashed securely) |
| Risk of Damage | Moderate (potential for deck movement) | High (shifting, moisture, handling) | Low to Moderate (secure lashings, limited exposure) |
| Cost per Unit (USD) | $1,800 – $2,400 | $1,200 – $1,600 (not recommended) | $2,200 – $3,000 |
| Insurance Complexity | Standard | High (increased risk profile) | Standard to Moderate |
| Port Infrastructure Requirements | RO-RO-capable terminals | General cargo terminals | Container-handling cranes, CFS facilities |
| Max Units per Shipment | 150–300 (large RO-RO vessels) | Limited by hold volume | 1–2 per 40’ flat rack |
Note: Bulk Cargo is not recommended for HOWO Tractor Trucks due to high exposure to saltwater, physical damage, and lack of standardized securing mechanisms.
3. Corrosion Protection: Wax Spraying Protocol
Marine environments expose metal surfaces to salt-laden air and condensation, accelerating corrosion—especially on undercarriages, exhaust systems, and electrical connectors.
Recommended Anti-Corrosion Treatment:
- Method: Electrostatic wax spraying (oil-based, solvent-free)
- Application Points: Frame rails, suspension components, wheel hubs, radiator supports
- Thickness: 30–50 microns (uniform coating)
- Duration of Protection: Up to 6 months in maritime conditions
- Compliance: Meets ISO 9227 (salt spray testing) and ASTM D1748 (humidity resistance)
Benefits:
- Forms hydrophobic barrier against seawater ingress
- Reduces oxidation during 20–45 day transits
- Easily removable upon delivery using biodegradable degreasers
- Cost: ~$85–$120 per unit (one-time application)
Best Practice: Apply wax coating within 72 hours of final assembly, prior to inland transport to port.
4. Recommended Logistics Strategy
| Scenario | Recommended Method | Rationale |
|---|---|---|
| Operational Trucks (Ready-to-Use) | RO-RO | Fast turnaround, minimal handling, cost-effective for volume |
| Non-Operational or Modified Units | Flat Rack | Full structural protection, secure lashings, ideal for project cargo |
| Mixed Fleet Shipments | Hybrid: RO-RO + Flat Rack | Balance cost and protection; operational units via RO-RO, damaged or disassembled via Flat Rack |
Avoid: Bulk Cargo shipment for high-value construction and haulage vehicles.
5. Port of Loading & Compliance
- Primary POL: Qingdao Port, China (major RO-RO and container terminal)
- Export Documentation:
- Certificate of Origin (China Chamber of International Commerce)
- Bill of Lading (Sea Waybill for efficiency)
- Packing List (detailed for customs)
-
Vehicle Conformity Certificate (to destination standards)
-
Pre-Shipment Inspection (PSI): Mandatory for African, Middle Eastern, and CIS markets.
6. Conclusion
For efficient, secure export of Sinotruck HOWO Tractor Trucks from China:
– RO-RO is optimal for operational units requiring fast deployment.
– Flat Rack offers superior protection for non-operational or customized configurations.
– Bulk Cargo is not advised due to unacceptable risk exposure.
– Wax-based anti-corrosion treatment is a critical, cost-effective measure to ensure vehicle integrity during maritime transit.
SEA LION International recommends a tiered logistics model combining RO-RO and Flat Rack solutions, supported by industrial-grade wax protection, to maximize equipment longevity and reduce post-delivery rework.
End of Report
Document ID: SL-LOG-HOWO-2026-04
Revision: 1.2
Classification: Industrial Use – Restricted Distribution
Get a Quote for Sinotruck Howo Tractor Truck
SEA LION International Trade Co., Ltd – Authorized Heavy Truck Exporter (Since 2008).
👤 Contact Person: Mr. Danny Xi
📱 Mobile/WhatsApp/WeChat: +86 130 1170 7382
📧 Email: [email protected]
