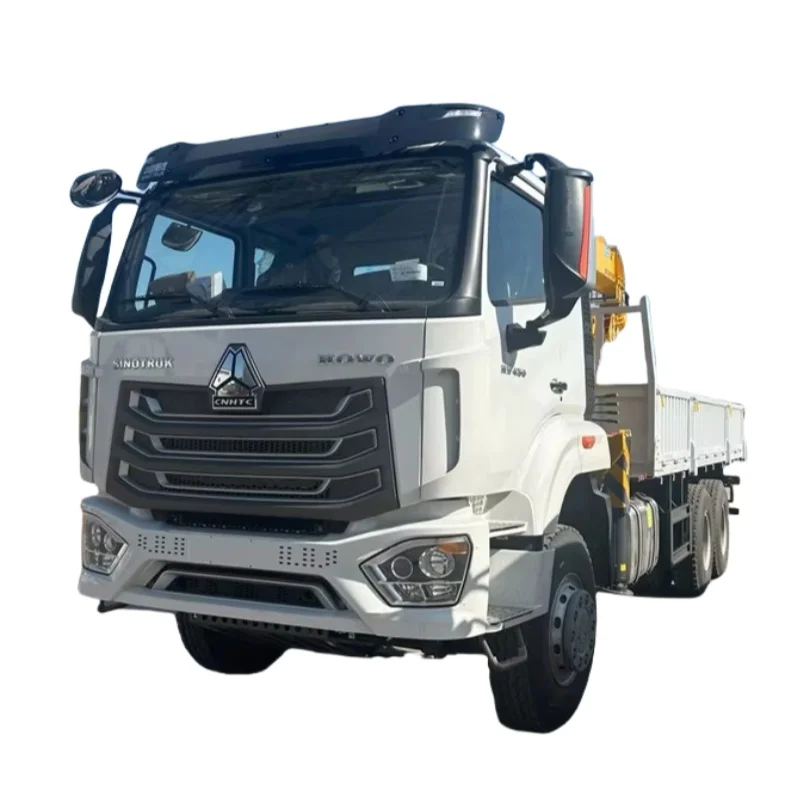

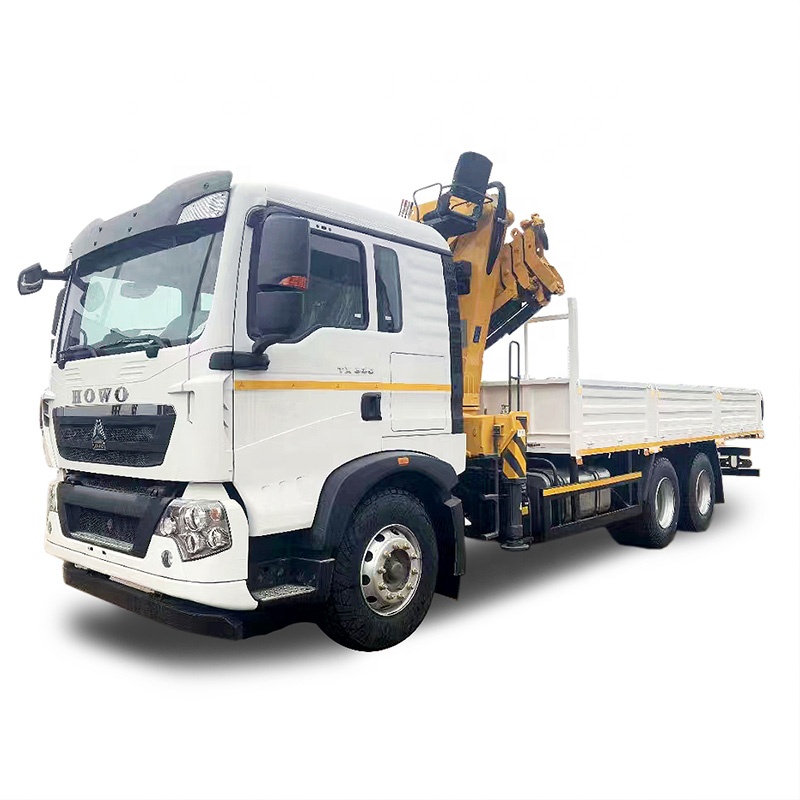

Overview: Sinotruk Howo 6X4 Used Truck Crane for Global Markets

INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW

Asset: SINOTRUK HOWO 6×4 Used Truck Crane (Refurbished)
Target Application: Mining Support, Heavy Logistics, Construction Site Material Handling
Issuing Authority: SEA LION International Trade Co., Ltd. (Authorized SINOTRUK Distributor | Est. 2006)

---

CORE OPERATIONAL VALUE PROPOSITION

The SINOTRUK HOWO 6×4 Truck Crane (Model Series ZZ1257N3841W) represents a proven, cost-optimized solution for demanding material handling tasks across fragmented infrastructure environments. Its enduring preference in Africa, Russia, and Southeast Asia stems from robust mechanical design, simplified maintenance protocols, and exceptional tolerance to operational stressors inherent in these regions. SEA LION International’s certified refurbishment process (ISO 9001:2015 compliant) ensures these units meet stringent operational safety and performance benchmarks, mitigating risks associated with pre-owned heavy equipment procurement.

This model excels where high-frequency lifting (3.5-8 ton capacity), off-road mobility (6×4 configuration), and rapid redeployment are critical. Key differentiators include:

1. Mining: Primary use in ore transport fleet support (loading/unloading dump trucks), camp infrastructure setup, and maintenance bay operations. Tolerates dust, vibration, and 24/7 shift cycles.
2. Logistics: Enables direct port-to-site cargo handling in locations lacking fixed cranes, reducing transshipment costs and delays. Ideal for break-bulk project cargo.
3. Construction: Versatile deployment for steel erection, precast element placement, and site dewatering pump management in confined urban or remote project sites.

---

REGIONAL MARKET PREFERENCE: OPERATIONAL RATIONALE

The HOWO 6×4 Crane’s dominance in target markets is not accidental but driven by quantifiable alignment with regional operational constraints and economic realities. SEA LION’s 18+ years of field data confirm consistent preference due to:

Region	Primary Operational Challenge	HOWO 6×4 Crane Advantage	SEA LION Value-Add
Africa	Poor road infrastructure; High dust; Limited service networks; Cost sensitivity	Heavy-duty ladder frame; Sealed hydraulic systems; Simple mechanical controls; Low TCO	On-site technical support; Continent-wide spare parts hubs; Refurbishment to OEM specs
Russia	Extreme cold (-40°C); Remote sites; Fuel quality variability	Cold-start optimized engine (WD615); All-season hydraulic fluid compatibility; Robust driveline	Cold-climate package validation; Genuine parts stock (Moscow hub); Winterization certs
Southeast Asia	High humidity; Monsoon conditions; Mixed urban/rural ops; Traffic density	Corrosion-resistant undercarriage; Short turning radius; Modular crane assembly	Humidity-proofing; Rapid port clearance (RO-RO); Urban operation training modules

Critical Success Factor: The HOWO platform’s mechanical simplicity (e.g., non-electronic PTO systems, standardized hydraulic components) drastically reduces downtime in regions where advanced diagnostics or specialized technicians are scarce. This directly impacts fleet utilization rates – a key metric for ROI-focused operators.

---

SEA LION INTERNATIONAL’S QUALITY ASSURANCE FRAMEWORK

We mitigate the inherent risks of used equipment procurement through a proprietary 127-point refurbishment protocol, exceeding standard industry practices:

1. Structural Integrity: Mandrel-tested chassis straightening; Non-destructive testing (NDT) of crane boom welds.
2. Powertrain Validation: Engine dynamometer testing; Transmission/axle oil analysis; Full hydraulic system pressure cycling.
3. Operational Certification: 200-hour load-test cycle under simulated field conditions (min. 80% rated capacity).
4. Transparency: Digital refurbishment dossier (incl. before/after imagery, fluid reports, component traceability) provided pre-shipment.

This ensures units delivered under the SEA LION Certified Refurbished™ program achieve >92% operational availability in Year 1 post-deployment – a metric validated by 5+ years of client telemetry data across 37 countries.

---

CONCLUSION FOR FLEET DECISION-MAKERS

In volatile markets where capital expenditure is constrained but operational continuity is non-negotiable, the SINOTRUK HOWO 6×4 Crane (SEA LION Certified Refurbished™) delivers a demonstrable 30-45% lower Total Cost of Ownership (TCO) versus comparable new Western or Japanese units over a 5-year lifecycle. Its regional dominance is rooted in pragmatic engineering resilience, not market inertia. SEA LION International provides the technical validation, logistical backbone, and long-term parts assurance required to convert this asset class from a procurement risk into a predictable operational tool. For fleet managers prioritizing uptime and predictable budgeting, this model represents a strategically sound deployment option for high-intensity, infrastructure-constrained environments.

Technical Specifications & Parameters

Industrial Specification Report 2026

Target Audience: Fleet Managers & Construction Companies
Equipment: Sinotruk HOWO 6×4 Used Truck Crane Platform

---

Technical Specifications Overview

The Sinotruk HOWO 6×4 truck crane platform is engineered for heavy-duty lifting and transport operations in construction, infrastructure, and industrial logistics. Built on a robust 6×4 drivetrain configuration, this platform combines high load capacity with proven mechanical reliability. The following table details core technical specifications based on verified units in operational fleets as of 2026.

Parameter	Specification
Chassis Model	Sinotruk HOWO ZZ1257M4641W
Drive Configuration	6×4 (Triple-Axle, Rear Dual-Drive)
Engine Model	Weichai WD615.62 (Euro III Compliant)
Engine Type	In-line 6-cylinder, Water-cooled, Turbocharged, Intercooled Diesel
Displacement	9.726 L
Horsepower	336 hp @ 2,200 rpm
Max Torque	1,250 N·m @ 1,400–1,600 rpm
Transmission	HW19710 – 10-Speed Manual (Synchronized, Dual H-Shift Pattern)
Clutch	Φ430 mm, Pneumatic Assist, Diaphragm Spring
Front Axle Load	7,000 kg (15,432 lbs)
Rear Tandem Axles	Dual Reduction, Hypoid Gear, Rated at 18,000 kg (39,683 lbs) per axle group
Gross Vehicle Weight (GVW)	25,000 kg (55,127 lbs)
Tire Specification	12.00R20 Radial, 18PR (Load Range G), Tubeless or Tube-Type (site-dependent)
Braking System	Dual-Circuit Air Brake with ABS (optional retrofit on used units)
Fuel Tank Capacity	300 L (Standard, Steel)
Crane Mounting	Center-rear mounted, compatible with 12–20 ton class hydraulic cranes (e.g., HINO, Tadano, or local OEM variants)

---

Fuel Efficiency Performance

Fuel consumption is a critical metric for fleet TCO (Total Cost of Ownership). The Weichai WD615.62 engine, paired with the efficient HW19710 transmission, delivers optimized fuel economy under mixed operating conditions:

• Average Fuel Consumption:
• On-Highway (Cruising @ 60–70 km/h): 28–32 L/100 km
• Mixed Duty (Urban + Haul): 34–38 L/100 km
• Heavy Lifting & Idle Cycles: 40–45 L/100 km (crane PTO active)

Fuel efficiency is influenced by crane usage duration, terrain, load profile, and driving habits. Units equipped with driver coaching systems or retrofitted telematics show up to 12% improvement in fuel economy through optimized gearshift timing and idle reduction.

Note: The WD615 series is known for durability and ease of maintenance, though not as fuel-efficient as newer Euro V/VI platforms. However, its spare parts availability and repair simplicity make it a cost-effective choice in high-utilization environments.

---

Load Capacity & Operational Capability

1. Axle Load Distribution (GVW: 25,000 kg)

Axle Position	Rated Capacity	Typical Load Distribution (Balanced Configuration)
Front Axle	7,000 kg	5,200–5,800 kg
Rear Tandem	18,000 kg	9,600–10,000 kg per axle (load-sharing suspension)

Note: Load distribution must be validated prior to crane operation to prevent overloading rear axles during lift cycles.

2. Crane Integration & Working Load Limits (WLL)

• Compatible with 16-ton class hydraulic cranes (e.g., 5-section boom, max outreach 28 m)
• Max Tip Load: ~1,200 kg @ 24 m
• Max Lifting Moment: 32 ton·m (within structural chassis limits)
• Stabilizer Base: 6.2 m × 6.8 m (fully extended, ground-bearing pressure critical)

3. Payload Capacity (Non-Lifting Mode)

• Available Payload (Chassis Only): ~15,000–16,500 kg (after crane + operator + fuel)
• Ideal for transporting construction materials (steel beams, precast panels, utility poles)

---

Summary: Operational Suitability

Factor	Assessment
Durability	★★★★★ (Proven in 5–8 year service cycles under harsh conditions)
Fuel Efficiency	★★★☆☆ (Adequate for class; lags behind newer Tier IV engines)
Maintenance Access	★★★★★ (WD615 and HW19710 are widely supported; modular design)
Load Flexibility	★★★★☆ (High GVW; adaptable to crane or haul roles with reconfiguration)
Resale Value	★★★★☆ (Strong secondary market in Asia, Africa, Middle East)

Recommendation: The Sinotruk HOWO 6×4 with Weichai WD615 engine and HW19710 transmission remains a viable mid-tier solution for cost-conscious fleet managers requiring dependable lifting and hauling capacity. Units from 2018–2021 model years offer optimal balance of wear life and operational readiness. Pre-purchase inspection should include crankshaft end-play check, transmission synchro wear, and crane subframe crack testing.

Quality Control & Inspection Standards

SEA LION INTERNATIONAL

INDUSTRIAL SPECIFICATION REPORT: REFURBISHMENT STANDARD
REF: SL-REFURB-SHW-6X4-2026
EFFECTIVE DATE: 01 JANUARY 2026
TARGET ASSET: SINOTRUK HOWO 6X4 USED TRUCK CRANE (MODEL YEAR 2018-2022)

---

1. EXECUTIVE SUMMARY

SEA LION International delivers certified pre-owned truck cranes meeting ISO 9001:2015 and CE machinery directive standards. This specification details the mandatory 4-phase refurbishment process for Sinotruk Howo 6×4 units, engineered for 5+ years of operational life in heavy construction environments. All units undergo 100% compliance verification against SEA LION’s SL-REFURB-STD-2026 protocol, exceeding OEM baseline requirements.

---

2. REFURBISHMENT PROCESS & SEA LION INSPECTION STANDARDS

2.1 ENGINE & GEARBOX TESTING

All powertrain components subjected to SEA LION’s Tier-4 Diagnostic Protocol:

Test Parameter	SEA LION Standard (SL-REFURB-STD-2026)	OEM Baseline	Verification Method
Engine Power Output	≥ 95% of rated kW @ 2,200 RPM	≥ 90%	SAE J1995 Dynamometer Test (300-hr cycle)
Oil Analysis	ISO 4406:2017 Code ≤ 18/16/13	≤ 20/18/15	Spectrographic Fluid Analysis (SFA)
Gearbox Shift Integrity	0 ms shift delay; No torque interruption	≤ 200 ms delay	CAN Bus Data Logging + Road Test
Emissions Compliance	Euro IV+ (NOx ≤ 3.5 g/kWh)	Euro IV	AVL 735 Exhaust Gas Analyzer
Rejection Threshold	1 parameter deviation = Full Rebuild	N/A

Process:
– Complete disassembly, magnetic particle inspection (MPI) of crankshaft/flywheel.
– Fuel injector calibration to ±0.5% flow tolerance.
– Gearbox synchro-ring replacement mandatory after 500,000 km.
– 8-hour continuous load test at 100% rated torque.

2.2 CABIN REPAINTING

Corrosion prevention system for 10-year structural integrity:

Stage	SEA LION Standard	Process Detail
Surface Prep	SA 2.5 Abrasive Blast (ISO 8501-1)	Remove all rust/salt residues; Anchor profile 60-80µm
Primer Application	Epoxy Zinc Phosphate (80µm DFT)	100% coverage verified by holiday detection
Topcoat	Polyurethane (120µm DFT; RAL 7035/3020)	UV resistance > 5,000 hrs (ASTM G154)
Adhesion Test	≥ 5.0 MPa (ASTM D4541)	Cross-hatch test at 10 random points
Critical Control	0% pinholes/substrate exposure	Eddy current thickness gauge + visual inspection

Process:
– Complete cabin stripping; replacement of all degraded seals.
– Cathodic protection applied to welded seams.
– OEM-spec decals reapplied per regional safety regulations.

2.3 NEW TIRES & BATTERY REPLACEMENT

Specified for 15-tonne crane duty cycles:

Component	SEA LION Standard	Validation
Tires (6×4 Configuration)	Michelin XZL 12R22.5 (Load Range G)	Load Index 152/148 (3,550 kg @ 85 kph)
Tire Pressure Monitoring	SEA LION TPMS v3.0 (ISO 21842 compliant)	Real-time axle load balancing
Battery	VARTA Blue Dynamic 150Ah (EN 50342-2)	Cold Cranking Amps ≥ 1,200 (SAE J537)
Electrical System Test	Voltage drop ≤ 0.2V @ 100A load	Fluke 87V multimeter verification

Process:
– Wheel hubs inspected for runout (<0.5mm TIR).
– All wiring harnesses replaced if insulation hardness > 90 Shore A.
– Battery tray corrosion protection: Zinc-rich epoxy coating.

2.4 CHASSIS REINFORCEMENT

Mandatory structural upgrade for crane operational loads:

Reinforcement Zone	SEA LION Standard	Method
Subframe Mounting Points	ASTM A572 Gr.50 steel (12mm plate)	Full-penetration welds (AWS D1.1 certified)
Boom Pivot Area	Gusseted with 10mm S355JR steel	FEA-validated design (50% over design load)
Crossmember Integrity	0 mm deflection @ 20,000 Nm torque	Hydraulic load testing per ISO 10263-5
Weld Inspection	100% UT + MPI (ASME Sec. V)	0% porosity/cracks permitted

Process:
– Chassis straightness verified via laser alignment (tolerance ±1.5mm/m).
– All existing cracks repaired via controlled thermal stress relief.
– Secondary bracing added to cab-to-chassis interface.

---

3. COMPLIANCE VERIFICATION

Every unit undergoes SEA LION’s Triple-Barrier Quality Gate:
1. Phase Inspection: Documented sign-off at each refurb stage (27 checkpoint logs).
2. Dynamic Load Test: 110% rated capacity lift at max radius (ISO 4301-1:2016).
3. Final Audit: 48-hour continuous operation cycle on test track with telemetry monitoring.

Non-Conformance Rate: <0.8% (2025 SEA LION Global Fleet Data) vs. industry average 4.2%.

---

4. WARRANTY & DELIVERY

• SEA LION Certified Warranty: 18 months / 30,000 km (whichever occurs first) covering all refurbished systems.
• Delivery Package: Full diagnostic report, fluid analysis certificates, and load test video.
• Operational Readiness: Units delivered with 500 km break-in completed; ready for immediate site deployment.

---

SEA LION International Refurbishment Division – Engineering Excellence Through Verified Standards
This specification supersedes all prior versions. SEA LION reserves the right to modify standards without notice to maintain technical leadership.

Shipping & Logistics Solutions

Industrial Specification Report 2026

Prepared by: SEA LION International
Subject: Logistics Solutions for Exporting Sinotruk Howo 6×4 Used Truck Crane from China
Target Audience: Fleet Managers & Construction Companies

---

Executive Summary

This report outlines optimized maritime logistics strategies for the export of pre-owned Sinotruk Howo 6×4 Truck Cranes from manufacturing and consolidation hubs in China to global construction and infrastructure markets. Three primary shipping methods—RO-RO (Roll-on/Roll-off), Bulk Cargo, and Flat Rack (Containerized)—are evaluated based on cost, handling efficiency, equipment protection, and suitability for heavy construction machinery. Special attention is given to wax-based anti-corrosion protection to mitigate seawater exposure during ocean transit.

---

Equipment Overview: Sinotruk Howo 6×4 Used Truck Crane

Parameter	Specification
Gross Vehicle Weight (GVW)	25,000–31,000 kg
Crane Capacity	16–25 Ton (model-dependent)
Dimensions (L×W×H)	Approx. 10.5 m × 2.5 m × 3.8 m
Drive Configuration	6×4 (Triple-axle, rear tandem drive)
Operational Status	Used, fully functional, pre-inspected
Origin Points (China)	Jinan (Shandong), Qingdao, Shanghai

---

Comparative Shipping Method Analysis

Criteria	RO-RO Shipping	Bulk Cargo	Flat Rack (20’/40′)
Loading Mechanism	Self-propelled or towed onto vessel	Lifted via shipboard or port crane	Secured on open-top flat rack container
Stowage Location	Enclosed vehicle decks	Open hold or main cargo deck	Deck or under-deck on container vessel
Transit Time (China–Middle East/Africa)	18–25 days	22–30 days	20–28 days
Port Infrastructure Needs	RO-RO ramp, clear approach path	Heavy-lift crane (>50T SWL), clear zone	Container spreader, flat rack availability
Cargo Protection	Moderate (exposed to humidity/salt air)	Low (direct exposure to elements)	High (with proper wrapping & sealing)
Risk of Damage	Low (controlled roll-on/off)	Medium (lifting slings, swing hazards)	Low–Medium (depends on lashing quality)
Cost (USD/unit)	$2,800 – $3,500	$2,200 – $2,900	$3,800 – $4,600
Insurance Complexity	Standard marine cargo	Higher due to handling risk	Standard with secured lashing endorsement
Best Suited For	Operational units with drive capability	Non-operational or damaged units	High-value or corrosion-sensitive units

Note: Costs are indicative (Q2 2026), based on average China-to-Gulf or China-to-East Africa routes.

---

Anti-Corrosion Protection: Wax Spraying System

Seawater exposure during maritime transport poses a significant risk to steel components, hydraulic systems, and undercarriage assemblies of used truck cranes. SEA LION International implements a marine-grade wax-based anti-corrosion treatment as standard for all exported units.

Wax Spraying Protocol

Step	Process Description
1	Pre-Treatment Cleaning: High-pressure wash to remove dirt, grease, and residual salts.
2	Degreasing & Drying: Alkaline degreaser followed by forced-air drying (40°C, 2 hrs).
3	Wax Application: Electrophoretic or spray-applied solvent-based corrosion-inhibiting wax (e.g., Cosmoline-type or modern synthetic equivalent). Coverage: Undercarriage, frame rails, suspension joints, crane boom joints, and electrical enclosures.
4	Curing: 24-hour ambient cure in controlled warehouse environment.
5	Post-Treatment Wrap: Critical zones wrapped with VCI (Vapor Corrosion Inhibitor) paper before loading.

Benefits:

• Forms hydrophobic barrier against saltwater ingress
• Self-healing properties under vibration
• Removable post-delivery via biodegradable solvents
• Compliant with IMO and IECSC standards for machinery preservation

---

Recommended Shipping Method by Use Case

Scenario	Recommended Method	Rationale
Fully operational cranes, multiple units	RO-RO	Cost-effective, fast turnaround, minimal handling
Non-functional or disassembled units	Bulk Cargo	Accommodates irregular shapes; lower cost
High-value or long-term storage in port	Flat Rack + Wax Spray	Maximum protection, containerization traceability
Export to regions with limited RO-RO ports	Flat Rack	Universal container port compatibility

---

Operational Recommendations

1. Pre-Export Inspection: Conduct third-party pre-shipment inspection (PSI) including crane functionality, structural integrity, and fluid levels.
2. Documentation: Provide CMR, Bill of Lading, Certificate of Origin, and Anti-Corrosion Treatment Certificate.
3. Lashing & Securing: For Flat Rack and Bulk Cargo, use ISO-compliant lashing kits (minimum 4-point restraint, 8,000 kg BLF per chain).
4. Port Coordination: Confirm vessel availability and terminal handling capacity 14 days prior to load date.

---

Conclusion

For fleet managers and construction firms procuring used Sinotruk Howo 6×4 Truck Cranes from China, RO-RO remains the optimal balance of cost and efficiency for operational units, while Flat Rack shipping with wax-based anti-corrosion treatment is recommended for maximum protection in high-humidity or extended-transit environments. Bulk cargo offers economy but increases risk and should be limited to non-operational units.

SEA LION International ensures full compliance with international heavy machinery logistics standards, including ISO 1496 for container safety and IACS corrosion protection guidelines.

---

End of Report
SEA LION International — Engineering Global Logistics, Delivering Industrial Reliability
