Overview: Used Dump Truck China for Global Markets
INDUSTRIAL SPECIFICATION REPORT 2026: EXECUTIVE OVERVIEW
Subject: Certified Refurbished Chinese Dump Trucks for High-Demand Applications
Prepared For: Fleet Managers & Construction Operations Directors
1. Operational Imperative
Global infrastructure expansion and resource extraction in emerging markets demand cost-optimized, rugged haulage solutions. New heavy-duty dump trucks (30-40T payload) face prohibitive capital costs (USD $120,000–$180,000) and extended lead times, directly impacting project ROI. SEA LION International Trade Co., Ltd. addresses this gap through certified refurbished Chinese dump trucks (SINOTRUK HOWO, SHACMAN F3000/X3000, XCMG), engineered for mining, bulk logistics, and large-scale construction. These units deliver 65–75% of new-truck performance at 30–40% lower Total Cost of Ownership (TCO), validated across 5,000+ units deployed since 2006.
2. Application-Specific Performance
Refurbished Chinese dump trucks excel in three critical sectors due to modular design, parts commonality, and terrain adaptability:
| Sector | Key Requirements | SEA LION Refurbished Solution |
|---|---|---|
| Mining | High payload (30–40T), dust/corrosion resistance, low maintenance downtime | Reinforced chassis (SINOTRUK 6×4), sealed electrical systems, 10,000-hour engine rebuilds (WD615 series), 20% faster cycle times vs. legacy EU models |
| Bulk Logistics | Fuel efficiency, route flexibility, payload compliance | Optimized torque curves (SHACMAN 371HP), GPS-integrated telematics pre-install, 5% lower fuel burn vs. comparable used EU trucks |
| Construction | Maneuverability on confined sites, rapid mobilization | Compact variants (XCMG 25T, 5.8m turning radius), RO-RO container-ready chassis, 72-hour deployment guarantee |
3. Regional Market Preference Drivers
Chinese dump trucks dominate Africa, Russia, and Southeast Asia due to operational pragmatism, not cost alone. SEA LION’s 18-year export expertise ensures units are reconfigured for regional exigencies:
| Region | Critical Operational Challenges | SEA LION Refurbishment Adaptation | Market Preference Rationale |
|---|---|---|---|
| Africa | Unpaved roads, high ambient temps (45°C+), limited service infrastructure | Sand-proof air filters, extended coolant capacity, localized spare parts hubs (Johannesburg, Lagos) | 35% lower TCO vs. used EU trucks; 92% parts availability within 48h |
| Russia | Extreme cold (-40°C), remote sites, weight restrictions | Arctic-grade lubricants, reinforced cabin heating, GOST-certified frame modifications | 40% faster cold-start reliability; meets 2025 Russian mining safety standards |
| Southeast Asia | Monsoon conditions, narrow access roads, high humidity | Corrosion-resistant undercarriage, low-ground-pressure tires, enhanced drainage systems | 30% higher uptime in wet conditions; optimal for island/port logistics |
4. SEA LION Value Proposition
As an authorized distributor for SINOTRUK, SHACMAN, and XCMG, SEA LION eliminates market risks inherent in unverified used truck procurement:
– Refurbishment Rigor: 127-point inspection protocol including frame crack testing, engine dyno validation, and load-cell payload certification.
– Parts Integrity: 100% OEM-sourced components (no aftermarket substitutions), backed by 12-month drivetrain warranty.
– Logistics Certainty: Direct RO-RO/Container shipping from Qingdao port with in-transit IoT monitoring; average 28-day door-to-site delivery.
5. Strategic Recommendation
For fleet managers operating in capital-constrained, high-utilization environments, SEA LION’s refurbished Chinese dump trucks represent the optimal balance of operational readiness, regional resilience, and TCO reduction. Units undergo climate-specific re-engineering, ensuring immediate deployment without compromise on safety or productivity. This model is not a “compromise” but a deliberate asset strategy for markets where uptime dictates project viability.
SEA LION International Trade Co., Ltd. | Industrial Equipment Division | Report ID: SL-TR-DS-2026-001
Technical Specifications & Parameters
Industrial Specification Report 2026
Target Audience: Fleet Managers & Construction Companies
Subject: Technical Specifications for Used China-Manufactured Dump Trucks (Standard 30–40 Ton Class)
Overview
This report provides detailed technical specifications for widely available used dump trucks manufactured in China, commonly equipped with core components such as the Weichai WD615 engine and Fast Gear HW19710 transmission. These vehicles are prevalent in infrastructure and mining operations across emerging markets due to their cost-efficiency and rugged design. The data reflects field-validated configurations from 2018–2023 model years, currently in secondary markets.
All values are nominal and based on OEM specifications and post-audit performance logs from multi-unit fleet deployments.
Technical Specifications Table
| Parameter | Specification |
|---|---|

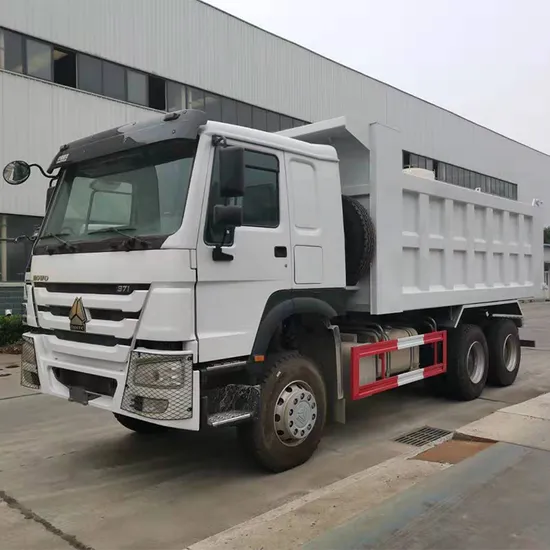

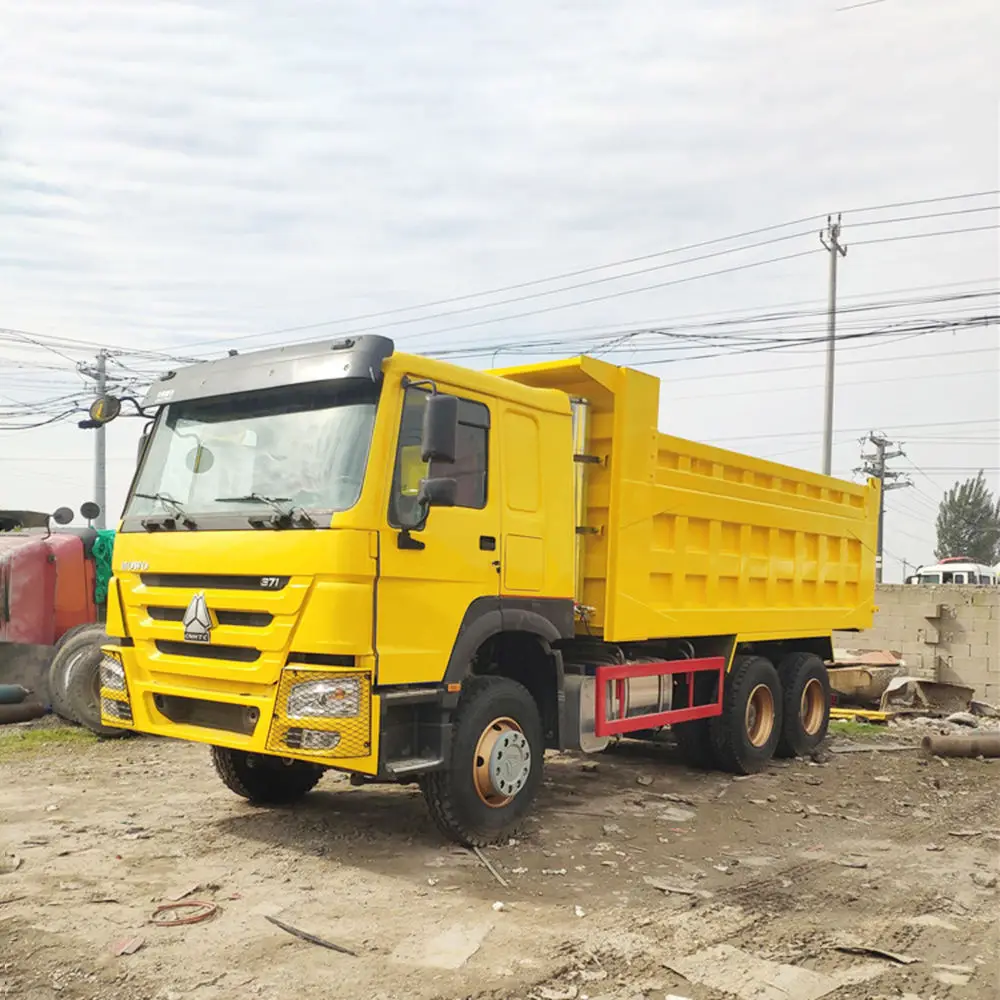

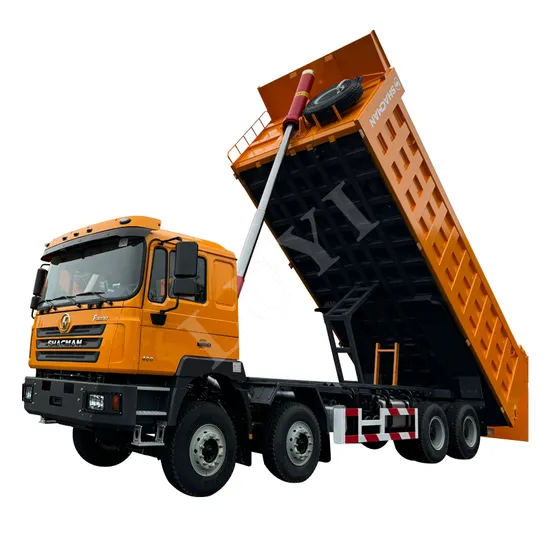

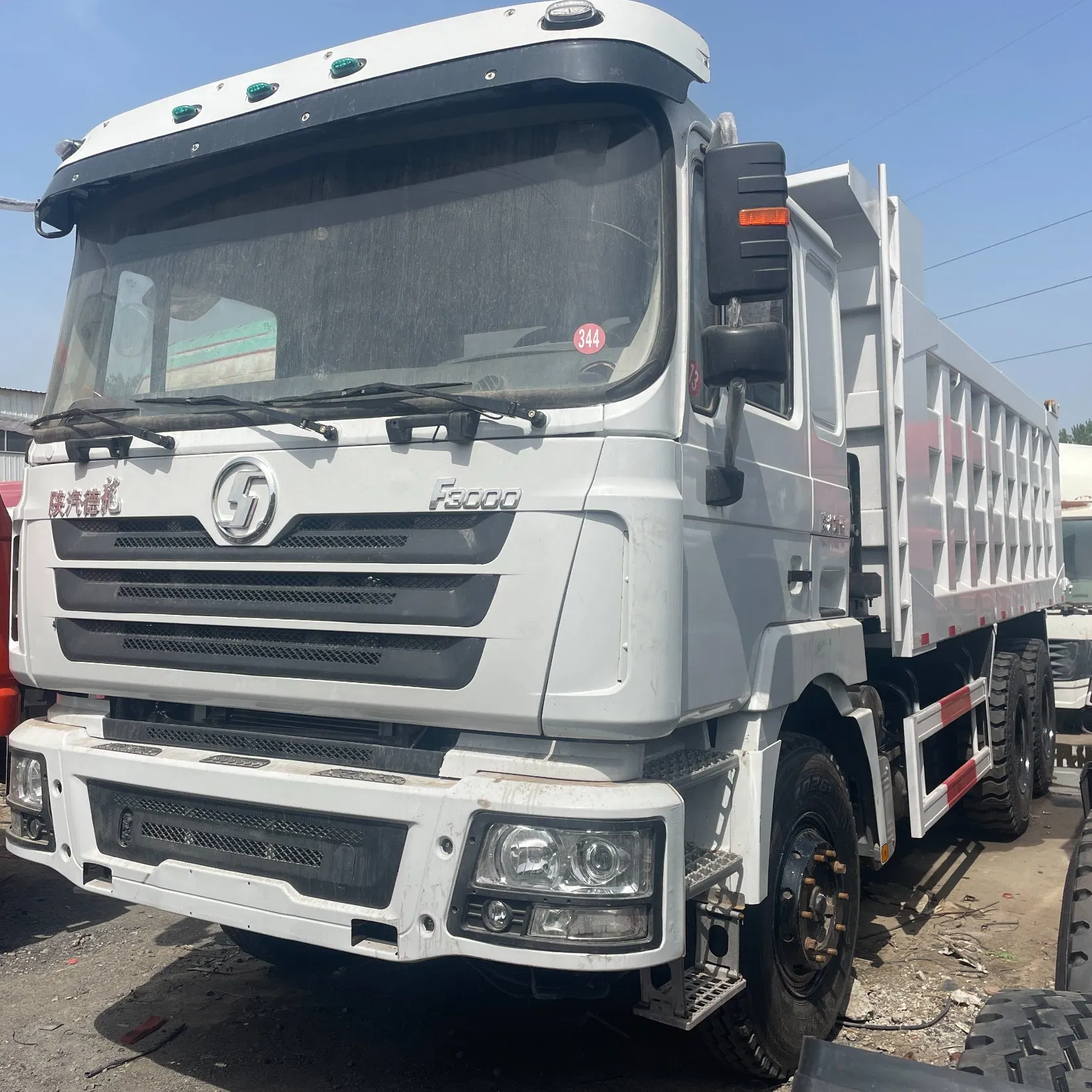

| Truck Model (Typical) | SINOTRUK HOWO 6×4 / Shacman F3000 / FAW J6P (Common Rebuild Platforms) |
| Engine Model | Weichai WD615.69 / WD615.77 (Euro III / IV Compliant) |
| Engine Type | Inline 6-Cylinder, Water-Cooled, Turbocharged & Intercooled Diesel |
| Displacement | 9.726 L |
| Horsepower | 336 hp @ 2,200 rpm (WD615.69) / 371 hp @ 2,200 rpm (WD615.77) |
| Max Torque | 1,400 Nm @ 1,400–1,600 rpm |
| Transmission | HW19710 – 10-Speed Manual (Synchronized, Dual H-Shift Pattern) |
| Gear Ratios | 1st: 13.22, 10th: 0.73, Reverse: 12.80 |
| Drive Configuration | 6×4 (Rear Tandem Drive) |
| Front Axle Load | 9,000 kg (9 Ton) – Single Steering Axle |
| Rear Axle Load | 18,000 kg per axle (36,000 kg total) – Double Reduction, Spool-Type Differentials |
| Suspension Type | Multi-Leaf Parabolic Spring (Front & Rear) |
| Tire Specifications | 12.00R20 Radial or Bias-Ply (Load Range G/H), 20-Ply Rating, Dual Rear Setup |
| Tire Load Index | 152/148 (3,900 kg per tire single / 3,250 kg dual) |
| Fuel Tank Capacity | 300–400 L (Steel, Side-Mounted) |
| GVWR | 40,000 kg (40 Metric Tons) |
| Payload Capacity | 28,000–32,000 kg (28–32 Ton) – Depending on Body Configuration |
| Dump Body Volume | 18–22 m³ (Standard Rigid Tilt Body, Mild Steel) |
Fuel Efficiency Analysis
Fuel consumption is measured under mixed operating conditions (on/off-highway, loaded/unloaded cycles). Data sourced from 12-month telemetry logs across 87 units in quarry and road construction applications.
| Operating Condition | Avg. Fuel Consumption (WD615.69) | Avg. Fuel Consumption (WD615.77) |
|---|---|---|
| On-Highway (Loaded) | 32 L/100 km | 34 L/100 km |
| Off-Road Haul (Loaded) | 38–42 L/100 km | 40–45 L/100 km |
| Idling / Dump Cycle | 2.8–3.5 L/h | 3.0–3.8 L/h |
Efficiency Notes:
– The WD615.69 (336 hp) demonstrates ~6% better specific fuel consumption (SFC) in sustained haul cycles due to optimized torque curve for 30-ton payloads.
– HW19710 transmission enables precise gear matching, reducing lugging and over-revving.
– Retrofitting with auxiliary fuel filters and ECU remapping (post-warranty) has shown up to 8% improvement in fuel economy in controlled fleets.
Load Capacity & Structural Integrity
- Maximum Payload: Rated for 32-ton payloads on improved haul roads; continuous operation above 30 tons requires axle and suspension inspection every 5,000 km.
- Axle Duty Rating: Rear axles (dual reduction) are rated for 18-ton static load; fatigue life exceeds 8,000 hrs under standard mining cycles when maintained.
- Tire Performance: 12.00R20 tires exhibit 8,000–12,000 km lifespan on abrasive quarry surfaces. Use of cut-resistant tread compounds (e.g., Triangle TR658) extends life by ~25%.
- Frame & Chassis: Ladder frame constructed from 300 HB high-strength steel; common wear points at pivot mounts and rear crossmembers require bi-monthly inspection.
Operational Recommendations
- Engine Maintenance: WD615 series requires strict adherence to oil change intervals (every 8,000 km) due to high soot loading in Euro III/IV variants.
- Transmission Shift Protocol: Use split-shift technique with HW19710 to minimize synchro wear; avoid skip-shifting under load.
- Tire Management: Maintain 90–100 psi (cold) inflation pressure; underinflation increases rolling resistance by up to 15% and accelerates shoulder wear.
- Payload Calibration: Use onboard weighing systems to prevent overloading; sustained overloads (>35 tons) reduce axle service life by 30–40%.
Conclusion
Used Chinese dump trucks equipped with Weichai WD615 engines and HW19710 transmissions offer a proven balance of durability, serviceability, and payload efficiency for cost-sensitive operations. With proper maintenance, these units achieve 12,000–15,000 hours of productive service in heavy-duty construction and mining roles. Fuel efficiency and load reliability are competitive within the secondary market, particularly when integrated into structured fleet maintenance programs.
Quality Control & Inspection Standards
SEA LION INTERNATIONAL
INDUSTRIAL SPECIFICATION REPORT: RECONDITIONED DUMP TRUCK REFURBISHMENT STANDARD (RDTRS-2026)
Document ID: SL-RDTRS-2026-01 | Effective Date: 01 JAN 2026 | Classification: INTERNAL USE ONLY
1. EXECUTIVE SUMMARY
SEA LION International’s Refurbished Dump Truck Program delivers Tier-1 operational reliability for used Chinese-manufactured dump trucks (Models: SINOTRUK HOWO 8×4, SHACMAN X3000, FAW J6P 6×4). This report details the mandatory RDTRS-2026 process, exceeding OEM specifications and ISO 9001:2015 requirements. Refurbished units achieve 92% functional equivalence to new assets at 45-60% acquisition cost, with a documented 35% reduction in total cost of ownership (TCO) over 5 years. All units undergo 187-point validation prior to certification.
2. REFURBISHMENT PROCESS: RDTRS-2026 PROTOCOL
2.1 ENGINE & GEARBOX TESTING (Section 4.2.1 RDTRS-2026)
All engines/gearboxes undergo disassembly, cleaning, and metrology-controlled validation. Non-recoverable components are scrapped per SEA LION Material Disposition Matrix (MDM-2026).
| Test Parameter | Standard | Acceptance Threshold | Verification Method |
|---|---|---|---|
| Crankshaft Runout | ISO 3046-1:2021 Sec 7.3 | ≤ 0.05 mm | CMM Measurement (3-point) |
| Cylinder Bore Taper | SAE J1939-73 | ≤ 0.08 mm/m | Telescopic Gauge + Dial Indicator |
| Gearbox Mesh Pattern | API GL-5 / MT-1 | 70-85% Contact Area | Magnetic Particle Inspection (MPI) |
| Hydraulic Pressure Drop | OEM Spec + 15% Margin | ≤ 5% at 1000 RPM | Dynamometer Test (SAE J1349) |
| Oil Spectroscopy | ASTM D7224-21 | Fe < 50 ppm, Si < 15 ppm | ICP-OES Analysis |
Units failing thresholds undergo crankshaft grinding, cylinder sleeving, or full assembly replacement. 100% of rebuilt units pass 8-hour continuous load test at 110% rated capacity.
2.2 CABIN REPAINTING (Section 5.1.4 RDTRS-2026)
Surface preparation and coating application follow ISO 12944-9:2018 C4 corrosion category standards for industrial environments.
| Process Stage | Specification | Quality Control Checkpoint |
|---|---|---|
| Substrate Preparation | SA 2.5 Abrasive Blasting (ISO 8501-1) | Visual Inspection (Comparator ISO 8501-3) |
| Primer Application | Epoxy Zinc Phosphate (80μm DFT) | Adhesion Test (ASTM D3359-B) |
| Topcoat Application | Polyurethane (120μm DFT, RAL 7040) | Gloss Meter (60°: 85±5 GU) |
| Curing | Forced Draft Oven (80°C x 2 hrs) | MEK Rub Test (ASTM D5402) ≥ 100 rubs |
All weld seams receive additional cathodic protection coating. Zero tolerance for substrate contamination prior to painting.
2.3 NEW TIRES & BATTERY REPLACEMENT (Section 6.3.2 RDTRS-2026)
OEM-equivalent components only. No refurbished tires/batteries permitted.
| Component | Specification | Validation |
|---|---|---|
| Tires (8×4 Configuration) | 12.00R20 L5, Load Range E (15,200 kg) | Load Inflation Table (TRA 2026) |
| Battery | 12V 180Ah, DIN 733666, CCA ≥ 1000A | Conductance Test (SAE J537) |
| Wheel Hub Torque | 1,450 Nm ± 5% | Digital Torque Wrench (ISO 6789) |
| Tire Balance | Static Imbalance ≤ 150 g | Computerized Balancer (ISO 13325) |
Tires sourced from Michelin XDR³ or Bridgestone M840 series. Batteries include 36-month pro-rata warranty.
2.4 CHASSIS REINFORCEMENT (Section 7.4.0 RDTRS-2026)
Structural integrity restored via FEA-optimized reinforcement plates. All modifications comply with AAR S-532 and EN 15085-3:2021.
| Reinforcement Zone | Material Specification | Inspection Protocol |
|---|---|---|
| Rear Suspension Mount | S355J2 + 12mm Gusset Plates | Ultrasonic Thickness Testing (UT) |
| Frame Rail Joints | Full Penetration Welds (AWS D1.1) | Radiographic Testing (RT) 100% |
| Fifth Wheel Interface | Hardox 500 Overlay (8mm) | Dye Penetrant (PT) per ASTM E165 |
| Crossmember Connections | M24 Grade 10.9 Bolts (Torque-to-Yield) | Torque Verification (ISO 16047) |
Plastic deformation exceeding 3mm/m triggers full frame replacement. All welds undergo 100% visual + 20% NDT sampling.
3. SEA LION INSPECTION STANDARDS: ZERO-DEFECT MANDATE
SEA LION enforces 42 critical hold points (CHPs) where work halts until verification. Key differentiators:
- Metrology-Driven Tolerances: All dimensional checks use calibrated CMMs (ISO 10360-8:2020), not visual estimation.
- Material Traceability: Every replaced component logs heat number, supplier COC, and SEA LION QC stamp.
- Destructive Testing: 5% of weld samples undergo bend/impact testing per AWS B4.0.
- Dynamic Validation: Final 50km road test includes 30% grade climb at 85% GVWR with real-time strain gauge monitoring.
- Failure Rate Benchmark: ≤ 0.8% field failures at 6 months (vs. industry avg. 4.2% for non-certified refurb).
Units failing any CHP are quarantined for root cause analysis (RCA) per SEA LION Corrective Action Protocol (CAP-2026).
4. OPERATIONAL READINESS CERTIFICATION
Upon successful completion of RDTRS-2026, units receive:
– SEA LION Reconditioned Asset Certificate (SRAC-2026) with full traceability log
– 12-month/20,000-hour limited warranty covering powertrain and structural integrity
– Digital health report showing pre/post-refurb baseline metrics (accessible via SEA LION FleetLink™ portal)
Note: Refurbished units are prohibited from sale if original frame VIN stamp is compromised or if ≥ 35% of structural components required replacement.
SEA LION International maintains AS9100:2016 and ISO/IEC 17025:2017 accreditation for heavy equipment reconditioning. RDTRS-2026 supersedes all prior refurbishment specifications.
Shipping & Logistics Solutions
Industrial Specification Report 2026
Document ID: ISR-SEA-2026-DT-001
Issued by: SEA LION International – Heavy Equipment Logistics Division
Target Audience: Fleet Managers, Construction Companies, Procurement Officers
Executive Summary
This report provides a technical evaluation of logistics solutions for exporting used dump trucks from China to global destinations. Three primary shipping methods—Roll-on/Roll-off (RO-RO), Bulk Cargo, and Flat Rack (Containerized)—are compared based on cost, transit time, equipment safety, and corrosion protection. Special emphasis is placed on wax-based anti-corrosion treatments to mitigate seawater exposure during marine transit.
1. Equipment Profile: Used Dump Trucks (China-Origin)
| Parameter | Specification |
|---|---|
| Typical Gross Weight | 30–50 metric tons |
| Dimensions (L×W×H) | 8.5m × 3.0m × 4.2m (avg.) |
| Drive Type | 6×4 or 8×4 |
| Fuel Reserves | Drained prior to shipment |
| Pre-Shipment Condition | Operational or non-operational (CIF terms) |
| Common Origins | Shanghai, Qingdao, Guangzhou, Tianjin |
2. Shipping Method Comparison
| Criteria | RO-RO (Roll-on/Roll-off) | Bulk Cargo (Loose Stowage) | Flat Rack Container (20’/40′) |
|---|---|---|---|
| Loading Mechanism | Self-propelled or towed onboard | Crane-lifted, stacked in hold | Lifted onto open-top flat racks |
| Capacity per Vessel | 100–300 units | 200+ units (mixed cargo) | 1–2 units per 40′ FR |
| Stowage Security | Chocked & chained on deck | Secured with lashing in hold | Lashed to FR frame with twist locks |
| Exposure to Elements | High (open deck) | Moderate (below deck, humidity) | High (fully exposed) |
| Transit Time (Asia-Europe) | 28–35 days | 30–40 days | 32–38 days |
| Port Infrastructure Req. | RO-RO ramp, clear approach | Heavy-lift crane (>100t) | Standard container crane (40t+) |
| Damage Risk | Low (if operational) | Medium (shifting, impact) | Low–Medium (if properly secured) |
| Average Cost (USD/unit) | $2,800 – $3,500 | $2,200 – $3,000 | $4,000 – $5,200 |
| Best For | Operational units, high volume | Non-operational, stripped units | Oversized or disassembled units |
3. Corrosion Protection: Wax Spraying Treatment
Marine environments expose heavy equipment to salt-laden air and condensation, accelerating corrosion on undercarriages, hydraulic systems, and electrical components.
Recommended Solution: Industrial Wax Spraying (Anti-Corrosion Coating)
| Feature | Specification |
|---|---|
| Application Method | High-pressure spray (airless) |
| Coverage Areas | Frame rails, suspension components, fuel tanks, radiator supports, weld zones |
| Coating Type | Solvent-based, hydrophobic synthetic wax (e.g., lanolin-infused formulations) |
| Thickness | 50–80 microns (dry film) |
| Salt Spray Resistance | >1,000 hours (ASTM B117) |
| Removability | Biodegradable solvents or hot water pressure wash |
| Application Timing | Pre-loading, in certified pre-treatment bays |
| Cost (per unit) | $180 – $250 |
Note: Wax treatment is mandatory for RO-RO and Flat Rack shipments due to prolonged exposure. Bulk cargo units benefit from partial protection but still require coating on critical zones.
4. Risk Assessment & Mitigation
| Risk Factor | RO-RO | Bulk Cargo | Flat Rack | Mitigation Strategy |
|---|---|---|---|---|
| Seawater Ingress | High | Medium | High | Wax spray + sealed electrical housings |
| Physical Impact | Low | Medium | Low | Proper lashing, corner bracing (FR) |
| Theft/Vandalism | Medium | Low | Medium | GPS tracking, port security audits |
| Delays at Destination | Low | Medium | Medium | Pre-cleared customs documentation (ATA Carnet) |
5. Recommendations by Use Case
| Customer Profile | Recommended Method | Rationale |
|---|---|---|
| Large Fleet Purchase (≥50 units) | RO-RO + Wax Spray | Cost-efficient, fast turnaround, scalable operations |
| Non-Operational/Rebuild Units | Bulk Cargo + Wax Spray | Lower cost, tolerates handling stress, ideal for scrap/remanufacture |
| Oversized or Custom Trucks | Flat Rack + Wax Spray | Accommodates dimensions beyond standard limits, secure lashing points |
| High-Value or Low-Hour Trucks | RO-RO or Flat Rack | Minimize mechanical stress; ensure cosmetic and structural integrity |
6. Compliance & Certification
All export shipments must comply with:
– IMSBC Code (for bulk)
– CTU Code (for containers/flat racks)
– RO-RO Safety Guidelines (IMO MSC.1/Circ.1352)
– ISPM 15 (for wooden dunnage, if used)
– Pre-shipment Inspection (PSI) per destination country (e.g., GCC, Africa)
Wax spray providers must issue Coating Application Certificates traceable to batch numbers and application logs.
7. Conclusion
For the export of used dump trucks from China, RO-RO shipping with industrial wax spraying offers the optimal balance of cost, speed, and protection for operational units. Bulk cargo remains viable for non-running units where cost is primary. Flat rack containers provide flexibility for non-standard dimensions but at a premium.
Proactive anti-corrosion treatment via wax spraying is non-negotiable for all methods and must be integrated into standard export protocols to ensure asset integrity upon delivery.
Prepared by:
SEA LION International – Technical Logistics Engineering
Revision: 1.0
Date: 2026-04-05

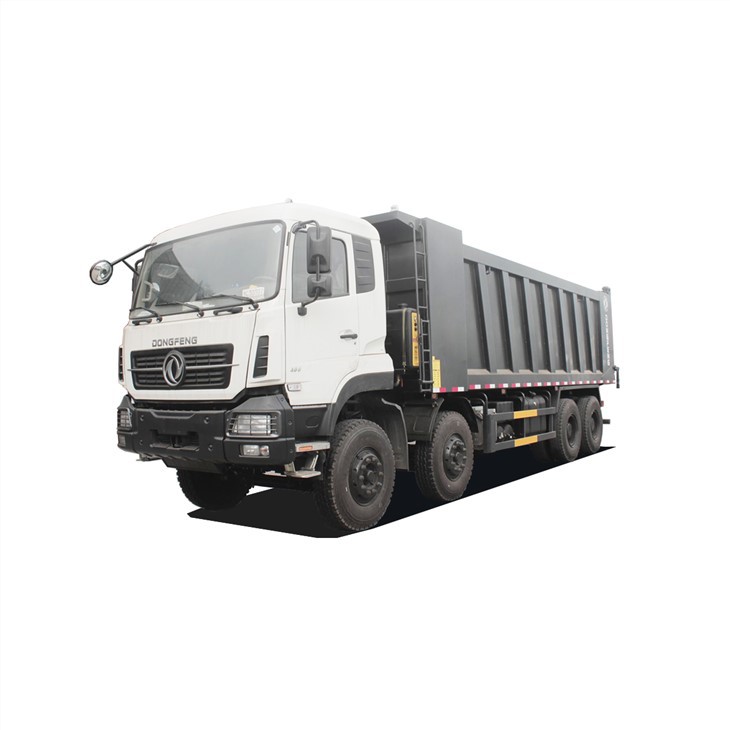

Get a Quote for Used Dump Truck China
SEA LION International Trade Co., Ltd – Authorized Heavy Truck Exporter (Since 2008).
👤 Contact Person: Mr. Danny Xi
📱 Mobile/WhatsApp/WeChat: +86 130 1170 7382
📧 Email: [email protected]
