Description

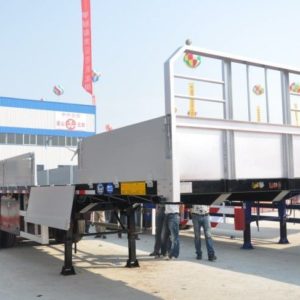

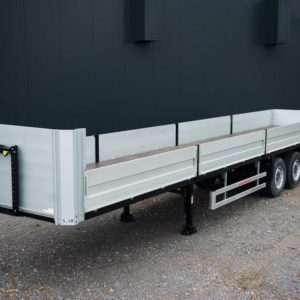

3 Axles Side Wall Cargo Truck Semi Trailer
Product Description
|
2 FUNCTIONS SEMI TRAILER AND SIDE WALL SEMI TRAILER |
|
|
DIMENSIONS |
|
| Tare weight | 13000kg |
| Size | 13000mm*3000mm*1250mm |
| Payload | 80T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width140mm;Middle Flange 10mm height 500mm;bottom flange18mm,width 140mm |
| Side beam | 20# channel steel(Q235) |
| Cross member | 12# channel steel(Q235) |
| Floor | 4mm checkered plate |
| Side waLL | 80MM |
| Front board | 80MM |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Tire | 445/45R19.5 China brand 6pcs |
| Wheel rim | 12.25 China brand 6pcs |
| kingpin | 2″/3.5″ bolt-in king pin |
| FLOOR AND SIDE WALL |
Checkered plate side wall 600/800 mm |
| Ladder | Mechanical ladder |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Without |
| Lights | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
| FOR MORE DETAILS PLS CONATCT WITH:
MOBILE/WHATSAPP:8613011707382 |
|
SHIPPING&PACKING
Detailed Images
Company Profile
Transactions
Our Services
We can do OEM&ODM,SKD,CKD, For more service or product details,pls contact with
