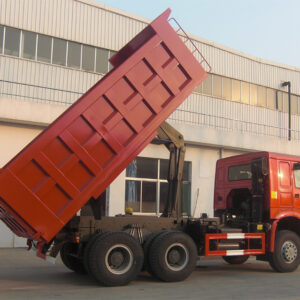

Sinotruk STR D7B 6×4 prices for tipper truck

Drive Wheel:6×4

Capacity (Load):11 – 20t

Horsepower:251 – 350hp

Condition:New

Transmission Type:Manual

Emission Standard:Euro 3

Fuel Type:Diesel

Engine Capacity:> 8L

Gross Vehicle Weight:25000

Place of Origin:Shandong, China (Mainland)

Brand Name:Sinotruk

Model Number:STR-D7B

Dimensions (L x W x H) (mm):8065/8265x2496x3500

Send Inquiry
SKU: 10031 Category: Tags: , , , , , , , , , , , , , , , ,
Description

Description

Sinotruk STR D7B 6×4 prices for tipper truck

Model 6×4 dump truck                                                                                   Based on Steyr technology
Cabin Four point s suspension Cabin with spring and air shock absorber, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper
Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model: WD615.47 STEYR technology(CNHTC)
Engine power 371HP/273kW
Displacement(L): 9.726liter (Euro 2 standard)
Max torque: 1450NM@1100-1600rpm
Bore/stoke: 126mm/130mm
Fuel consumption 198g/kW.h
Gear box CNHTC Max torque:1900NM
Model: HW19710
Speed: 10speed, 2reverse
Axle(front/rear)
Front axle HF9 STEYR technology front steering axle
Tandem HC16 STEYR technology double reduction hub reductor driving axle
Clutch D430 diaphragm type clutch
Brake Service brake: Dual lines air brake
Parking brake: Spring-Power drum brake
Engine brake: Engine exhaust brake(EVB)
Steering Power steering, driver sit at the Left hand side (LHD)
Electric  Equipment
Operating voltage: 24Vnegative grounded
Starter: 24V,5.4KW
Alternator 28V,758W
Battery voltage 12V/135Ah
Frame Strengthen steel frame, designed according to tough road condition.
Tyre 10+1 spare tyre with rim
12.00R20 radial tyre
Suspension system: Strengthen heavy duty Leaf spring type
Front/Rear 10/12
Dump body:     type of body :
Inside size of Body(mm): 5200x2300x1500, 8mm (floor)x6mm (side), made of high intensity steel
Lifting type: Middle lifter T type hydraulic system
Overall dimension(mm): 7934x2496x3450(Length x width x height)
Wheelbase 3825+1350mm
Track:
Front/Rear 2022/1830/130
Approach/Departure angle 19/23
Front /Rear overhang 1500/1870
Max speed 75km/h
Kerb weight: 12450kg
